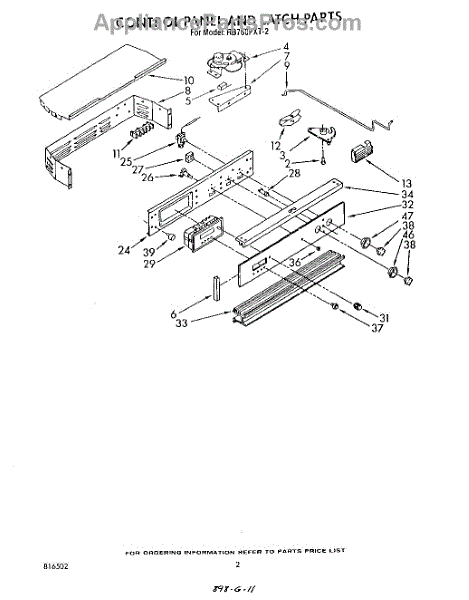

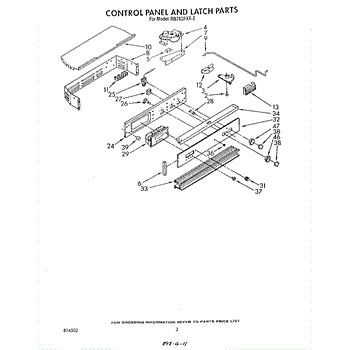

Parts for Whirlpool RB760PXT2: 02 - Section Parts

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Size: #9-15 x 1 inch long. Hex head.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

The Top Burner Control Knob is an OEM part for Whirlpool ranges. It is used to adjust the flame level of the top burners on your stove, ensuring precise control over cooking temperatures.

Causes of a bad burner control knob can include repeated use, which may wear down the internal mechanisms, accidental impact that can crack or break the knob, or exposure to high temperatures that can warp or damage the material.

Symptoms of a bad burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Inaccurate control over burner flame levels
• A loose or wobbly knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This selector switch escutcheon is the black trim plate that fits around the control knob on the console. It restores a clean, finished look and proper alignment around the switch when the original bezel is cracked, missing, or faded.

• Finishes the opening around the selector switch and protects the panel edges
• Helps the control area look clean and aligned with the knob
• Replace when the bezel is cracked, warped, missing, or discolored
• Cosmetic component; the switch itself may be faulty

• Disconnect power before servicing
• Pull the control knob straight off the switch shaft
• Release tabs or remove screws (as applicable), lift off the old escutcheon, and align/install the new one
• Reinstall the knob and restore power; verify smooth knob movement
