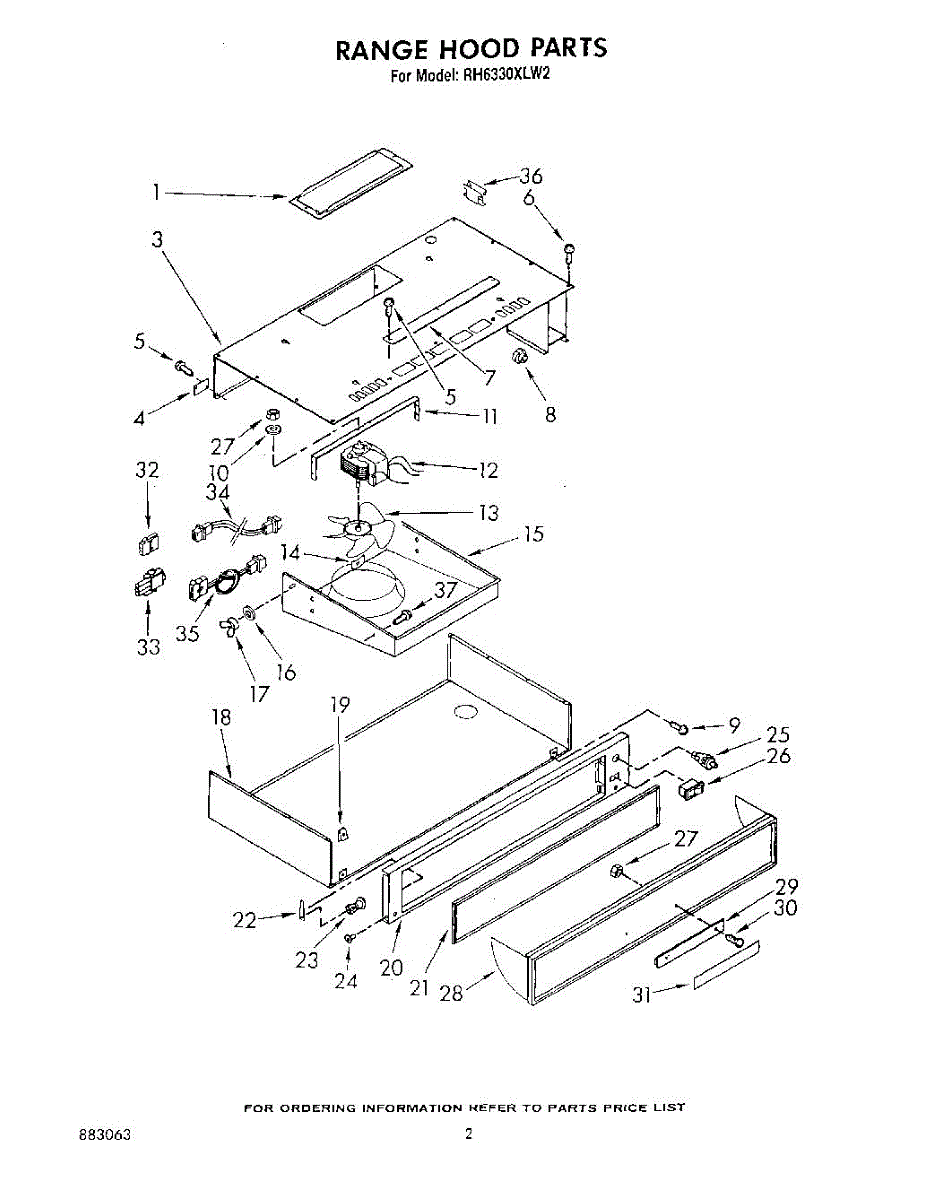

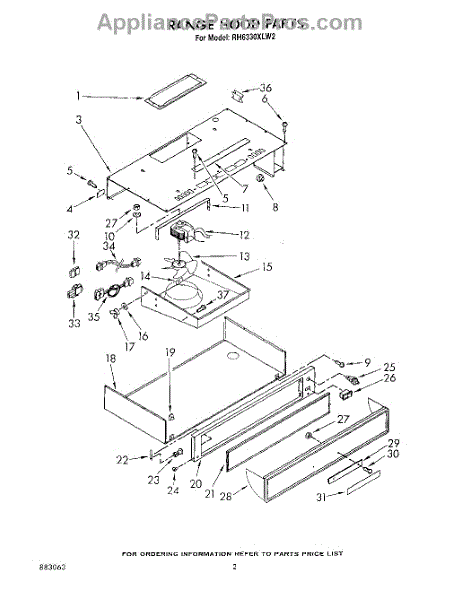

Parts for Whirlpool RH6330XLW2: 02 - Section Parts

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is the left hand hinge kit. This kit now includes the hinge, hinge housing, microswitch assembly, wire harness and instructions. For the right hand side order 00493360.

This rocker switch is a direct-replacement control switch that restores reliable on/off or function selection for appliance control panels. It installs into the control bezel to replace a worn, broken, or unresponsive switch. What it does:

• Provides a tactile on/off or mode-selection action for a control circuit
• Replaces a cracked, stuck, or intermittently-working rocker that won't engage functions
• Restores electrical continuity where a failed switch prevents a feature from powering on
• Works as the user-interface actuator on many Whirlpool control panels

• One rocker switch

• Disconnect power before servicing to avoid shock or damage
• Access may require removal of the control panel or console; keep screws and fasteners organized
• Note wiring orientation or take a photo before disconnecting connectors to ensure correct reassembly
• Test the appliance function after installation; do not force the switch into place

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
