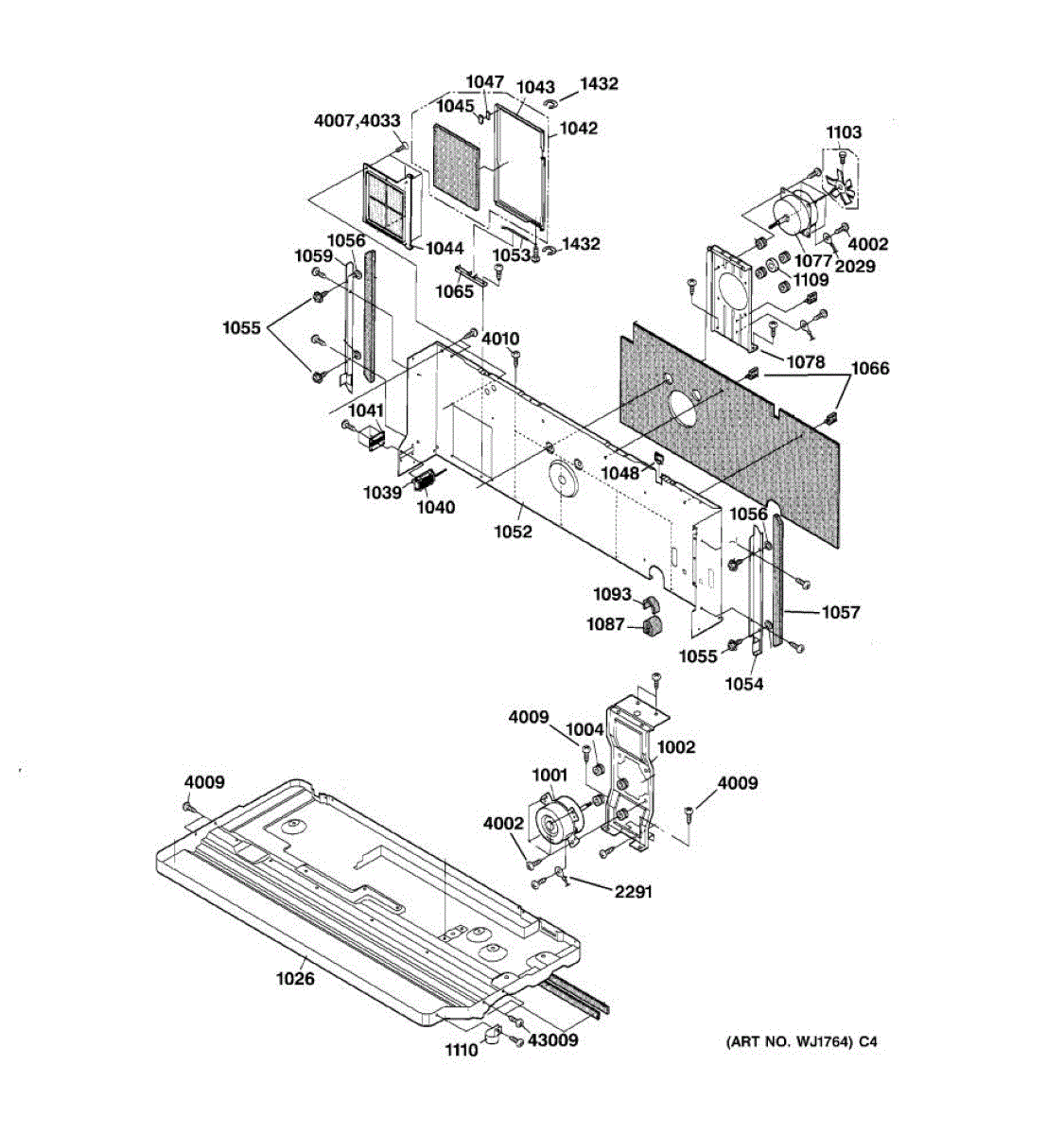

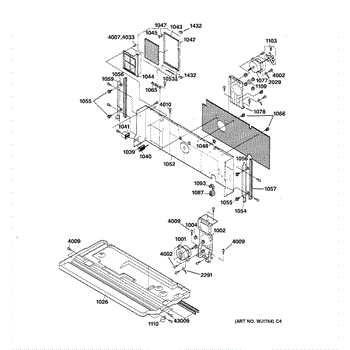

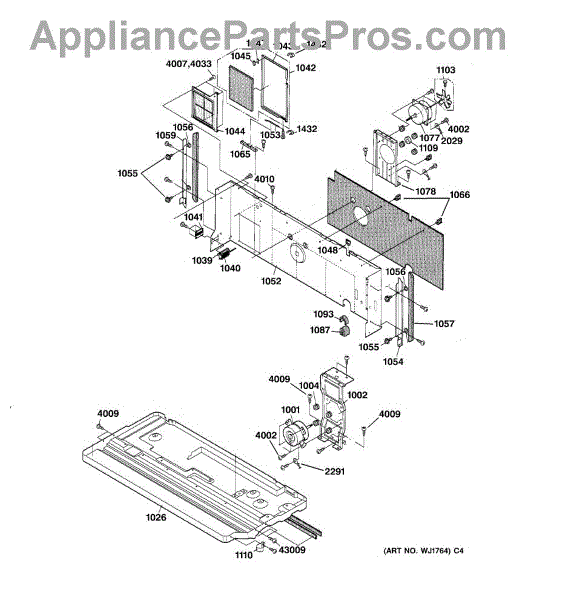

Parts for Ge AZ22E15D2CM1: 03 - Section3 Parts

This base pan assembly is the lower support pan that helps protect the appliance cabinet and catch minor leaks or debris. It restores the unit's stable mounting and helps keep internal components protected from spills. What it does:

• Provides the lower structural support for the appliance cabinet and components
• Channels and contains incidental water or debris away from electronics and controls
• Helps maintain proper alignment and stability of the appliance on the floor
• Reduces vibration transfer and helps prevent direct contact between components and the floor

• One base pan assembly as shown

• Disconnect power and water before beginning
• Check for secure mounting points and replace any worn fasteners or grommets during reassembly
• Inspect surrounding seals, hoses, and mounts for damage while the appliance is open
• Use manufacturer-recommended hardware and follow OEM disassembly/reassembly steps

This wire fixing band is a small retainer clamp that secures wiring harnesses and individual wires to appliance chassis to prevent rubbing, pinching, or accidental disconnection. It helps protect wiring from damage and reduces electrical faults. What it does:

• Holds wiring harnesses and loose wires in place to prevent contact with hot or moving parts
• Reduces wear from vibration and movement that can cause frayed insulation or shorts
• Helps maintain safe routing of wires to avoid pinch points and strain on connectors
• Commonly used where a simple clipped band or strap is needed to fasten wires to sheet metal

• Inspect surrounding wiring and connectors before installation; replace damaged wires or insulation
• Secure the band to the designated chassis hole or stud without over-tightening to avoid crushing wires
• Disconnect power before accessing wiring and follow all appliance safety procedures

This fan motor circulates cold air across the evaporator coil to help maintain proper refrigerator cooling and airflow. Replacing a failing motor restores consistent cooling and can stop abnormal noise or intermittent fan operation. What it does:

• Spins the evaporator fan blade to move cold air through the freezer and refrigerator compartments
• Helps maintain even temperatures and efficient heat exchange at the evaporator coil
• A worn or failed motor can cause loud whining, rattling, intermittent run/no-run behavior, or reduced cooling
• Restoring proper fan operation can reduce frost buildup on the evaporator caused by poor airflow

• One fan motor

• Disconnect power to the appliance before starting any repair
• Remove interior panels or the evaporator cover to access the motor and fan blade; keep fasteners organized
• Handle the fan blade carefully to avoid bending; ensure correct blade orientation when reinstalling
• This motor is typically a sealed unit—do not attempt to disassemble or lubricate the motor; follow OEM service instructions
