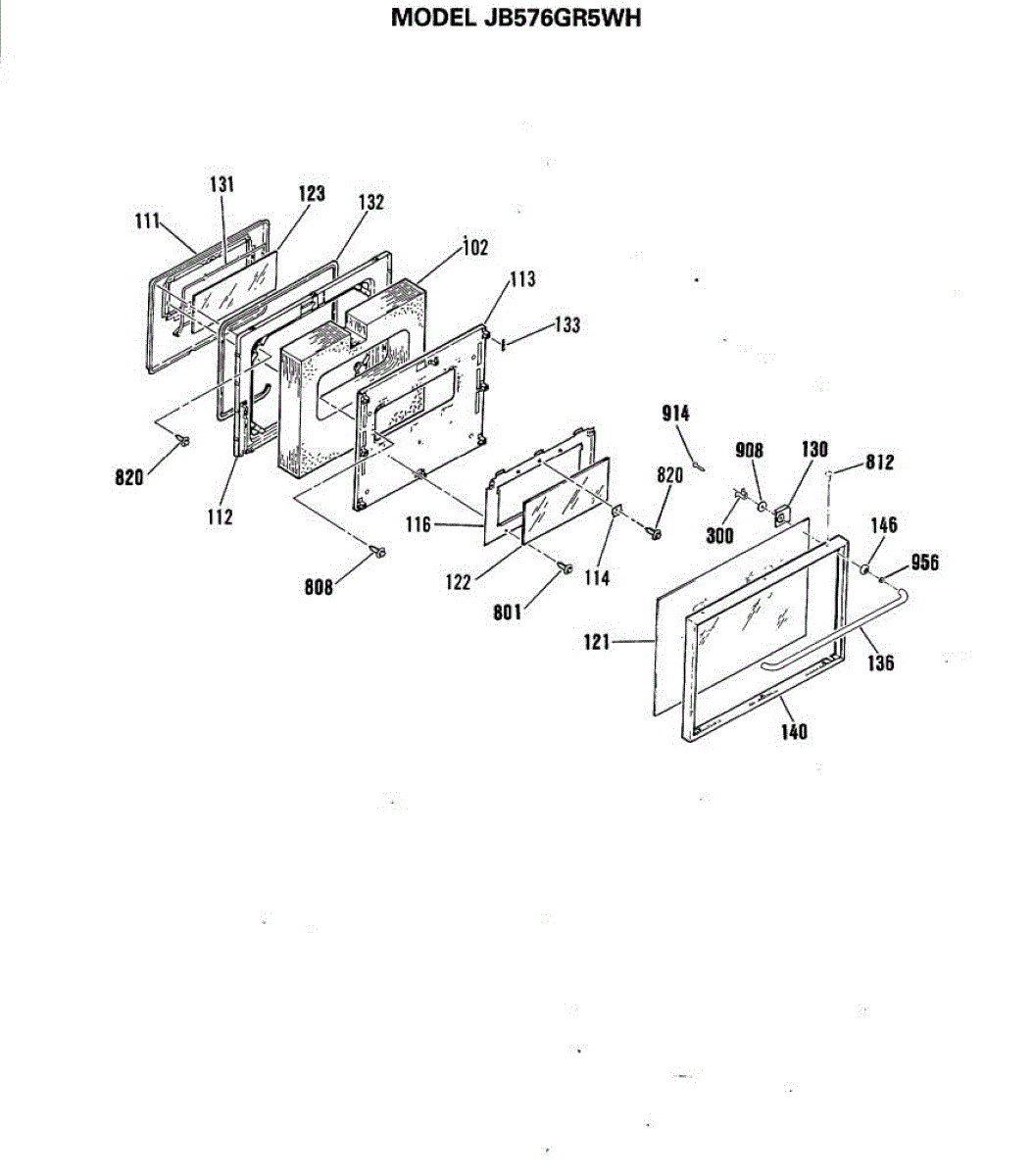

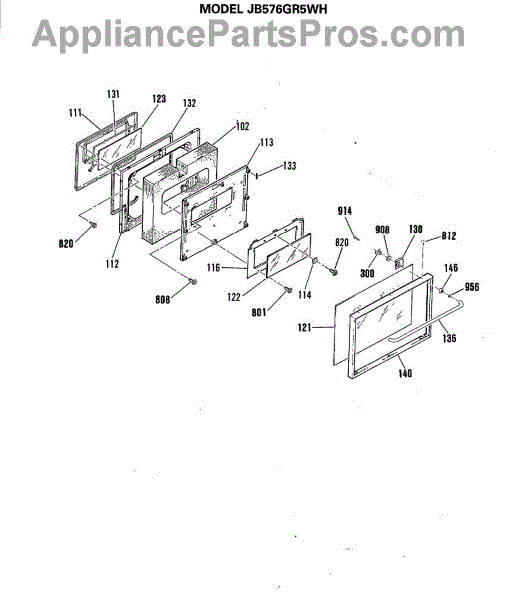

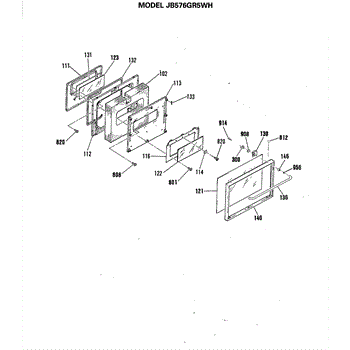

Parts for Ge JB576GR5WH: 03 - Section3 Parts

Color: White

This inner oven door glass seal cushions and seals the inner glass pane inside the door, helping contain heat and keep the glass stable and quiet. Replace a cracked or flattened seal to maintain safe, consistent oven performance.

• Seats and cushions the inner door glass panel
• Seals the perimeter of the pane to limit heat and air leaks
• Helps prevent debris and moisture between glass layers
• Can reduce rattling or shifting of the inner glass
• When worn, contribute to longer preheat times or temperature inconsistency

• Disconnect power; for gas ranges, also shut off the gas supply. Allow the oven to cool completely.
• Remove the door and separate the inner panel per your service instructions.
• Note the seal's routing and orientation; install the new seal without stretching or twisting.
• Wear cut-resistant gloves and handle glass carefully during reassembly.

This replacement oven door gasket forms the heat-resistant perimeter seal around the door opening. Restores a tight seal to retain heat, support accurate temperatures, and reduce warm-air leakage for better baking performance.

• Creates the compressible seal between the oven cavity and door to keep heat in
• Helps the oven preheat efficiently and maintain even temperatures
• Reduces warm air and odors escaping around the door edge
• Common failure signs include fraying, flattening, gaps, longer preheat, or uneven baking

• Disconnect power and allow the oven to cool completely; wear gloves
• Open the door and remove the old gasket from its retainers/channels, noting clip locations and orientation
• Clean the groove/retainer; starting at the top center, press the new gasket in evenly without stretching and seat corners fully
• Close the door and check for uniform contact around the perimeter

This part has been discontinued and is no longer available.

ST10-16 X 7/16"

A single replacement screw used to secure appliance components and restore proper fit. This OEM-design fastener replaces a missing or damaged screw so panels, brackets, or small assemblies stay properly attached. What it does

• Fastens panels, brackets, or small assemblies to maintain component alignment and stability.
• Replaces stripped, corroded, or lost screws that cause rattling or loose parts.
• Restores secure connections that can prevent vibration noise or component movement.

• One screw.

• Disconnect power and unplug the appliance before starting any work.
• Match screw head type and length to the original before installation; use the correct driver to avoid stripping.
• Tighten snugly but avoid over-torquing, which can damage threads or parts.

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

Package of 12
