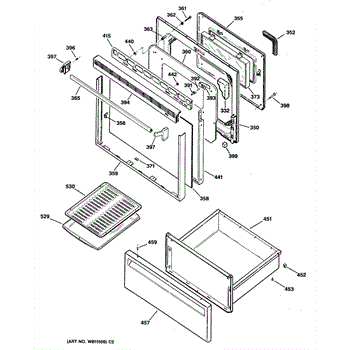

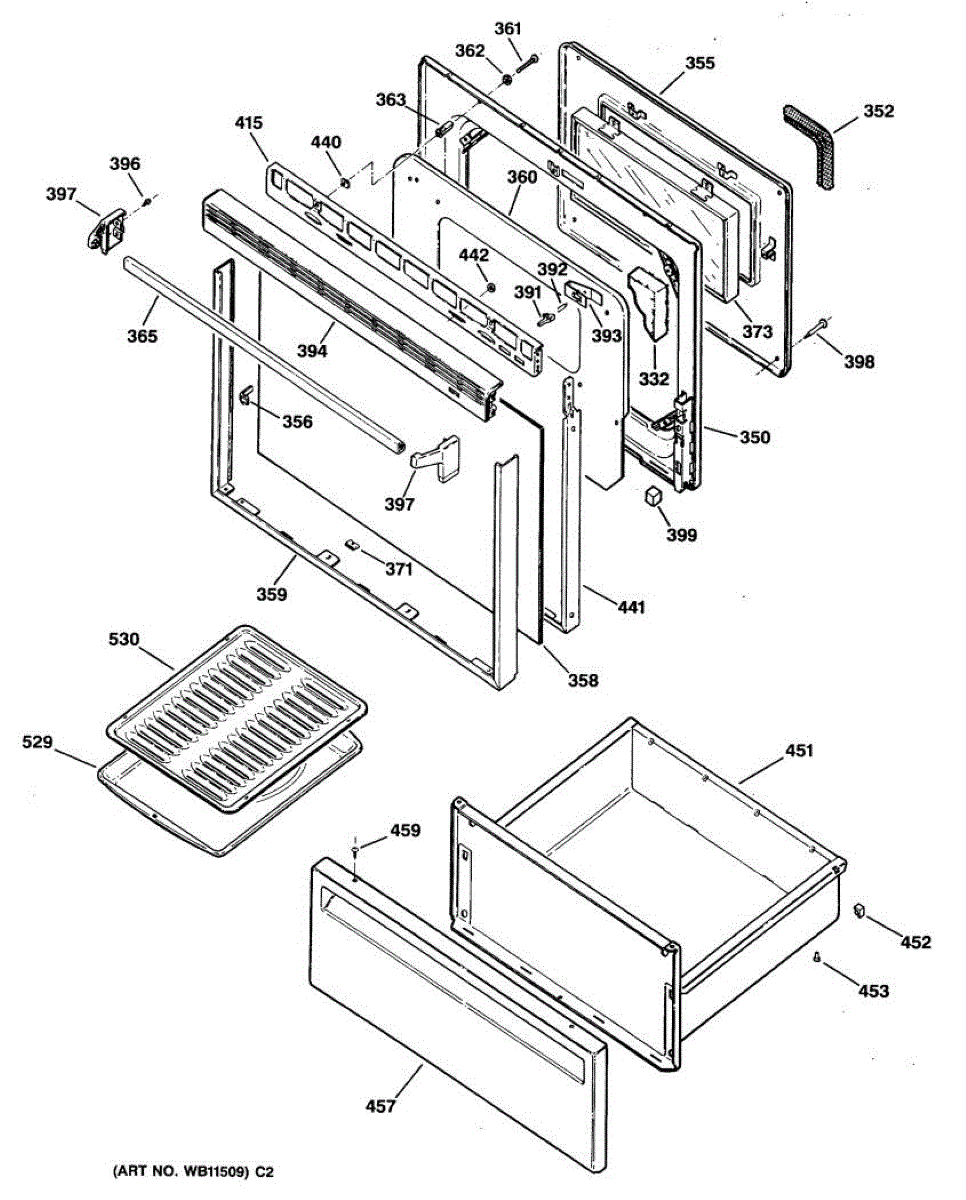

Parts for Ge JBP45GXR3: 03 - Section3 Parts

Includes 12 washers.

Includes 12 screws.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Seals oven door to contain heat and maintain cooking temperatures. Replace when frayed, flattened, or leaking heat. Confirm fit with your model number.

Inner door panel for electric ranges. Installs between the outer door and window. Replace if cracked, damaged, or discolored from heat exposure.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Replace the top door trim on your electric range. This cosmetic trim piece covers the upper door edge and may need replacement if cracked or damaged.

Endcap Kit - Contains (1) left hand (1) right hand endcap.

Mounting bracket secures the cooktop or range top to the cabinet frame. Replace if bracket is bent, cracked, or missing to properly support the appliance.

This small plastic button covers the electrical connection point where the range plugs into the wall outlet, located on the back of the unit. Replace if the button is cracked, missing, or doesn't properly cover the plug connection.
