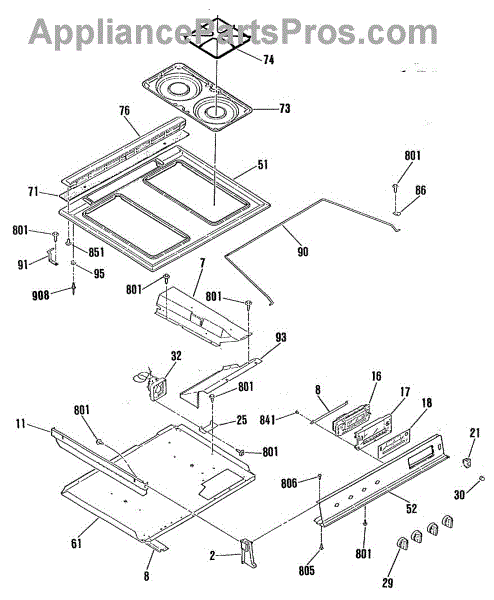

Parts for Ge JGSP20GEP2: 03 - Section3 Parts

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

The oven control board manages all electronic functions including temperature control, timer operations, and display functions. Replace when the display is blank, buttons don't respond, or the oven won't heat or maintain proper temperature.

Color: Black

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

This main top assembly replaces a damaged or worn cooktop top to restore a flat, secure surface for burners and controls. It helps maintain proper alignment and appearance for electric or gas ranges with a removable top. What it does:

• Provides the structural top surface that supports burners, grates, and control panels
• Restores a sealed, stable cooktop surface when the original top is cracked, dented, or warped
• Helps prevent heat or spills from reaching internal components when installed correctly
• Reduces rattling or misalignment caused by a bent or loose top

• One main top assembly

• Disconnect power (and gas supply for gas ranges) before beginning any work
• Handle edges carefully; surfaces can be sharp or heavy — get a helper if needed
• Installation typically requires removing burner assemblies, grates, and control panel fasteners
• Follow the manufacturer's instructions for proper alignment and sealing

Color: chrome. Measures about 9 inches wide by 19 inches deep.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

ST10-16 X 7/16"

Nickel
