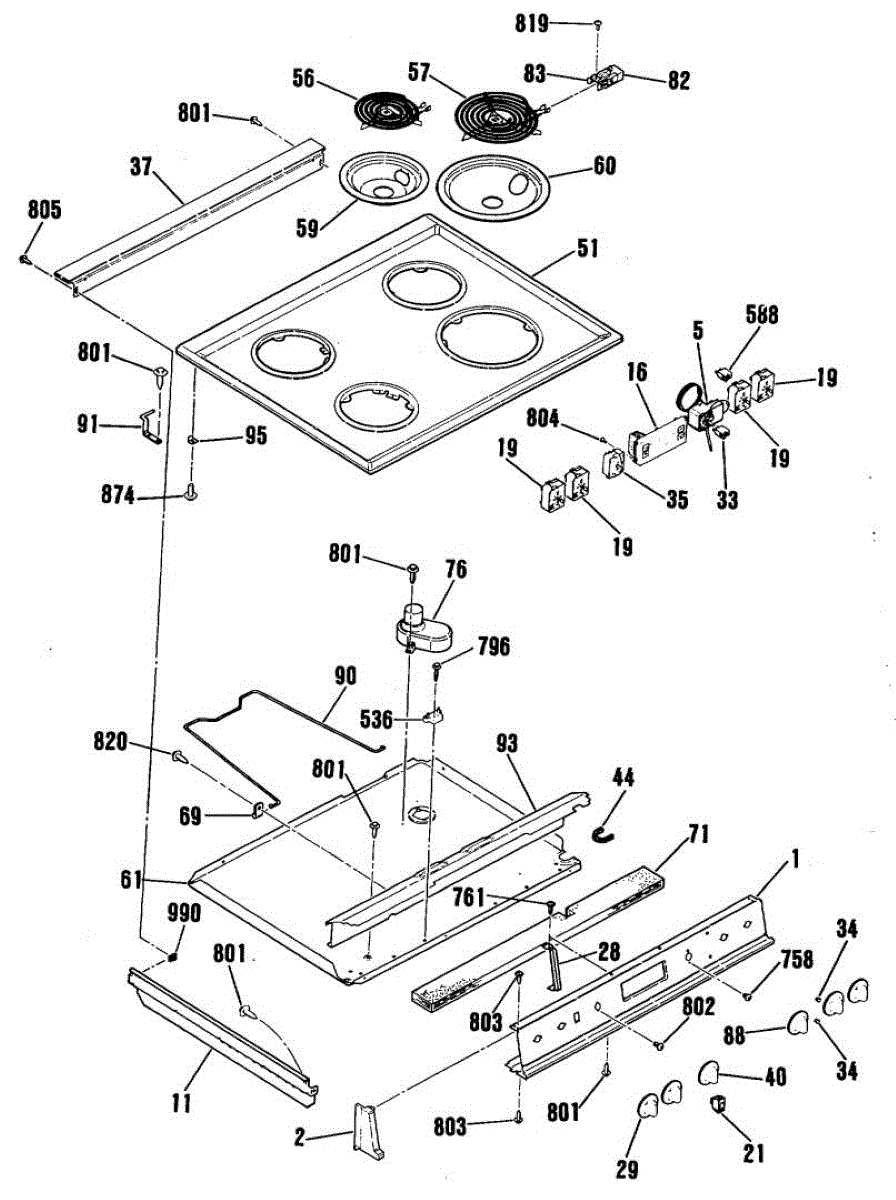

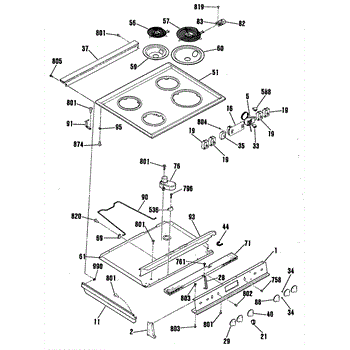

Parts for Ge JSS16P2WH: 03 - Section3 Parts

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a small replacement screw used to secure appliance panels and components, restoring proper fit and preventing loose parts. It's a direct-fit fastener commonly used in various GE appliance assemblies. What it does

• Secures trim, panels, brackets or control components to prevent movement and rattling.
• Replaces missing, stripped, or corroded screws that can allow gaps or vibration.
• Helps restore proper alignment of parts that can cause noise or loose-feeling doors/panels.

• Use the matching screw hole and thread; do not force or cross-thread the screw.
• Hand-start the screw, then tighten with the correct screwdriver to a snug fit—avoid over-tightening.
• Disconnect power before working near electrical components; follow appliance safety procedures.

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Nickel

Package of 12
