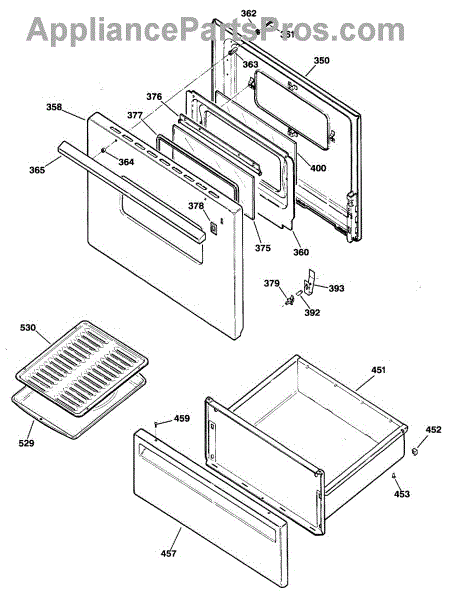

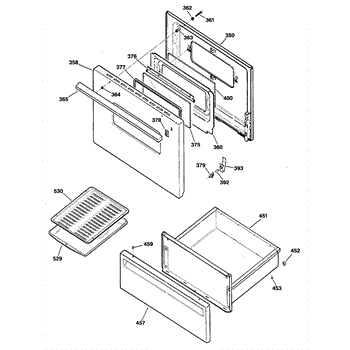

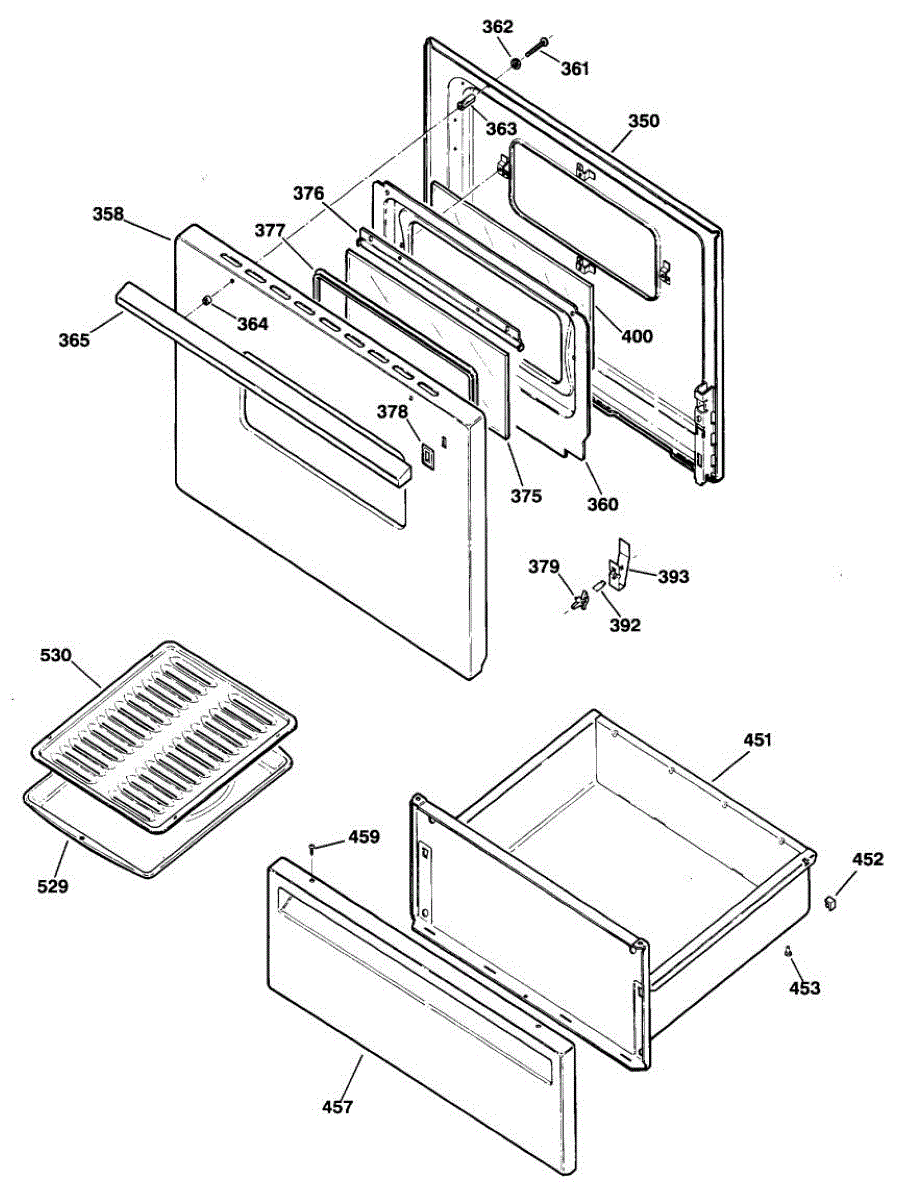

Parts for Ge RB636XR2: 03 - Section3 Parts

This inner oven door liner replaces a damaged or warped oven door interior to restore clean appearance and proper heat containment. Designed to fit the oven door assembly and support the inner glass panel. What it does:

• Replaces a cracked, dented, or heat-damaged oven door liner that can compromise appearance or sealing
• Provides a stable mounting surface for the inner glass and related door components
• Helps maintain proper heat containment and even cooking when the door assembly is sound
• Prevents metal edges from rubbing against the glass or insulation

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Handle inner glass and metal edges with care; wear gloves and eye protection
• Removal typically requires detaching the oven door and separating door panels—follow the oven's service manual

Includes 12 washers.

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges
