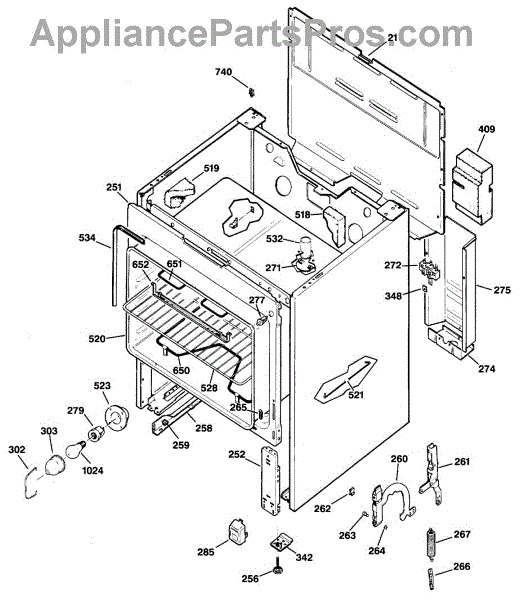

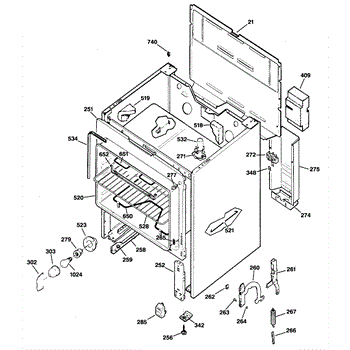

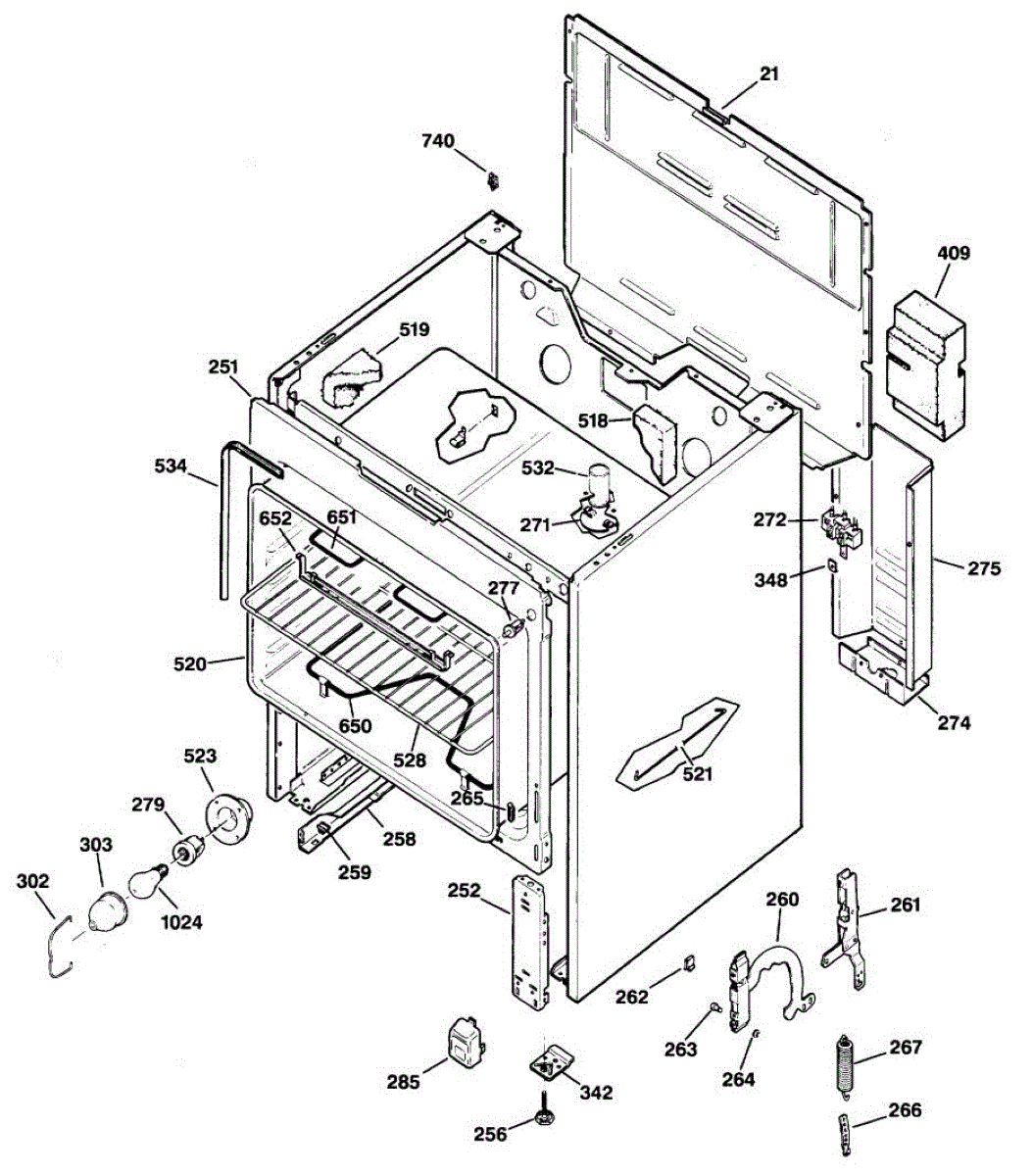

Parts for Ge RB636XR2: 02 - Section2 Parts

Right hand side

Left hand side

Clip for door hinge.

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven insulation replaces the thermal lining inside the oven cavity to help maintain proper cooking temperatures and reduce heat transfer to surrounding cabinetry. It restores the oven's thermal barrier for safer, more consistent baking and roasting. What it does:

• Provides thermal insulation between the oven cavity and outer cabinet to help retain heat during use
• Helps reduce heat loss that can cause longer cook times or uneven baking
• Dampens rattling or vibration from loose or damaged oven lining
• Supports proper oven temperature stability when installed correctly

• One oven insulation panel as shown

• Installation typically requires removing the oven door and accessing the cavity; follow OEM instructions
• Use gloves and eye protection; insulation fibers can irritate skin and lungs
• Ensure the oven is fully disconnected from power and cool before starting work
• Verify correct placement and secure mounting to prevent contact with heating elements

The Oven Rack is an OEM part for GE ovens. It is a fundamental component that provides a stable platform for placing baking sheets, pans, and other cookware inside the oven. The oven rack is designed to fit securely into the oven cavity, allowing for efficient heat circulation and even cooking.  It measures approximately 23” wide by 16” deep.

Causes of a faulty oven rack can include wear and tear over time, exposure to high temperatures or heavy loads, or damage due to accidental impacts. These factors can result in bent or warped rack wires.

Symptoms of a bad oven rack may include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or browning of food items
• Visible damage or deformation of the rack wires

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This silicone gasket creates a flexible, heat-resistant seal in range and oven assemblies. Replacing a deteriorated seal helps contain heat and moisture at joints and trim areas, protecting internal components and restoring proper fitment.

• Forms a durable, high-temperature seal between designated mating surfaces
• Helps prevent heat, steam, odors, and spills from escaping at seams
• Can help address visible gaps, leaks at edges, or looseness around trim/panels
• Restores the manufacturer-specified seal after service on affected components

• Disconnect power and allow the appliance to cool; turn off gas if applicable
• Remove old gasket/sealant and clean surfaces thoroughly; dry completely
• Position/install exactly as directed for your model; avoid stretching or over-compressing
• Follow model/service instructions for any required cure or set time before heating

The Oven Bake Element is an OEM replacement part for GE ovens. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity. Measuring 18 ¼ inches wide and 14 ½ inches deep to the mounting flange. It has an element extension of approximately 2 1/4 inches past the bracket to the terminals. This element is rated at 220 volts and 2300 watts.

Causes of needing to replace the bake element can include normal wear over time, electrical malfunctions, or physical damage from impact or excessive temperature fluctuations.

Symptoms of a faulty oven bake element include:

• Uneven baking or hot/cold spots within the oven
• The oven not heating up to the desired temperature
• Visible signs of damage or burnout on the bake element itself
• Unusual smells or burning odors coming from the oven

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models, ensuring a perfect fit and reliable heat generation for your specific appliance.

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
