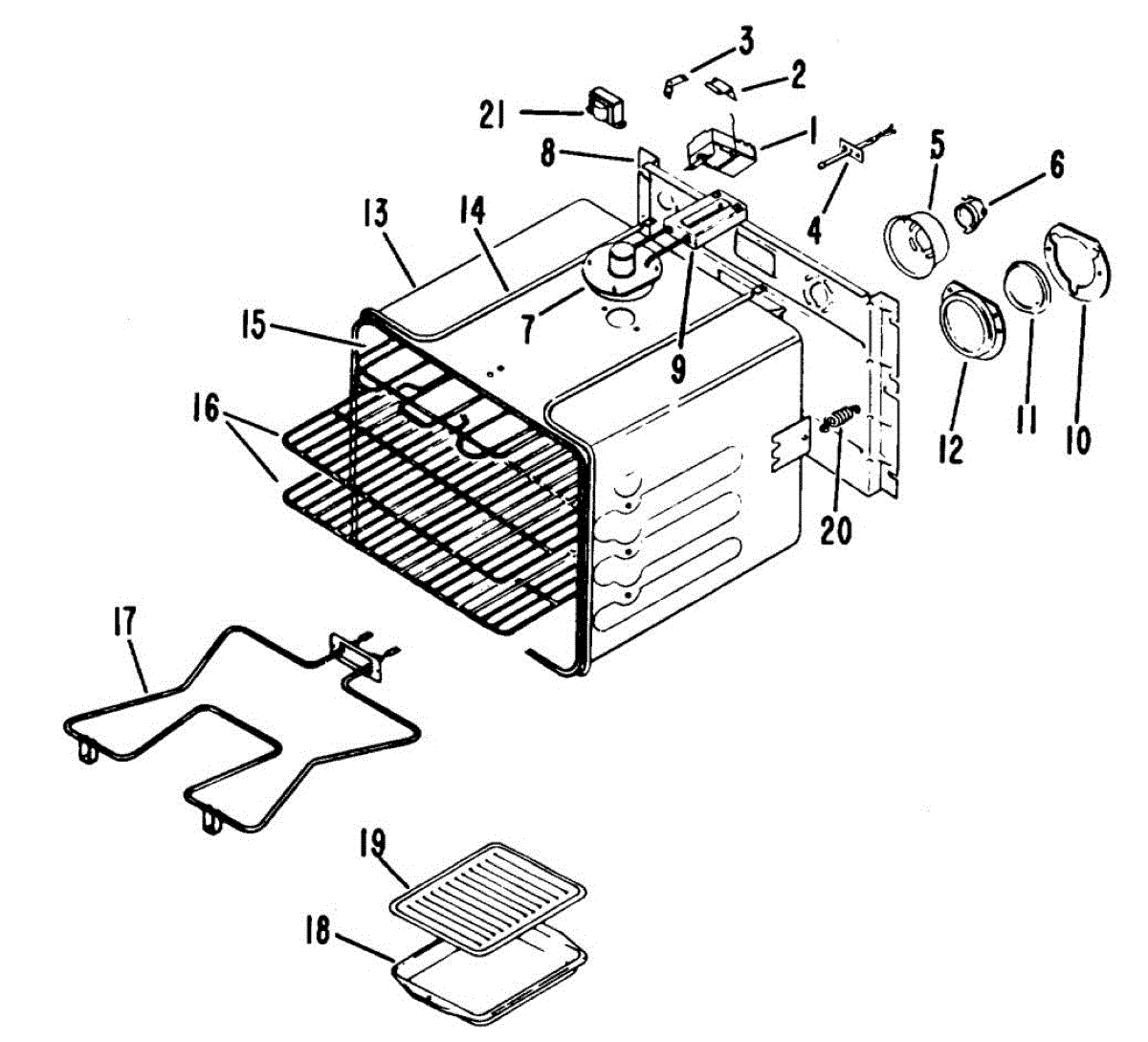

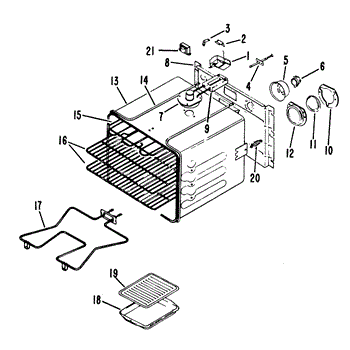

Parts for Ge RF764X04: 03 - Section3 Parts

Package of 12

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

Includes 12 washers.

Includes 12 washers.

This broil unit is the upper-oven heating assembly that provides direct high heat for broiling, browning and finishing dishes. Replaces a worn or failed broil element to restore proper broil performance. What it does:

• Produces the direct radiant heat used for broiling and browning food
• Replaces a visibly burnt, broken, or non-heating broil element
• Helps correct uneven browning or lack of upper-oven heat during broil cycles
• Works as the main heat source for the oven's broil function

• One broil unit assembly

• Disconnect power to the appliance at the breaker or unplug before servicing
• Allow the oven to cool completely; use gloves to protect hands from sharp edges
• Remove oven racks and access panel as required to reach the broil element
• Verify proper operation after installation

Package of 12

Aftermarket part replaces WB48X5012, which is no longer available.

Package of 12

This bake element heats the oven from the bottom during Bake mode. A failed element can cause no heat or slow preheat; replacing it restores reliable, even baking performance.

• Primary heat source during Bake; helps the oven preheat and maintain set temperature
• Common symptoms of failure: no heat in Bake, slow preheat, uneven baking
• Visual clues: blistering, cracking, or burn marks on the element
• If Broil works but Bake does not, the bake element is a likely cause

• Disconnect power at the breaker or unplug the range; allow the oven to cool completely
• Remove oven racks; unfasten the element's mounting screws and gently pull the element forward
• Support and disconnect the two wires; prevent them from slipping back into the oven liner
• Reconnect wires firmly, secure the element, restore power, and test Bake

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges
