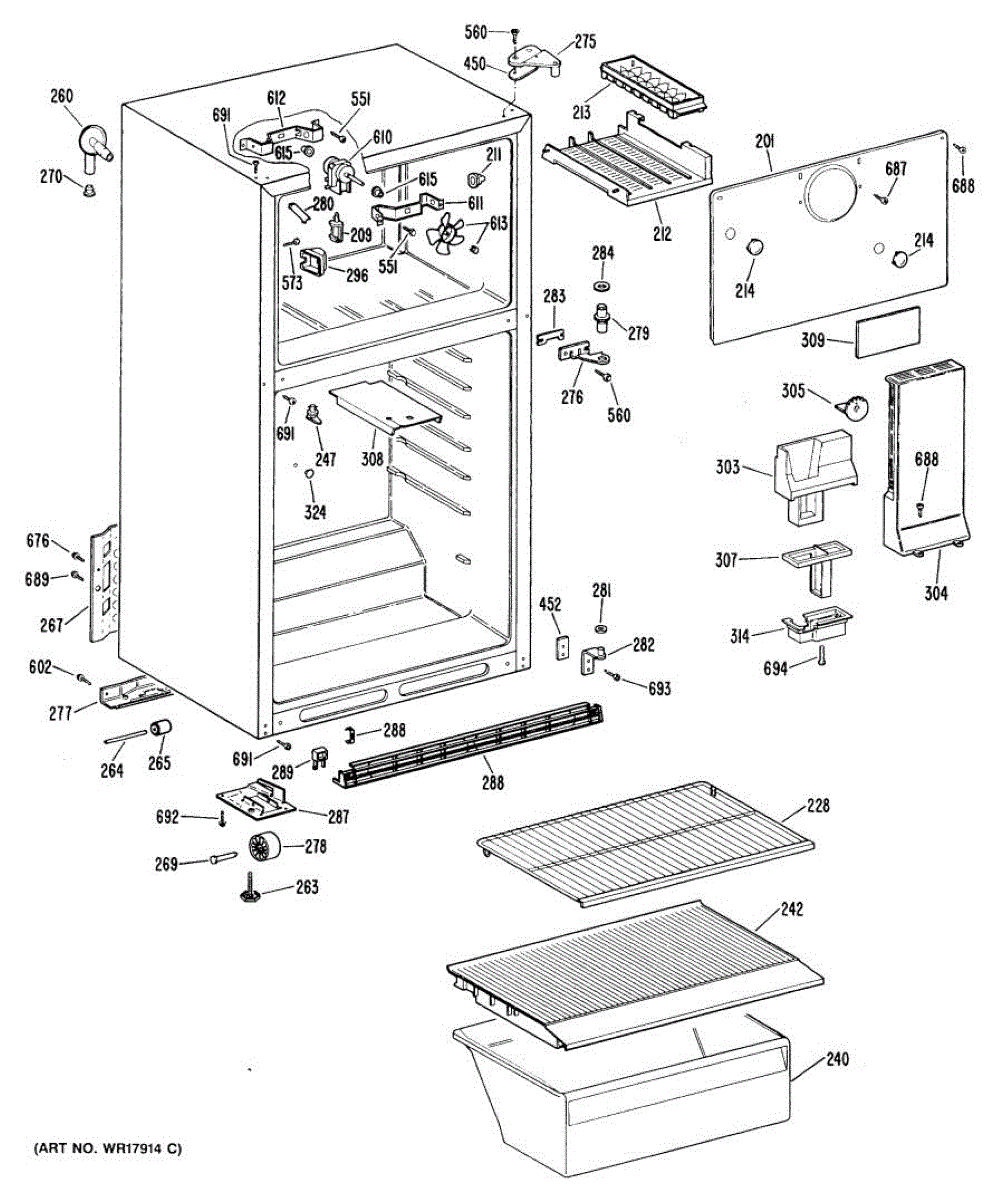

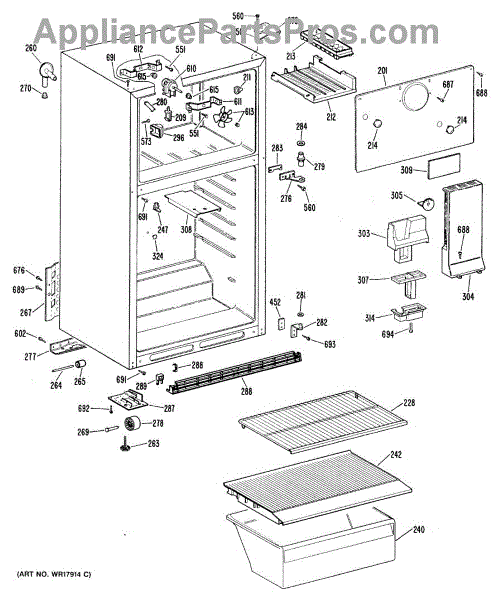

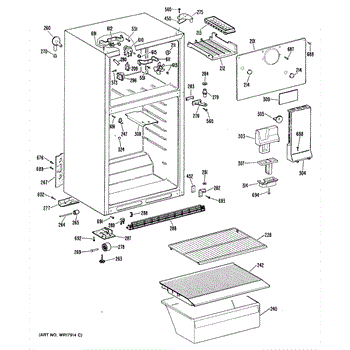

Parts for Ge TBE16SRJRHA: 03 - Section3 Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Shelf is an OEM part for GE refrigerators. It provides a stable and durable surface for storing food and other items within the refrigerator. The shelf is designed to fit seamlessly into the refrigerator's interior, maximizing space and organization. It measures approximately 25 inches wide by 14 inches deep.

Over time, the shelf can become damaged due to heavy loads, accidental impacts, or regular wear and tear. If you notice cracks, chips, or instability in the shelf, it is important to replace it to ensure safe and effective storage.

Symptoms of a bad shelf include:

• Cracks or visible damage
• Difficulty in keeping items stable
• Reduced storage capacity due to instability

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Crisper Pan is an OEM replacement part for GE refrigerators. It is white in color. This crisper drawer offers space for storing your fruits and vegetables. This pan measures approx. 22 7/8" X 14 7/16" X 6 5/8"

Causes of a bad part may include overloading the pan, dropping the pan, or using it improperly

Symptoms of a bad part include:

• Cracked or broken plastic
• Difficulty opening or closing the drawer

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. It is a crucial component designed to fit snugly over the vegetable or crisper drawers, helping to maintain the optimal humidity and temperature levels within these compartments. This white cover measures approximately 24 inches wide by 19 inches deep.

Causes of a bad vegetable pan cover can include physical damage, such as cracks or warping, or wear and tear over time, which can affect the cover's ability to seal properly.

Symptoms of a bad vegetable pan cover include:

• Wilted or dried-out produce in the crisper drawers
• Condensation buildup within the drawers or on the cover itself
• Difficulty in properly sealing or closing the cover
• Visible signs of damage or wear on the cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

This foam duct channels and insulates airflow inside the refrigerator, helping maintain even temperatures between compartments. Replace a torn, deformed, or missing duct to restore proper airflow and reduce warm spots, condensation, and inefficient cooling.

• Directs chilled air through the vent path for consistent cooling
• Helps seal the air passage to prevent leaks and temperature swings
• Failure can present as weak airflow, warm fresh food section, or frost/condensation near vents
• Visible damage such as crumbling, tearing, or misshaping indicates the duct should be replaced

• Disconnect power to the refrigerator before servicing
• Remove interior shelves/drawers and the relevant liner panel to access the duct; take a reference photo
• Carefully lift out the old foam, clean debris, and press the new duct fully into place so it seats and seals around the vents
• Reinstall panels and shelves, restore power, and allow up to 24 hours for temperatures to normalize

The Evaporator Motor is an OEM part for GE refrigerators. This air circulation is essential for maintaining the set temperature within the refrigerator and freezer compartments, ensuring your food stays fresh and frozen items remain solid.

Causes of a bad Evaporator Motor can range from wear and tear over time, which can degrade the motor's components, to electrical issues like short circuits or failed bearings, which can impede the motor's ability to function properly.

Symptoms of a malfunctioning Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator, indicating the motor may be struggling or has failed
• Frost build-up on the evaporator coils due to insufficient air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage
