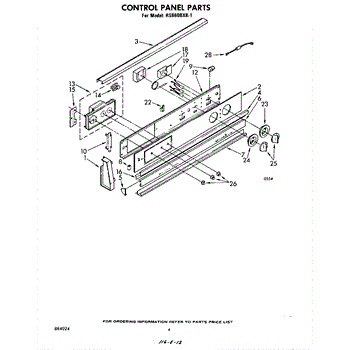

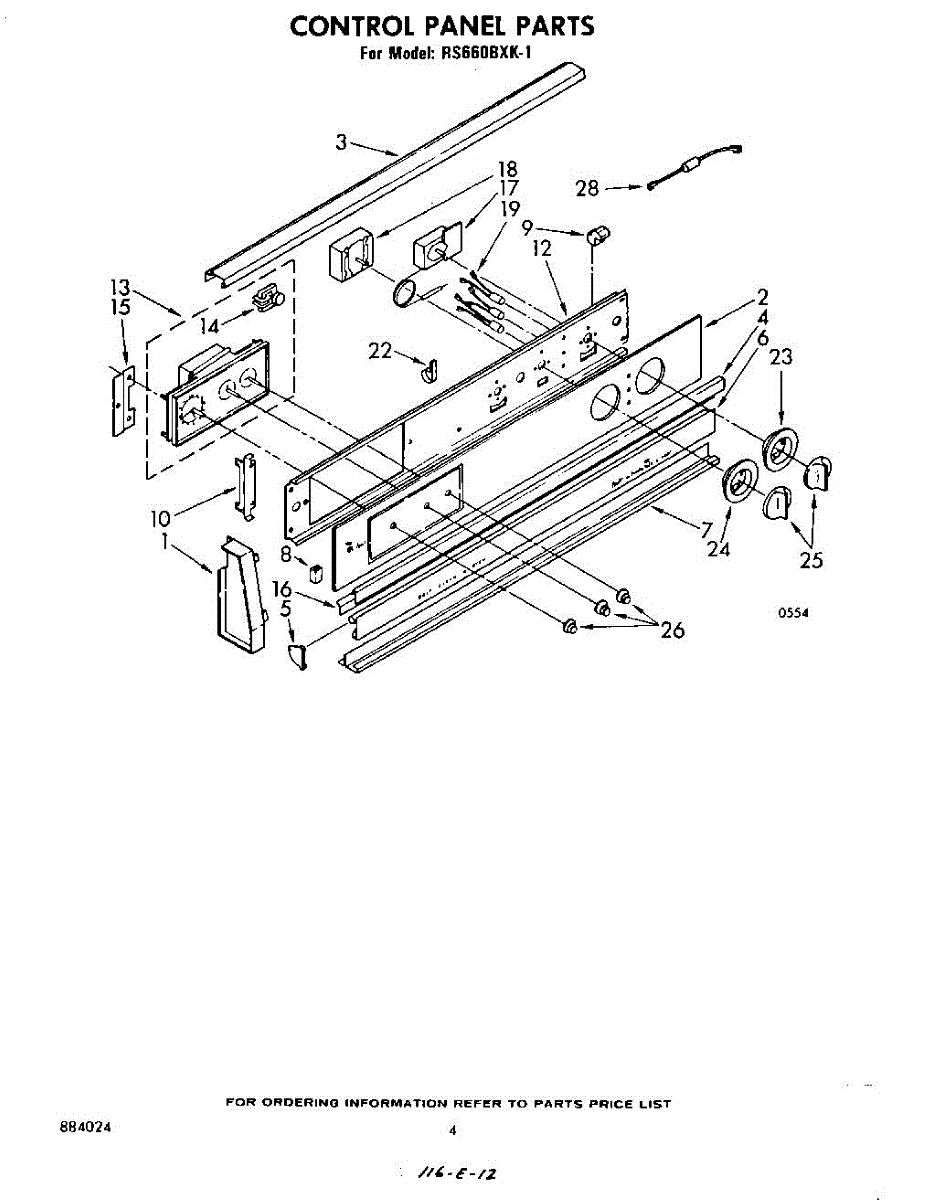

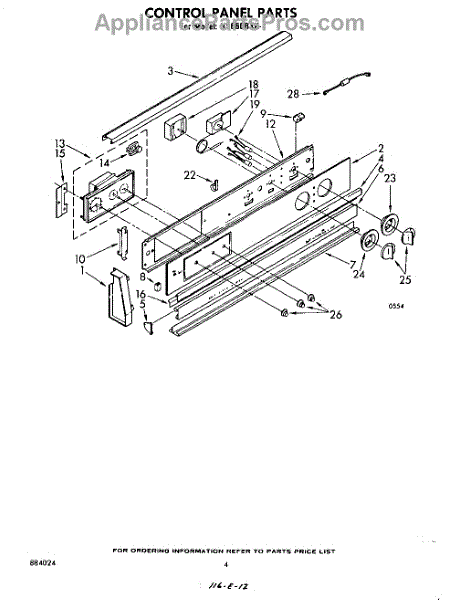

Parts for Whirlpool RS660BXK1: 03 - Section Parts

Size: 10-32 x 1/2 inch.

Size: 10-32 x 1/2 inch.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This insulating part provides thermal protection for internal appliance components, helping reduce heat transfer and protect wiring and nearby parts from heat-related damage. It's a simple replacement to restore proper insulation where worn or missing. What it does:

• Shields nearby components from excessive heat and helps maintain safe operating temperatures
• Protects wiring, connectors, and plastic parts from heat exposure that can cause melting or failure
• Helps reduce heat transfer that can worsen component wear or trigger thermal faults
• Commonly replaced when insulation is torn, brittle, scorched, or missing

• One insulating part as shown

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Verify the part position and orientation before removal; take photos to aid reassembly
• Use basic hand tools; avoid compressing or damaging the insulating material during installation
• If you see heat damage to wires or other components, inspect and replace those parts as needed.

This part has been discontinued and is no longer available.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This selector switch escutcheon is the black trim plate that fits around the control knob on the console. It restores a clean, finished look and proper alignment around the switch when the original bezel is cracked, missing, or faded.

• Finishes the opening around the selector switch and protects the panel edges
• Helps the control area look clean and aligned with the knob
• Replace when the bezel is cracked, warped, missing, or discolored
• Cosmetic component; the switch itself may be faulty

• Disconnect power before servicing
• Pull the control knob straight off the switch shaft
• Release tabs or remove screws (as applicable), lift off the old escutcheon, and align/install the new one
• Reinstall the knob and restore power; verify smooth knob movement

The Top Burner Control Knob is an OEM part for Whirlpool ranges. It is used to adjust the flame level of the top burners on your stove, ensuring precise control over cooking temperatures.

Causes of a bad burner control knob can include repeated use, which may wear down the internal mechanisms, accidental impact that can crack or break the knob, or exposure to high temperatures that can warp or damage the material.

Symptoms of a bad burner control knob include:

• Difficulty turning the knob
• The knob not staying in place
• Inaccurate control over burner flame levels
• A loose or wobbly knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
