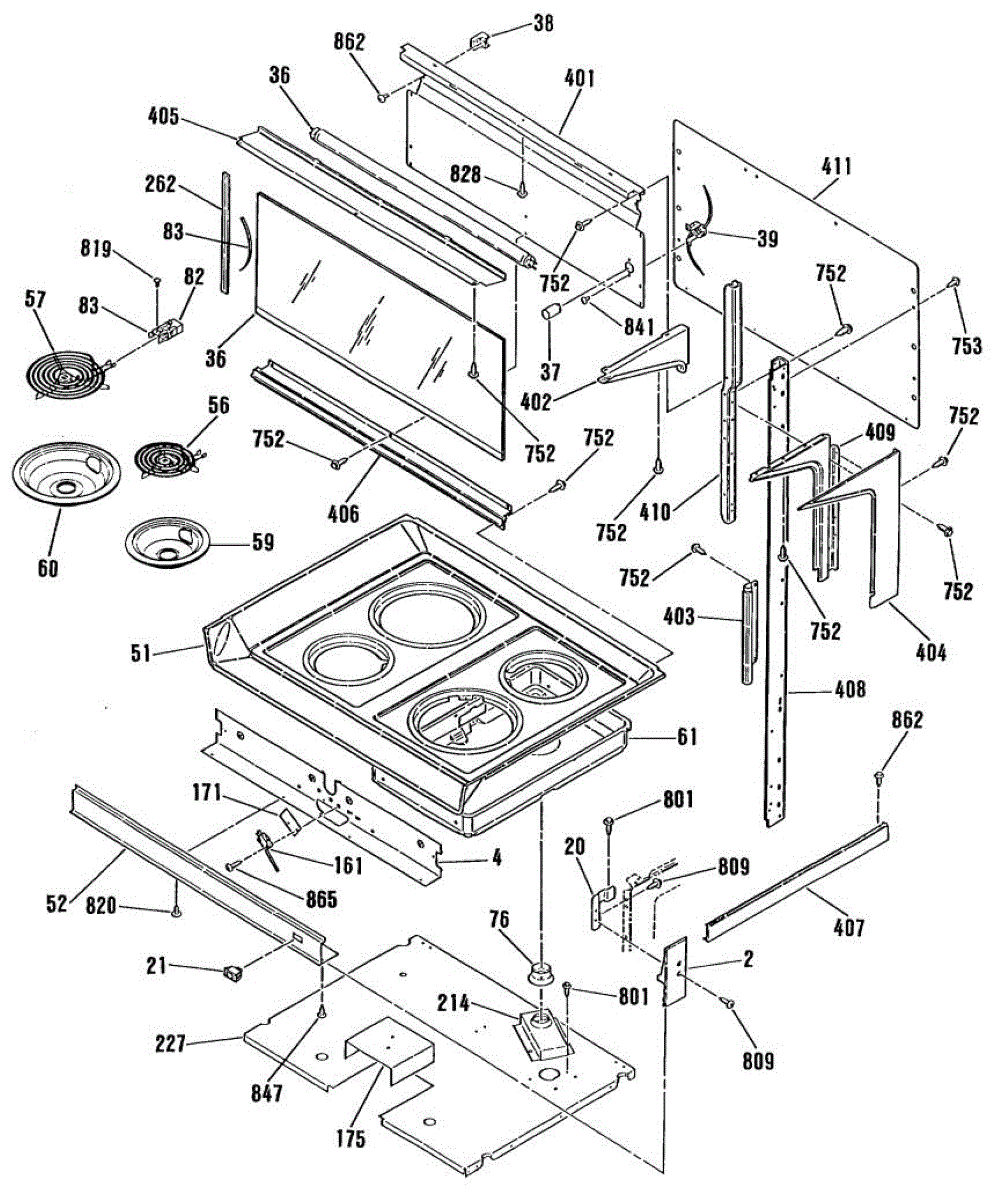

Parts for Ge JHP62GN1: 04 - Section4 Parts

Color: Black

This part has been discontinued and is no longer available.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Burner Bowl is an OEM part for GE electric ranges and stovetops. Designed to fit beneath the 6-inch electric coil elements, this burner bowl serves as a catchment for spills, drips, and crumbs that occur during cooking. Not only does it help keep the cooktop area clean, but it also reflects heat back to the cookware, improving cooking efficiency.

Causes for replacement often include accumulated spills and high heat exposure over time, leading to aesthetic wear and tear or functional degradation.

Symptoms of a bad 6 Inch Burner Bowl include:

• Rusting or corrosion that can affect the reflectivity and heat distribution
• Deep scratches or dents that may harbor bacteria and debris
• Discoloration or stubborn stains that can't be removed, affecting the appearance of your cooktop

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Designed to fit beneath the burner element, this part reflects heat back onto the cookware for efficient cooking and catches spills and drips to keep the cooktop clean. Made from durable materials, the burner bowl is easy to remove and clean.

Causes of a bad burner bowl include excessive heat exposure leading to discoloration or warping, accumulation of spills and debris that can corrode or damage the bowl, and physical damage such as dents or cracks.

Symptoms of a bad 8 Inch Burner Bowl include:

• Noticeable discoloration or warping from heat exposure.
• Rust or corrosion caused by accumulated moisture and debris.
• Difficulty fitting the bowl properly due to physical damage.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Porcelain. Color: black. It measures about 10 inches in diameter at its widest point at the top.

This left-side grease well collects drips and cooking grease from the cooktop to help keep the range surface cleaner and reduce flare-up risks. Durable formed metal matches the oven's grease-capture channel for reliable fit and function. What it does:

• Captures grease, oils and food drips from the burner area to prevent pooling on the cooktop
• Helps reduce the chance of smoke or minor flare-ups caused by accumulated grease
• Keeps the underside of the cooktop and adjacent trim cleaner for easier maintenance
• Provides the correct contour and mounting points to seat securely in the left grease channel

• Disconnect power and allow appliance to cool completely before servicing
• Remove cooktop or access panels per manufacturer instructions to reach the grease well area
• Slide or fasten the grease well into the left grease channel until it seats; retain or replace any clips or screws as needed
• Clean regularly with warm, soapy water; avoid abrasive cleaners that could damage the finish

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

Package of 12

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Nickel

Package of 12

This 8-32 thread screw fastens panels and components in compatible appliances, restoring secure mounting and stopping rattles or loose parts. Use it to replace stripped or missing fasteners and maintain proper alignment of covers and assemblies. What it does

• Secures panels, control boards, brackets, and accessory parts to the appliance chassis
• Restores proper fastening when original screws are missing, damaged, or stripped
• Helps eliminate vibration noise and loose-fit symptoms
• Matches common 8-32 appliance thread standards for a direct replacement

• One 8-32 thread screw

• Disconnect power to the appliance before beginning work to avoid shock or injury
• Use the correct-size Phillips or hex driver to prevent cam-out and head damage
• Install by hand first to engage threads, then tighten snugly—do not overtighten to avoid stripping

Nickel
