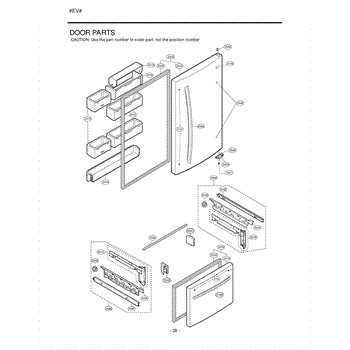

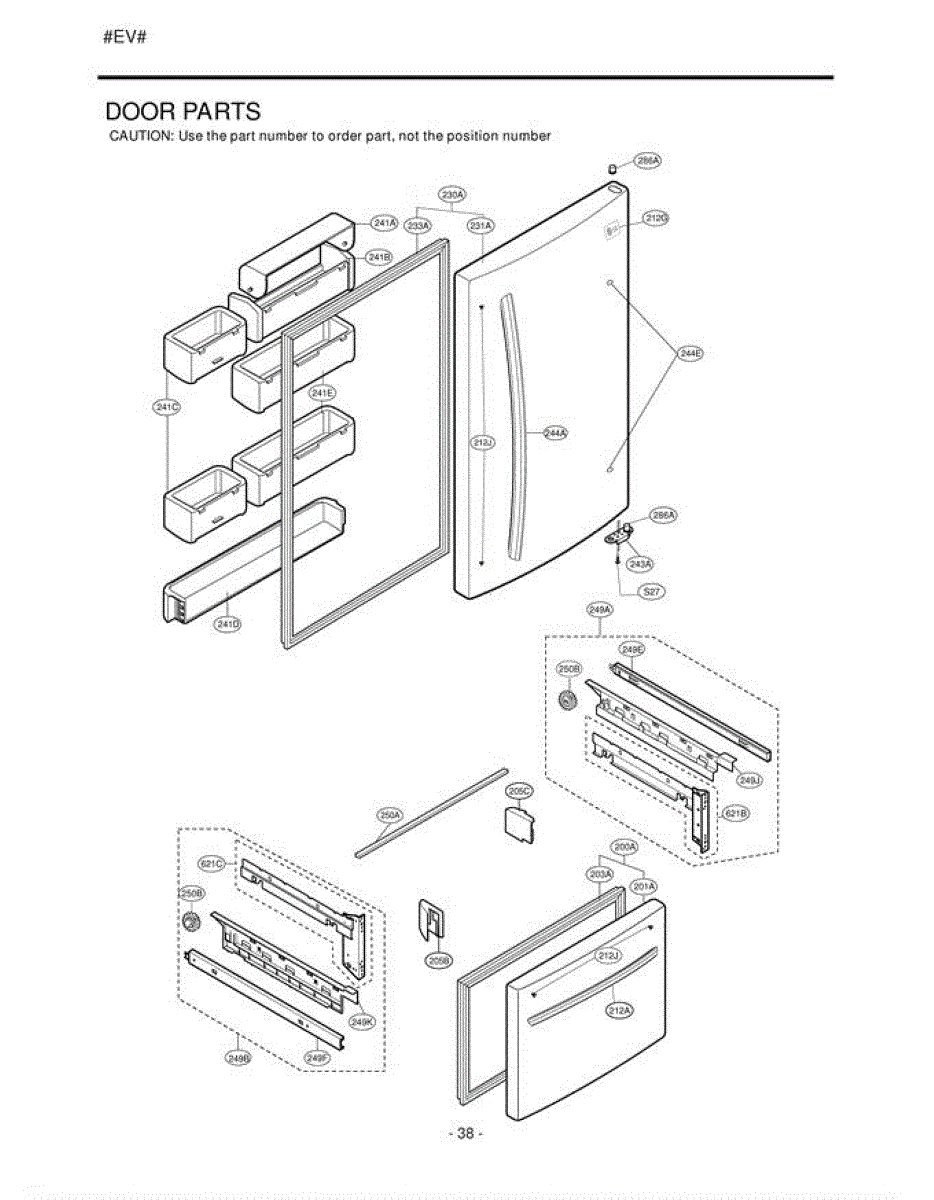

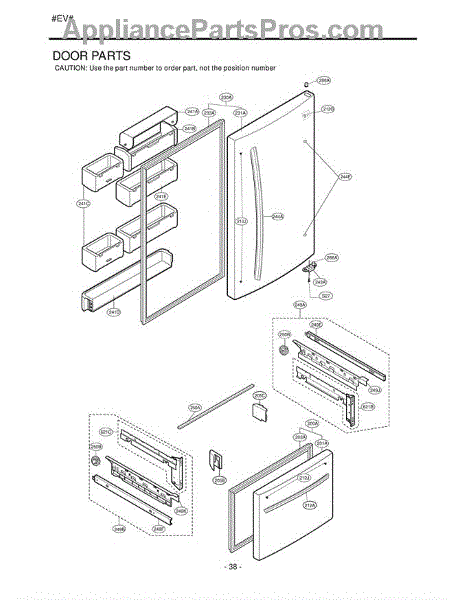

Parts for Lg LDC22720ST / ASTCLGG: Section 4 Parts

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

The Freezer Door Gasket is an OEM part for LG refrigerators. This gasket is designed to fit around the perimeter of the freezer door, creating an airtight seal that prevents warm air from entering and cold air from escaping. This ensures the freezer maintains a consistent temperature, which is essential for preserving food quality and reducing energy consumption.

Causes of a bad door gasket can include wear and tear from frequent use, exposure to harsh cleaning chemicals, or physical damage from sharp objects or accidental impacts.

Symptoms of a bad freezer door gasket include:

• The freezer door not closing properly
• Visible cracks, tears, or deformities in the gasket
• Frost or ice buildup inside the freezer
• Increased energy consumption due to the freezer working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This door gasket assembly forms the airtight seal around your refrigerator door. Replacing a torn or warped gasket restores proper temperature control, reduces frost and condensation, and helps the unit run efficiently.

• Creates a tight seal between the door and cabinet to keep cold air in
• Helps maintain stable temperatures and humidity inside the compartment
• Reduces frost buildup and condensation around the door perimeter
• Common signs it's failing: gaps, tears, hard/warped rubber, condensation, or frequent cycling

• Disconnect power before starting; open the door for access
• Warm the new gasket with hot water or low heat to relax folds—do not overheat
• Remove the old gasket from the retainer/channel; clean the groove thoroughly
• Press the new gasket fully into the channel (loosen retainer screws if present), ensure corners seat, then perform a paper-slip test and allow time for the seal to set

This door basket replaces a cracked or worn refrigerator door shelf to restore secure storage for bottles and small items. Durable molded plastic keeps contents organized and prevents spills on the door. What it does:

• Provides a stable shelf on the refrigerator door for bottles, condiments and small containers
• Replaces broken, cracked or loose door bins that allow items to fall or shift
• Restores proper alignment so the door closes without obstruction
• Matches OEM fit and mounting locations for a direct replacement

• Remove all food and items from the door before starting
• Lift out the old basket and snap the new basket into the same door track; no cutting or modification required
• Inspect door seals and surrounding trim during installation; handle edges carefully to avoid injury

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

This is the small trim cap that snaps over the end of a refrigerator door handle. It finishes the handle, covers the mounting hardware, and helps keep the handle secure and looking clean.

• Covers exposed door-handle screws and mounting points
• Restores a finished appearance if the original cap is missing or damaged
• May help reduce handle looseness if the old cap no longer held properly
• Common symptoms: missing end cover, visible handle screws, loose or rattling handle

• Unplug the appliance before starting and open the door for access
• Remove the old cap by gently prying at the seam; avoid scratching the door finish
• Align the new cap with the handle end and press until it snaps fully into place
• If required, tighten handle mounting screws before installing the cap

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This replacement door shelf bar secures items on a refrigerator door shelf, restoring proper storage and helping keep bottles and containers from sliding or falling when the door is opened. A simple, direct fix for broken or missing shelf retainers. What it does

• Holds door-bin items in place so bottles, jars and containers stay secure during normal use
• Replaces cracked, warped or missing shelf retainer bars that allow items to tip or fall
• Helps restore proper shelf function and usable door storage
• Designed to match the OEM fit and mounting points for a direct replacement

• Remove contents from the door shelf before replacing the bar
• Install by aligning with the shelf slots or mounting tabs and snapping or sliding into place per the original orientation
• Use gentle pressure to avoid damaging surrounding bins or trim; do not force metal parts
• Refer to your refrigerator's owner's manual for model-specific instructions and safety guidance

This connector secures and transmits motion between the drawer drive and the sliding assembly, restoring smooth drawer movement and alignment. It's a direct-fit replacement that helps fix sticking, slipping, or non-moving drawers. What it does:

• Couples the drawer drive mechanism to the sliding gear, allowing the drawer to open and close reliably
• Replaces worn or broken connector teeth or mounts that cause skipping or jammed operation
• Helps correct uneven or noisy drawer movement caused by damaged linkage
• Restores proper engagement so the drawer responds to normal open/close controls

• One connector as shown

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Inspect surrounding gears, tracks, and mounting points; replace any damaged parts for best results
• Basic hand tools are typically required; handle plastic gears carefully to avoid further damage

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.
