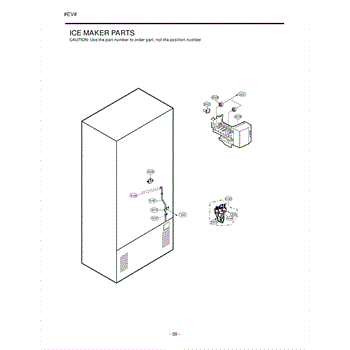

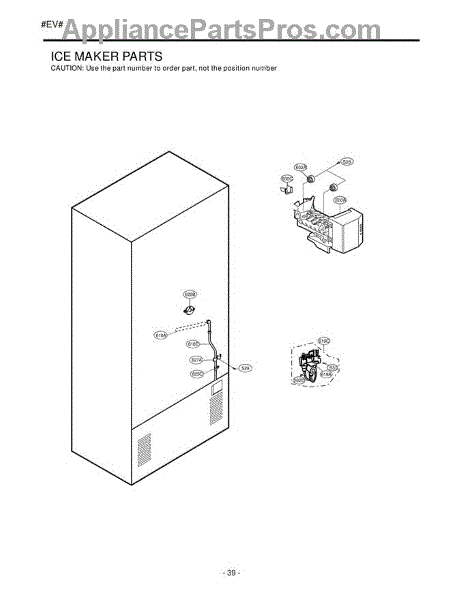

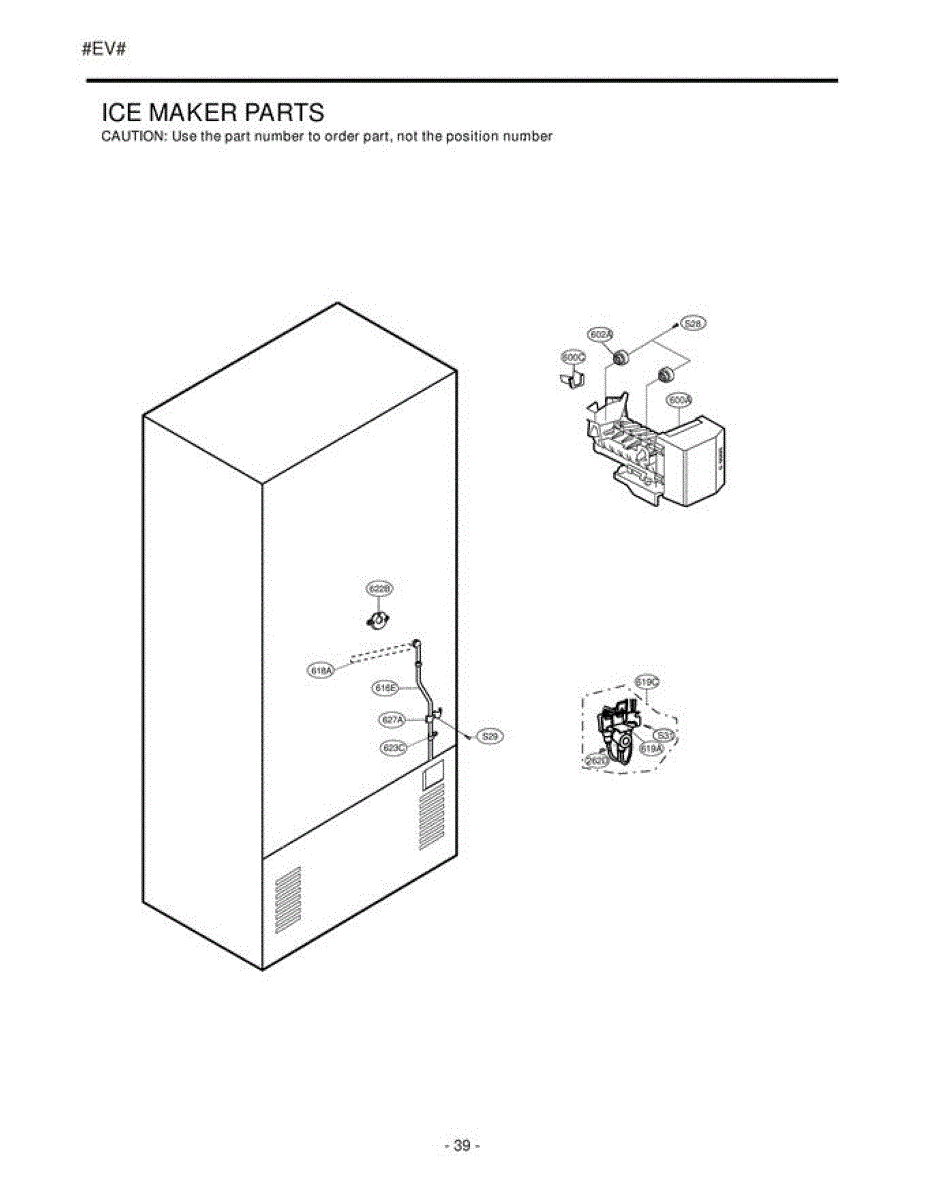

Parts for Lg LDC22720ST / ASTCLGG: Section 5 Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This guide tube is a small routing sleeve that supports and protects a rod, shaft, cable, or line inside your appliance. It keeps the path straight to reduce friction, noise, and premature wear.

• Guides and supports a rod/shaft/cable/tube through the chassis
• Maintains alignment for smooth movement or flow
• Helps prevent chafing, kinks, and vibration-related damage
• Typical failure signs: scraping or rattling noises, binding/misalignment, or visible cracks/deformation

• Disconnect power; turn off water or gas before servicing
• Refer to your model's parts diagram for routing and mounting points
• Reuse original screws/clips unless damaged
• Route exactly like the original; avoid pinches/kinks and verify clearances before restoring power

This injection tube routes water to the dispenser/spray assembly to restore proper wash flow and help improve cleaning performance. A direct replacement for damaged or clogged supply tubing in compatible LG appliances. What it does:

• Channels water from the inlet/dispenser area to the spray or dispensing assembly for proper wash cycles.
• Helps maintain correct detergent/water delivery so dishes wash and rinse evenly.
• Prevents bypass flow or misdirection that can reduce cleaning performance.
• Faulty or cracked tubes can contribute to leaks or poor wash results.

• Disconnect power and water supply before starting any repair.
• Remove access panels or kickplate as needed; support the appliance to avoid strain when disconnecting fittings.
• Inspect and replace any worn seals or clamps; seat the tube fully to mating fittings to avoid leaks.
• After installation, restore power/water and run a short cycle to check for proper flow and leaks.

This replacement injection tube routes water through the refrigerator's supply system to the ice maker or dispenser, as designed for your model. Replacing a cracked or kinked tube restores proper flow and helps prevent leaks.

• Channels water from the inlet circuit to its destination component (ice maker or dispenser, per design)
• Helps maintain a sealed path for clean, reliable water delivery
• Common symptoms: water leaking inside/behind the refrigerator
• Dispenser has slow/no flow
• Ice maker not filling or producing small/hollow ice; visible cracks, kinks, or brittle tubing

• Unplug the refrigerator and shut off the household water supply before servicing
• Note the original routing and connector types; transfer any reusable fittings or clamps from the old tube
• Insert the tube fully into existing connectors or onto barbed fittings and secure with the original clips/clamps
• Restore water, check all joints for leaks, then power on and test the dispenser/ice fill

This replacement water inlet valve controls the flow of water to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Designed to match OEM fit and function. What it does:

• Opens and closes to route water to the dispenser and ice maker when commanded
• Helps stop water flow when the dispenser is inactive to prevent leaks
• Commonly replaces failed valves that cause no water, weak dispensing, or continuous running
• Works as a direct-fit valve for compatible LG refrigerator units

• Disconnect power and shut off the water supply before starting work
• Handle connectors and tubing carefully; confirm tight, leak-free connections when reassembling
• Inspect and replace damaged inlet tubing or fittings as needed to prevent leaks

The Water Inlet Valve is an OEM part for LG refrigerators. It regulates the flow of water to the ice maker and water dispenser, ensuring they receive the correct amount of water needed for ice production and dispensing. This valve is critical for maintaining the efficiency and functionality of your refrigerator’s water systems.

Causes of a bad water inlet valve can include mineral buildup from hard water, electrical malfunctions, or general wear and tear over time. A faulty valve can disrupt water flow, leading to issues with both the ice maker and water dispenser.

Symptoms of a bad water inlet valve include:

• No water dispensing
•  No ice production
• Slow or irregular water flow
• Water leaks around the valve area

This OEM LG part is also compatible with Sears/Kenmore models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power
