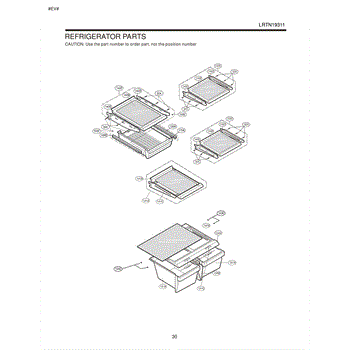

Parts for Lg LRTN19310BQ / ABICLGA: Section 4 Parts

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

This slide rail mounts inside the refrigerator and guides a storage drawer so it opens and closes smoothly. Replacing a worn or broken rail restores proper drawer alignment and easy access to stored items. What it does:

• Supports the drawer and provides a smooth glide path along the cabinet wall
• Maintains alignment to keep the drawer level and on track
• Replaces cracked, warped, or worn rails that cause rough, uneven movement
• Common symptoms: drawer binds or sticks, tilts or sags, falls off track, or shows visible rail damage

• 1 slide rail

• Disconnect power to the refrigerator before servicing interior components
• Remove the drawer and any shelf/glass cover to access the rail
• Save and reuse existing mounting screws and any end caps/brackets; match the rail's orientation to the original if your model uses left/right rails
• Align the new rail with factory mounting points, tighten screws, and test for smooth operation

This rail guide assembly helps align and support a sliding drawer or shelf so it opens and closes smoothly and stays on track. Replace a worn or damaged guide to restore proper drawer movement and reduce sticking or misalignment. What it does:

• Supports and guides a sliding drawer or shelf along the cabinet track
• Prevents drawer from binding, catching, or coming off the rail
• Restores smooth opening and closing and reduces noise from rubbing or scraping
• Helps keep drawer level and properly aligned during use

• Disconnect power and empty the drawer before starting any repair for safety
• Remove the drawer or shelf to access the guide, then unfasten retaining clips or screws as needed
• Align the new guide on the rail and secure it; confirm smooth operation before reassembling
• If clips or fasteners are damaged, replace them to ensure a secure fit

This rail guide assembly supports and steers a refrigerator drawer along its track. Replacing a worn or broken guide restores smooth sliding and proper alignment, helping prevent binding and damage to bins and rails.

• Guides the drawer as it opens and closes for smooth movement
• Helps keep the drawer level and properly aligned on the track
• Restores easy operation when the rail is cracked, worn, or deformed
• Typical symptoms: drawer hard to slide, tilts or drops, scraping/grinding noises, visible damage to the rail

• Disconnect power and empty the affected drawer before servicing
• Remove the drawer/bin and any screws or locking tabs securing the old guide
• Transfer any reusable clips or end caps from the old guide to the new assembly if present
• Reinstall, ensure proper engagement on the track, and test for smooth operation

This rail guide assembly supports and guides a refrigerator drawer so it slides smoothly and stays aligned. Replace a cracked or worn rail to restore easy opening/closing and keep the drawer from jumping off its track.

• Provides the sliding track and side support for one refrigerator drawer/pan
• Restores smooth movement and proper alignment of the drawer
• Can help resolve sticking, binding, tilting, or the drawer popping off the track
• Often needed when the rail is cracked, stop tab breaks, or wear causes rough travel

• Disconnect power and empty the affected drawer before service
• Remove the drawer (and any shelf above) for clear access; note the original side/orientation
• Release locking tabs or remove mounting screws to swap the rail; secure the new assembly in the same positions
• Reinstall the drawer and test for smooth travel before reloading

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

The Crisper Cover is an OEM part for LG refrigerators. This cover fits over the crisper drawers, providing a flat surface for additional storage and helping to maintain optimal humidity levels for the fruits and vegetables stored in the drawers below. The cover measures approximately 29 x 19 inches.

Causes of a bad crisper cover can include cracks or breakage from heavy items being placed on top of it, general wear and tear from frequent use, or damage due to impacts during cleaning or handling.

Symptoms of a bad crisper cover include:

• Cracks or visible damage
• Difficulty in fitting or aligning with the crisper drawers
• Reduced ability to maintain appropriate humidity levels in the crisper drawers

This OEM LG part is also compatible with Sears/Kenmore.

This replacement crisper glass is the clear shelf designed to sit over the refrigerator produce drawer, restoring a flat, stable surface for food storage and helping keep produce organized and visible. What it does:

• Replaces broken, cracked, or chipped crisper shelf glass to restore safe storage
• Provides a flat support surface for the crisper/produce drawer below
• Helps prevent items from falling into the drawer and improves visibility of contents
• Fits in the designated crisper opening and functions as the refrigerator's lower shelf glass

• 1 crisper glass shelf

• Handle carefully; glass can break—wear cut-resistant gloves and eye protection
• Remove food and drawers before replacing the glass; lift out old glass and set new glass into shelf rails or supports
• Do not force the glass into place; verify proper seating on rails to avoid shifting during use
• If damaged mounting clips or rails are present, replace them before installing the new glass

The meat tray assembly is the shallow deli drawer inside your refrigerator. Replace it to restore clean, organized storage and smooth sliding when the original bin is cracked, broken, warped, or missing.

• Provides a dedicated compartment for deli meats and cheeses beneath a refrigerator shelf
• Slides on shelf rails for easy access and organization
• Common failure symptoms: cracked or broken bin, damaged tabs, drawer won't slide or stay on tracks, or missing drawer
• Restores proper fit so shelves and doors operate without interference

• Unplug the refrigerator and remove items from the affected shelf area
• Pull the old deli drawer straight out; lift to clear the rails and remove
• Align the new tray with both tracks and slide it fully in until seated
• Do not force or overload; inspect shelf rails/supports for damage before reuse

The meat tray assembly is the shallow deli drawer inside your refrigerator. Replace it to restore clean, organized storage and smooth sliding when the original bin is cracked, broken, warped, or missing.

• Provides a dedicated compartment for deli meats and cheeses beneath a refrigerator shelf
• Slides on shelf rails for easy access and organization
• Common failure symptoms: cracked or broken bin, damaged tabs, drawer won't slide or stay on tracks, or missing drawer
• Restores proper fit so shelves and doors operate without interference

• Unplug the refrigerator and remove items from the affected shelf area
• Pull the old deli drawer straight out; lift to clear the rails and remove
• Align the new tray with both tracks and slide it fully in until seated
• Do not force or overload; inspect shelf rails/supports for damage before reuse
