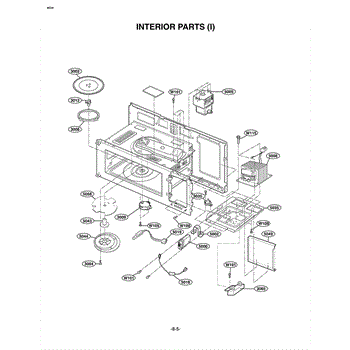

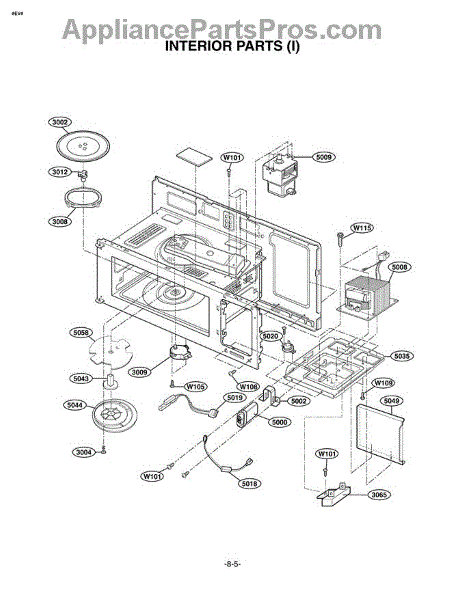

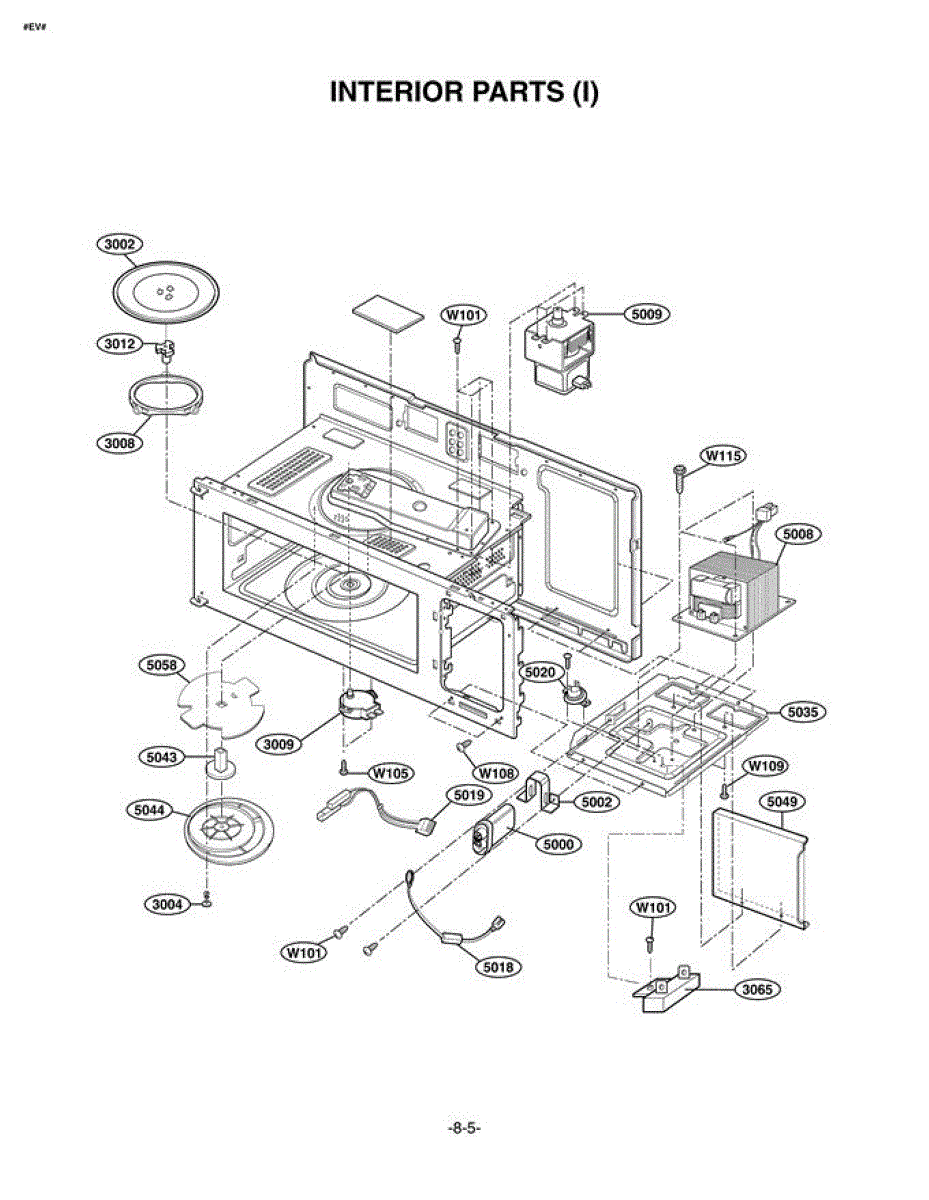

Parts for Lg MV-1525B / BKEGSE: Section 5 Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

This replacement screw fastens panels and components in your appliance, keeping them secure and aligned. Replace stripped, rusted, or missing hardware to stop rattles and ensure assemblies stay tight through everyday use.

• Secures covers, brackets, and internal assemblies at the specified mounting points
• Helps correct looseness or misalignment after a fastener is lost or stripped
• Can reduce rattling or vibration noises caused by loose fasteners
• Restores proper fit of panels or trim pieces

• Disconnect power to the appliance and shut off water or gas before servicing
• Match length and thread to the original fastener before installation
• Start threads by hand to avoid cross-threading; tighten only until snug to prevent damage
• Reuse any washers, spacers, or threadlocker originally installed at this location

The LG microwave glass tray is an OEM replacement part for LG countertop microwaves. Located inside the microwave cavity, the glass tray provides a flat, durable surface for cooking and heating food items. The tray measures about 13 inches in diameter.

Causes of a bad glass tray can include cracks or chips from impact damage, prolonged exposure to high heat levels, or chemical etching from acidic food spills.

Symptoms of a bad glass tray microwave include:

• Cracks, chips, or breaks in the glass compromising structural integrity
• Difficulty removing or placing the tray due to a poor sliding fit
• Food particles or liquids seeping below the tray and needing cleaning
• Visibility issues looking inside the microwave cavity

This OEM LG part is also compatible with Sears/Kenmore countertop microwave models.

This rivet assembly fastens panels, brackets, or covers inside the microwave cabinet. Replacing a damaged or missing fastener restores a tight fit, reduces vibration noise, and keeps mounted components properly aligned.

• Secures panels, brackets, or covers to the cabinet for a stable fit
• Use when a rivet is cracked, missing, or no longer holds
• Can help resolve rattling, buzzing, or loose panel movement
• Maintains proper alignment and support of mounted parts

• Disconnect power before servicing; support and remove over-the-range/built-in units for safe access.
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge—service should be performed by qualified personnel.
• Reinstall using existing mounting holes; ensure the rivet is fully seated and secure.
• Wear cut-resistant gloves and eye protection to avoid injury from sharp metal edges.

This turntable shaft (MH-8) connects the microwave's turntable motor to the glass tray hub so the tray spins for even heating. Replace it when the tray won't rotate, slips intermittently, or makes grinding/clicking noises.

• Couples the turntable motor to the tray hub to drive rotation
• Helps ensure even cooking and defrosting by keeping the tray moving
• Typical symptoms: tray not turning, intermittent/jerky rotation, grinding or clicking from the cavity floor
• Damage indicators: cracks, melted/rounded drive surfaces, or excessive wobble

• Disconnect power to the microwave at the plug or breaker before servicing
• Remove the glass tray and roller ring to access the shaft
• Lift the old shaft straight up; if stuck, access the turntable motor from below to push it out
• Align and press the new shaft fully onto the motor spindle; reassemble and test rotation

A high-voltage capacitor for the appliance's high-voltage circuit that stores and releases electrical energy to support proper heating operation. Replacing a failing capacitor can restore consistent heating and prevent related electrical faults. What it does:

• Stores and delivers high-voltage energy used by the magnetron/ high-voltage assembly to generate heat.
• Failure may cause no-heat or weak-heat conditions in the oven.
• Faulty capacitors can contribute to arcing, loud humming, or blown high-voltage fuses.
• Works as part of the HV circuit; not a user-serviceable low-voltage control.

• High-voltage components can hold a dangerous charge—disconnect power and discharge the capacitor before servicing.
• Use insulated tools and avoid touching terminals; verify proper operation with appropriate test equipment.

The Diode is an OEM replacement part for LG countertop microwave models. Located internally on circuit boards regulating magnetron function, it precisely controls the electric current flow.

Causes of a bad diode involve thermal fatigue over time putting repetitive stress on sensitive semiconductor junctions. Microwave demands may accelerate failures.

Symptoms include:

• Intermittent cooking or complete failure to energize the tube
• Error codes appearing on the control panel display
• Buzzing or humming noises emitting from internal circuitry

This OEM LG part is also compatible with Sears/Kenmore microwaves.
