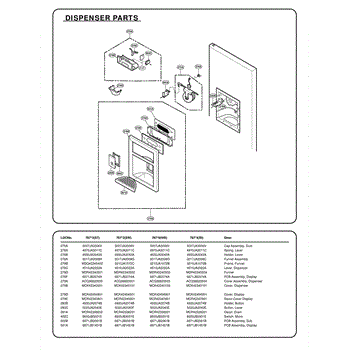

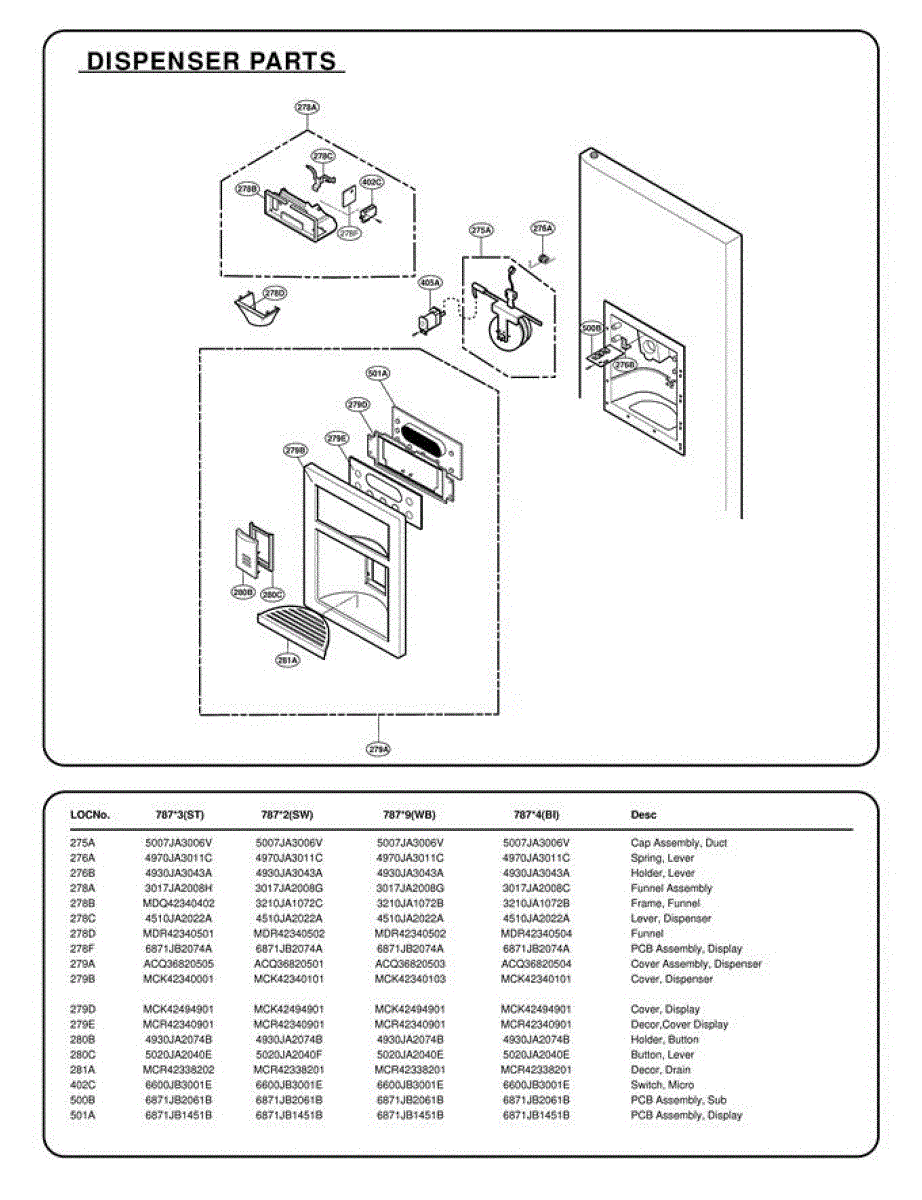

Parts for Lg 78753 / AST2SER: Section 6 Parts

Reduces contaminants and odors from your refrigerator's water and ice supply. Replace every 6 months for optimal performance. Verify fit by model number.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

Ice dispenser door won't close or stays open causing frost buildup? This small torsion spring restores tension to snap the chute door closed properly.

This dispenser button lever activates your refrigerator's water or ice dispensing mechanism when pressed. It transfers the pushing force from the external button to the internal switch that controls water flow or ice release. Replace this lever if your dispenser won't activate when pressed or if the button feels loose or unresponsive.

This decorative cover conceals the drainage system components, typically located at the bottom interior of the refrigerator or freezer section. Replace if the cover is cracked, discolored, or allowing debris to enter the drain system.

The Ice Door Solenoid Assembly is an OEM replacement part for LG refrigerators. This assembly controls the opening and closing of the ice door, which allows ice to be dispensed from the freezer to the exterior of the appliance. When you request ice, the solenoid activates, opening the ice door and permitting ice to pass through.

Symptoms of a bad Ice Door Solenoid Assembly include:

• Ice door not opening or closing properly
• Failure to dispense ice
• Ice accumulating or jamming at the dispenser

Causes for a malfunctioning Ice Door Solenoid Assembly can include electrical issues such as faulty wiring, wear and tear from frequent use, or mechanical problems affecting the solenoid's ability to move the ice door.

This OEM LG part is also compatible with Sears/Kenmore models.
