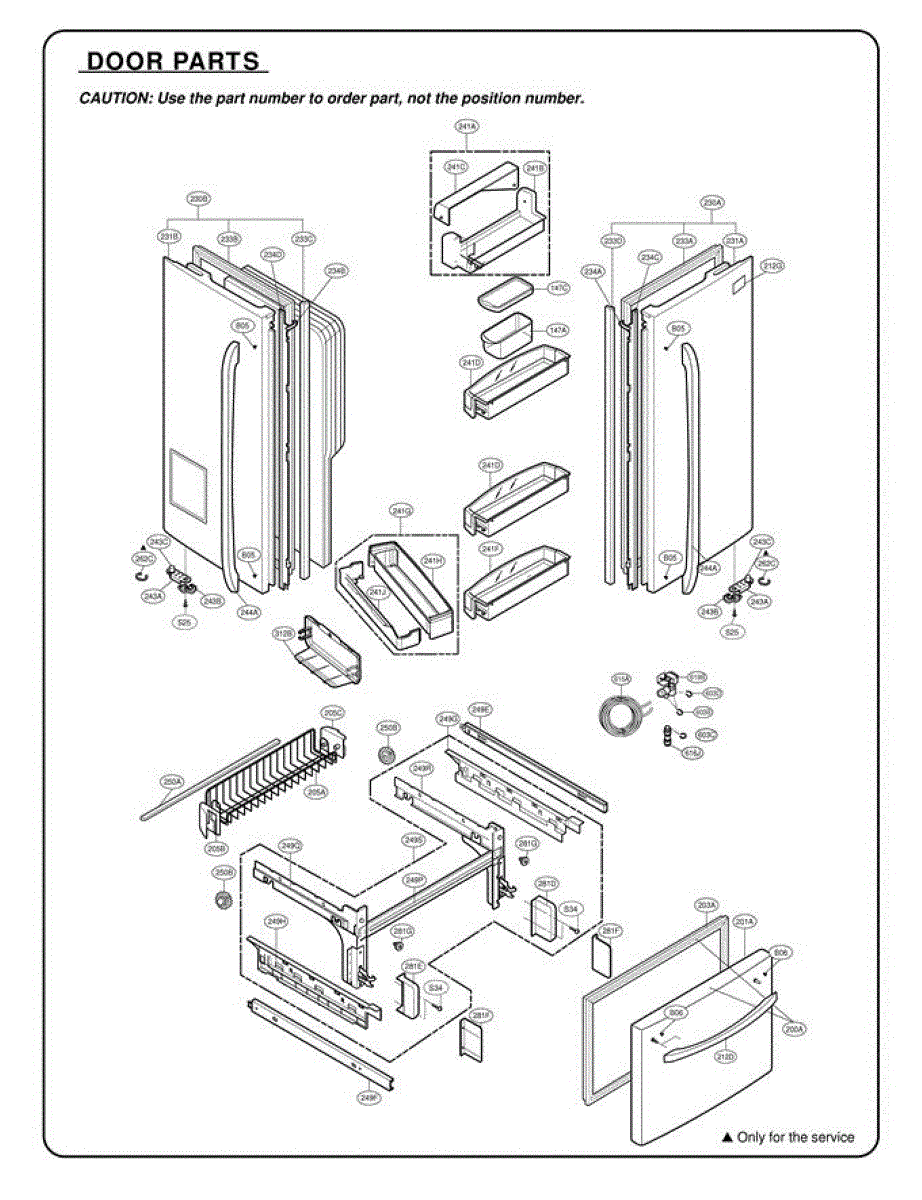

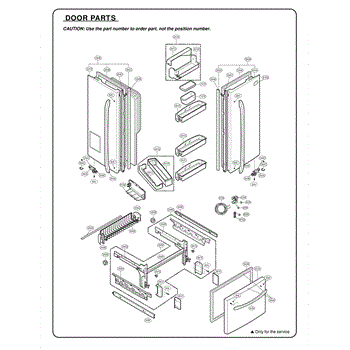

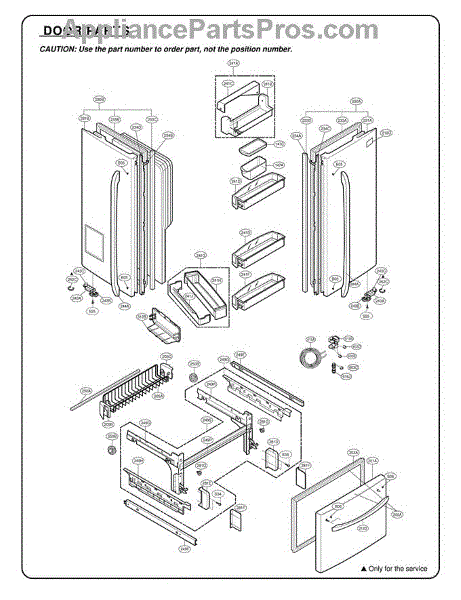

Parts for Lg 78753 / AST2SER: Section 5 Parts

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling or loose parts. Simple, direct replacement when a worn or missing screw causes loose panels or intermittent contact. What it does:

• Fastens panels, brackets, or small components to maintain proper alignment and reduce vibration
• Prevents loose trim, covers, or assemblies that can cause noise or improper sealing
• Replaces missing, stripped, or corroded screws that interfere with reliable operation
• Works wherever the OEM screw specification is required for secure mounting

• Use the matching screw hole and tighten until snug; avoid over-torquing to prevent stripping
• Disconnect power to the appliance if accessing electrical or moving parts near the work area
• If multiple screws are missing or panels are damaged, replace all fasteners for even support

The Refrigerator Door Shelf is an OEM part for LG refrigerators. This component is designed to fit snugly into the door of the refrigerator, providing convenient storage space for frequently accessed items such as drinks, condiments, and snacks. The shelf measures about 15 inches wide, 3 inches high, and 8 inches deep, providing plenty of storage space.

Symptoms of a failing Refrigerator Door Shelf include:

• The shelf becoming loose or failing to hold items securely
• Cracks or breaks in the shelf, which compromise its load-bearing capacity
• Sagging or bending of the shelf, particularly when loaded with heavier items
• Difficulty in fitting the shelf into its designated slots on the refrigerator door

Causes of a bad door shelf can include overloading beyond its weight capacity, frequent adjustment or removal of the shelf, or material fatigue from regular use and exposure to temperature variations within the refrigerator.

This OEM LG part is also compatible with Sears/Kenmore models.

The Freezer Door Gasket is an OEM part for LG side-by-side and bottom-freezer refrigerators. This gasket forms an important insulating seal around the freezer door compartment, preventing warm air from entering the sealed interior. Maintaining proper freezing temperatures depends on an intact door gasket.

Causes of a bad freezer door gasket can include cracks, deterioration, or compression from repeated opening and closing of the freezer door over time. Food debris trapped against the gasket rim can also damage sealing integrity.

Symptoms of a bad freezer gasket include:

• Difficulty closing or sealing the freezer door properly
• Warm air leaking into the freezer sections
• Frost and ice buildup occurring faster than usual
• Higher energy bills from the freezer running excessively

This replacement freezer door gasket from LG is also compatible with some Kenmore-brand refrigerators.

This genuine replacement basket door assembly restores a dishwasher's silverware basket closure so utensils stay secure during wash cycles. It replaces a broken, cracked, or missing basket door to keep small items contained. What it does:

• Replaces the small hinged door on the silverware basket that opens and closes for loading.
• Keeps forks, knives and spoons from falling out or shifting during a cycle.
• Prevents small items from interfering with spray arms and wash performance.
• Helps the basket maintain its intended fit and alignment in the lower rack.

• One basket door assembly as shown.

• Disconnect power to the appliance before starting any repair.
• Remove the lower rack to access the silverware basket and replace the door; no special tools usually required.
• Inspect hinge clips or pins for wear and replace if damaged to ensure proper operation.

Left Hand side

Right Hand side

This is refrigerators door gasket assembly that is used on the right-side door of a french style refrigerator. The gasket assembly is what seals the door to the appliance so that air does not leak into the unit or out of the unit, which helps the appliance maintain a specific temperature.A new refrigerator door gasket assembly will be needed if the gasket is cracked, broken, or damaged in any way. Some refrigerators may begin the beeping alarm that alerts the user that the door is not closed, when in fact, it's just the gasket that has gone bad. The refrigerator door gasket assembly may need to be replaced after normal use over time.This is a genuine LG part and is an OEM part sourced directly from the manufacturer. It is sold individually. This particular refrigerator door gasket assembly is compatible with refrigerators that are manufactured by LG.

A replacement cover frame that restores the finished look and protection around the appliance control area. Replaces a cracked, warped, or scratched trim to keep controls secure and maintain appearance. What it does:

• Covers and protects the control panel edges from bumps, spills, and wear
• Keeps switches and buttons aligned and held in place
• Restores the appliance's finished appearance when the original frame is damaged
• Helps prevent debris from entering the control cavity

• Disconnect power to the appliance before beginning any work
• Remove any outer trim or control panel fasteners to access the existing frame
• Handle the part carefully to avoid scratching the finish during install

Replacement cover frame that restores the appearance around the appliance control area while protecting internal components. Use it to replace cracked, warped, or missing trim and keep the control panel edges aligned and secure. What it does:

• Replaces damaged or cracked trim around the control panel for a finished, uniform look
• Protects underlying switches and electronics from dust and light debris
• Helps keep control-panel edges aligned and prevents loose or flopping trim
• Improves overall appliance appearance after impact or wear

• Disconnect power to the appliance before starting any repairs
• Removal of the control panel or console is typically required; keep all fasteners for reassembly
• Handle edges carefully to avoid scratches or cuts and to prevent damage to the new frame

The Door Latch Cam is an OEM part for LG refrigerators. This component is integral to the proper functioning of the refrigerator door latch system, ensuring the door stays securely closed.

Over time, the door latch cam can become worn out or damaged due to frequent use, exposure to moisture, or accidental impact. When the cam is compromised, it can affect the door's ability to seal properly, which can lead to energy inefficiency and potential spoilage of food.

Symptoms of a bad door latch cam include:

• Difficulty in closing or opening the refrigerator door
• The door not sealing tightly, leading to temperature fluctuations
• Increased energy consumption
• Unusual noises when operating the door latch

This OEM LG part is also compatible with Sears/Kenmore.

The Camshaft is an OEM part for LG refrigerators. It plays a crucial role in the proper operation of the refrigerator's door hinge, ensuring smooth and secure opening and closing. The camshaft helps align the door and maintains the seal, preventing warm air from entering the refrigerator.

You should replace the camshaft if it becomes worn out or damaged. Causes of a bad camshaft can include wear and tear from frequent use, physical damage from impact or mishandling, and misalignment issues that stress the camshaft over time.

Symptoms of a bad camshaft include:

• Difficulty in opening or closing the refrigerator door
• The door not staying closed
• Unusual noises when opening or closing the door
• Misalignment of the refrigerator door

This OEM LG part is also compatible with Sears/Kenmore models.

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

This refrigerator door basket mounts on the inner door and holds bottles, jars, and condiments. Replace a cracked or missing upper bin to restore secure, organized storage and keep frequently used items within easy reach.

• Attaches to the door liner to support and organize condiments and beverages
• Restores lost storage when a bin is cracked, warped, or missing
• Common symptoms: broken tabs, sagging bin, won't stay seated, or items tipping
• Helps keep frequently used items accessible without opening main shelves

What's included: 1 door basket Install notes:

• Remove contents, then lift the old bin straight up to release
• Align the new basket's hooks/tabs with the door slots and lower or snap into place
• Confirm it's fully engaged before loading items
• Handle carefully; avoid flexing or overloading the bin

The Tilting Door Basket is an OEM part for LG refrigerators. This basket provides convenient storage in the refrigerator door, designed to tilt outward for easier access to items like beverages, condiments, and snacks. Its design helps maximize space and improve organization within the refrigerator. This basket measures approximately 14 inches wide, 5 inches high, and 4 inches deep.

Causes of a bad door basket can include wear and tear from frequent use, accidental impacts, or damage to the mounting points or tilt mechanism.

Symptoms of a bad tilting door basket include:

• Cracks or visible damage to the basket
• The basket not tilting or staying in place properly
• Difficulty in securing the basket to the door
• Items falling out of the basket

This OEM LG part is also compatible with Sears/Kenmore models.

The Tilting Door Basket is an OEM part for LG refrigerators. This basket provides convenient storage in the refrigerator door, designed to tilt outward for easier access to items like beverages, condiments, and snacks. Its design helps maximize space and improve organization within the refrigerator. This basket measures approximately 14 inches wide, 5 inches high, and 4 inches deep.

Causes of a bad door basket can include wear and tear from frequent use, accidental impacts, or damage to the mounting points or tilt mechanism.

Symptoms of a bad tilting door basket include:

• Cracks or visible damage to the basket
• The basket not tilting or staying in place properly
• Difficulty in securing the basket to the door
• Items falling out of the basket

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Door Shelf is an OEM part for LG refrigerators. This component is designed to fit snugly into the door of the refrigerator, providing convenient storage space for frequently accessed items such as drinks, condiments, and snacks. The shelf measures about 15 inches wide, 3 inches high, and 8 inches deep, providing plenty of storage space.

Symptoms of a failing Refrigerator Door Shelf include:

• The shelf becoming loose or failing to hold items securely
• Cracks or breaks in the shelf, which compromise its load-bearing capacity
• Sagging or bending of the shelf, particularly when loaded with heavier items
• Difficulty in fitting the shelf into its designated slots on the refrigerator door

Causes of a bad door shelf can include overloading beyond its weight capacity, frequent adjustment or removal of the shelf, or material fatigue from regular use and exposure to temperature variations within the refrigerator.

This OEM LG part is also compatible with Sears/Kenmore models.

This small sleeve fits over the hinge pin to provide a smooth pivot and maintain proper door alignment. Replacing a worn bushing helps eliminate wobble and squeaks so the door opens and closes correctly.

• Supports the hinge pin/shaft to reduce friction and wear
• Helps keep the door aligned and at the correct height at the hinge
• Can resolve door wobble, sagging, squeaking, binding, or rubbing
• Improves smooth opening/closing and reduces play at the hinge

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door before removing hinge fasteners; note the order of spacers/washers
• Replace the bushing on the hinge pin and reassemble in the same stack-up
• Verify door alignment and operation after installation

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This connector cover is the small trim piece that shields and conceals the connection area on your refrigerator. Replacing a cracked or missing cover restores a clean, finished look and helps protect connectors from dust and accidental snags.

• Covers and protects the wiring and/or tubing connector cavity
• Helps keep debris out of the connection area
• Maintains proper routing and prevents snagging of harnesses
• Common signs it's needed: cracked or missing cover, exposed connectors, cover won't stay attached, cosmetic damage

• Disconnect power and turn off the water supply before beginning
• Remove any retaining screw(s) or release tabs to take off the old cover
• Position the new cover, ensuring wires/tubing aren't pinched; secure with original hardware
• Restore power/water and confirm the cover is fully seated

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This joint assembly is the connector that joins two refrigerator water tubes to form a tight, leak-resistant seal. Replace it to stop leaks at a line coupling and restore reliable dispenser and icemaker water flow.

• Connects two plastic water lines within the refrigerator's water system
• Maintains a watertight seal to prevent drips and air intrusion
• Common fix for leaks at a coupling or tubing that won't stay seated
• Symptoms include slow/sputtering dispenser, small/no ice production, or visible seepage at the connector

• Unplug the refrigerator and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Depress the connector collar to release the tubing; cut damaged tube ends square and fully insert tubing until it bottoms out
• Restore water and power, then check all connections for leaks

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.

This cover panel replaces a damaged or missing exterior trim piece to restore the appliance's appearance and protect internal components from dust and debris. It fits where the original cover was mounted and keeps wiring and parts shielded. What it does

• Covers and protects internal components from dirt and accidental contact
• Restores the appliance's exterior finish for a clean, finished look
• Helps reduce rattles by securing loose openings or edges
• Matches the original mounting locations for proper fit and alignment

• Disconnect power (unplug appliance or switch off breaker) before starting work.
• Removal/install typically requires basic tools (screwdriver or nut driver); keep original fasteners unless replacements are provided.
• Handle with care to avoid scratching the finish or breaking mounting tabs; avoid forcing clips.

This replacement hinge cover is a molded trim piece that snaps over the refrigerator door hinge to restore the appearance and protect the hinge area from dirt and damage. It keeps the hinge assembly concealed and the door looking finished. What it does:

• Covers and protects the door hinge assembly from dust, grease and accidental contact
• Restores a clean, finished look when original hinge cover is cracked, broken or missing
• Helps prevent debris buildup that can interfere with hinge movement
• Matches original mounting style for a secure snap-on fit when intact

• High-level replacement: typically snaps into place; inspect clips/tabs and align before pressing fully
• Power/disconnect: no electrical disconnect usually required, but follow appliance safety guidance and keep doors supported
• Handle gently to avoid breaking plastic clips during installation

This small retaining clip secures its mating component within the refrigerator assembly, keeping parts properly seated and reducing vibration. Replacing a damaged or missing clip helps restore a snug fit and reliable operation of the attached piece.

• Holds the designated part firmly in place within the assembly
• Maintains proper alignment to prevent movement or rattling
• Helps ensure panels, ducts, or lines stay secured during use
• Symptoms can include loose or sagging parts, vibration noises, or components that won't stay attached

• Disconnect power; if working near the water system, also shut off the water supply
• Note the original orientation and placement before removal
• Fully seat the mating component, then press the new clip into place without forcing
• Check operation before reassembly

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.

Located in the left refrigerator door on french door models.
