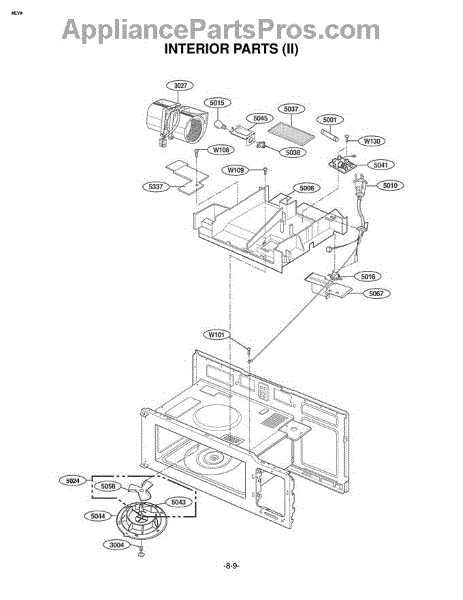

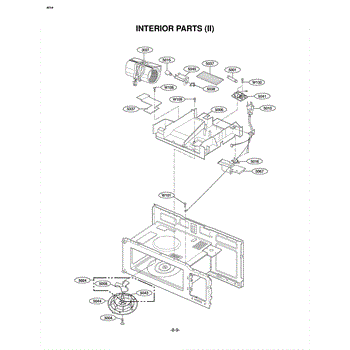

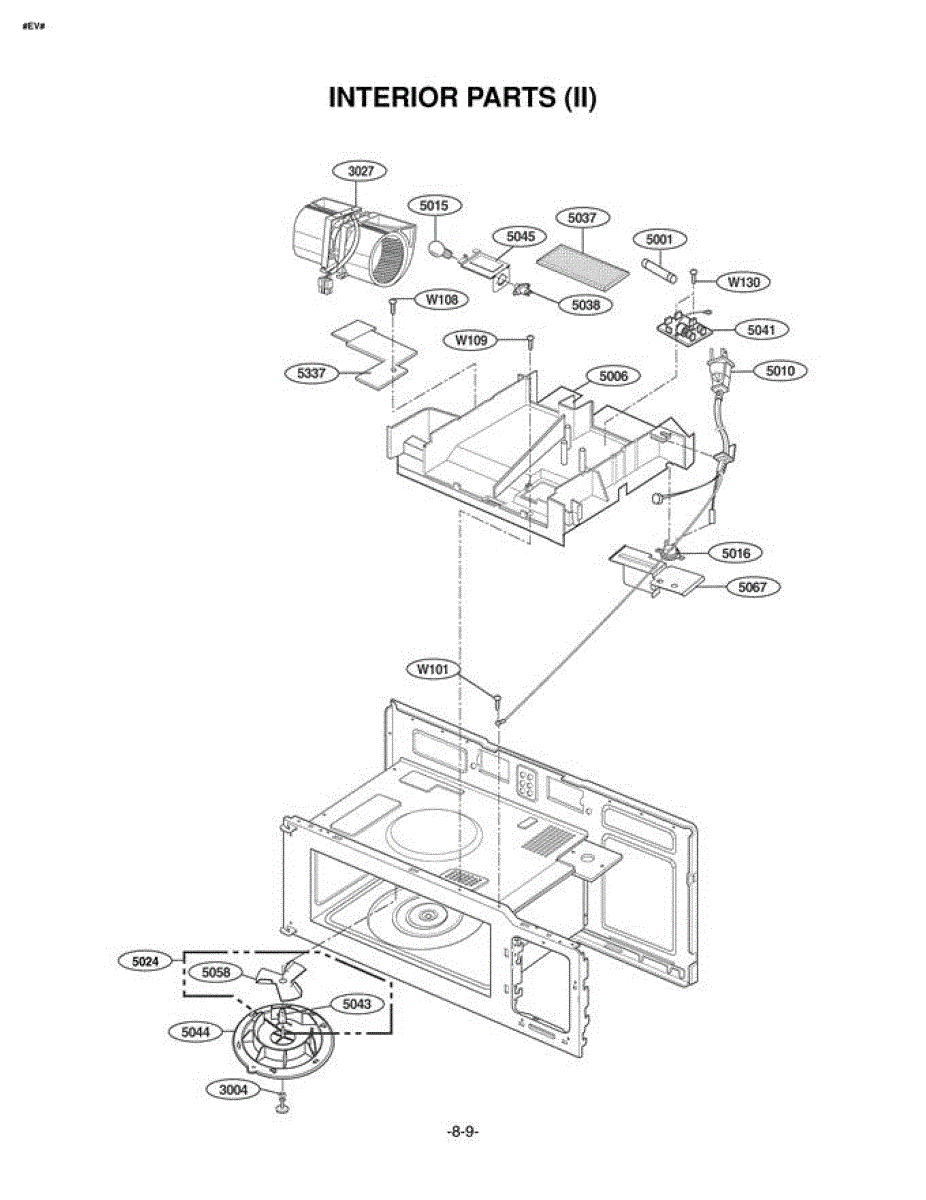

Parts for Lg LMV1630BB / CB1ELGA: Section 6 Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

This rivet assembly fastens panels, brackets, or covers inside the microwave cabinet. Replacing a damaged or missing fastener restores a tight fit, reduces vibration noise, and keeps mounted components properly aligned.

• Secures panels, brackets, or covers to the cabinet for a stable fit
• Use when a rivet is cracked, missing, or no longer holds
• Can help resolve rattling, buzzing, or loose panel movement
• Maintains proper alignment and support of mounted parts

• Disconnect power before servicing; support and remove over-the-range/built-in units for safe access.
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge—service should be performed by qualified personnel.
• Reinstall using existing mounting holes; ensure the rivet is fully seated and secure.
• Wear cut-resistant gloves and eye protection to avoid injury from sharp metal edges.

The Time Delay Fuse is an OEM part for LG microwaves. This fuse provides a safety mechanism by delaying the flow of electricity, protecting the microwave's electrical components from power surges and ensuring the appliance operates safely. It helps to prevent immediate damage in the event of a power surge or electrical fault, thus prolonging the lifespan of the microwave.

Over time, the time delay fuse can become damaged due to electrical surges, wear and tear, or faulty connections. If the fuse blows, it can disrupt the microwave’s ability to function correctly.

Symptoms of a bad time delay fuse include:

• The microwave not turning on
• No response from the microwave control panel
• The microwave stopping unexpectedly during operation
• Electrical issues or blown circuits in the microwave

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement lamp assembly restores interior illumination so you can see the appliance cavity clearly and safely. It fits the original mounting and electrical connections for a direct swap. What it does

• Replaces a burned-out, flickering, or dim interior lamp so you can inspect food and parts easily
• Provides the correct shape and connector to match the appliance's original lamp location and mounting
• Helps eliminate intermittent lighting caused by a damaged lamp or failed lamp connection
• Restores normal light output for safe loading and unloading

• Disconnect power to the appliance before starting any repair
• Allow the appliance and old lamp to cool completely before handling
• Handle the lamp by its base or use gloves to avoid oil contamination on the bulb
• Follow the appliance's service manual or OEM diagram for correct removal and installation

This microwave thermostat is the safety control that monitors temperature and opens the circuit if overheating is detected, protecting internal components. Replace it if your oven is dead, loses heat, or shuts off mid-cycle due to a failed thermostat. What it does:

• Monitors temperature and interrupts power when overheating occurs to help prevent damage
• Helps protect internal components and wiring from excessive heat
• Failure can cause: no power, shuts off during or shortly after starting, or runs but does not heat
• Replacing a failed thermostat helps restore normal operation and safety protections

• 1 thermostat

• Unplug the appliance; microwaves contain high-voltage components that can retain a lethal charge even when unplugged
• Remove the outer cover to access the thermostat; location varies by model
• Move wires one at a time to the new thermostat and mount it firmly against the mating surface for proper heat sensing
• Reassemble, restore power, and test operation

This fan assembly moves air through the unit to cool internal components and maintain proper ventilation. Replacing a worn or seized fan restores correct airflow, helps prevent overheating, and reduces excessive noise from a failing motor or wheel.

• Circulates cooling air across internal components to prevent overheating
• Exhausts air through the vent/duct path for proper ventilation
• Common symptoms: fan not running, weak airflow, or loud rattling/squealing
• Unit may overheat or shut off during use when the fan fails

• Disconnect power before service; microwaves contain a high-voltage capacitor that can retain a dangerous charge—follow proper safety procedures.
• Remove access panels to reach the fan housing; note airflow direction and wire orientation.
• Transfer any brackets, grommets, or screws from the original assembly if required.
• After installation, verify the wheel spins freely and airflow direction is correct before reassembly.

This mechanical charcoal refrigerator filter helps reduce food and fridge odors for fresher-smelling compartments. It's a direct-fit replacement that restores odor-absorbing capability so your fridge interior smells cleaner. What it does

• Adsorbs and traps common food and household odors to reduce smells in the fridge
• Helps prevent odor transfer between compartments and stored foods
• Restores the intended odor-control function when the original filter is spent or clogged
• Works as a simple replaceable cartridge in compatible LG refrigerator filter housings

• One mechanical charcoal refrigerator filter cartridge

• High-level replacement: remove the old filter cartridge and snap or twist the new cartridge into the filter housing per the refrigerator manual
• Follow the refrigerator manufacturer's instructions for alignment and secure seating to avoid leaks or loss of function
• Disconnect power or follow any appliance-specific safety steps recommended by the manufacturer before servicing
• Dispose of the used filter per local regulations for household waste

This replacement lamp socket holds the light bulb and provides a stable electrical connection so your appliance light works reliably. Replace a heat-damaged or loose socket to restore consistent illumination and help prevent flicker, arcing, and premature bulb failure.

• Secures the bulb and connects it to power
• Restores proper interior or work-area lighting
• Addresses flickering, intermittent light, or bulbs failing early from poor contact
• Replaces sockets that are cracked, melted, or discolored

• Disconnect power at the breaker or unplug before servicing
• Allow the area to cool; wear gloves and safety glasses
• Note wire positions and transfer one lead at a time to the new socket
• If servicing a microwave, access only the lamp area per your model instructions; do not open the cabinet—internal components can retain high voltage
