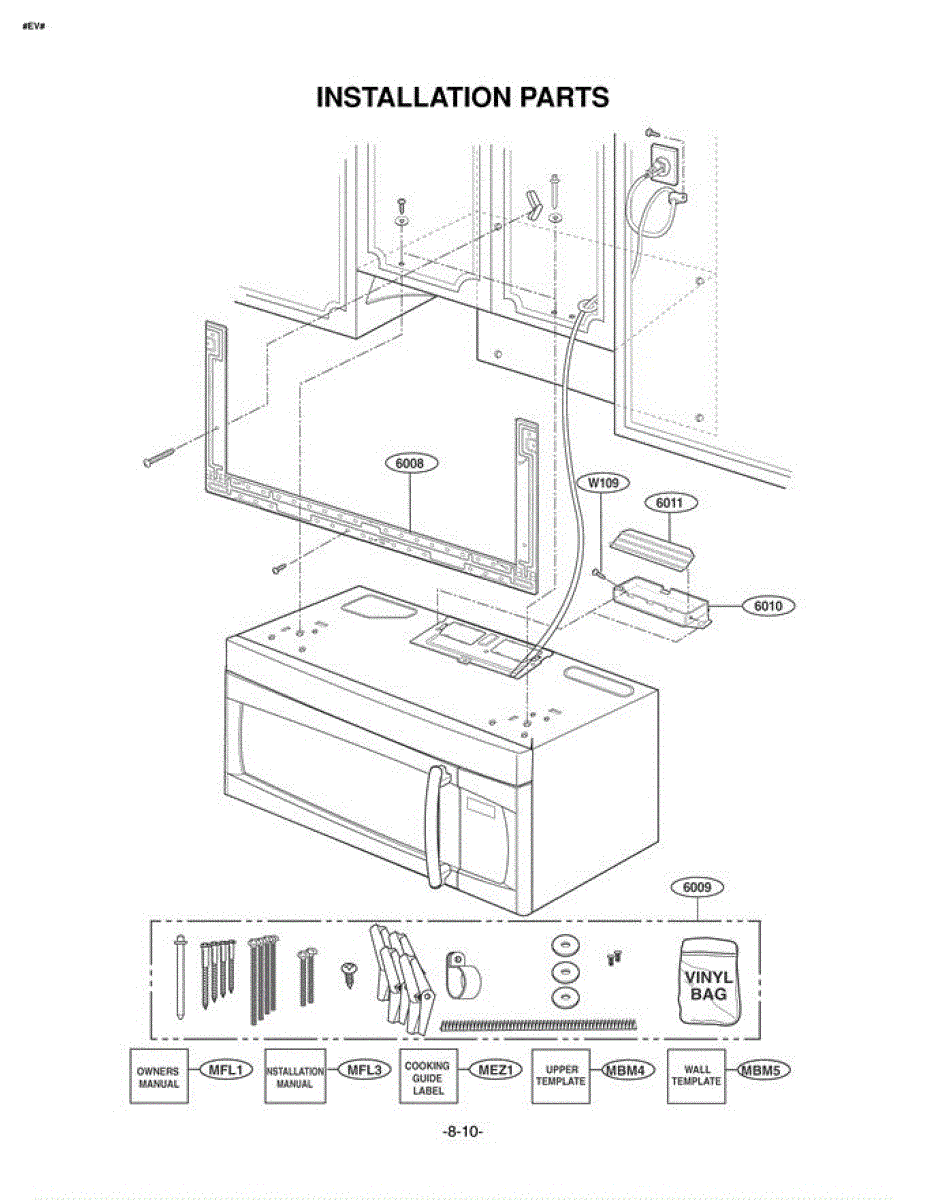

Parts for Lg LMV1630BB / CB1ELGA: Section 7 Parts

This printed owner's manual provides the official operating instructions, care guidance, and basic troubleshooting for your appliance, helping you use features correctly and maintain safe, reliable performance. What it does:

• Explains appliance controls, cycle options, and feature descriptions in plain language
• Provides routine maintenance and care guidance to help prevent common issues
• Lists basic troubleshooting steps for common symptoms like error codes, unusual noises, or performance changes
• Includes safety warnings and handling precautions to reduce risk during use and maintenance

• This item is documentation only; no tools or parts are required to "install."
• Keep the manual in a dry place near the appliance for quick reference.
• Follow all safety cautions in the manual before servicing the appliance; unplug or disconnect power when instructed.
• Replace damaged or illegible manuals to ensure safety and correct operation.

The TEMPLATE is an OEM part for LG microwaves. It is the outer casing and control panel covering that defines the microwave's design and aesthetics.

The causes of a bad template can include cracks, dents, or damage to the outer surface from impacts or normal wear over time. Heat and humidity fluctuations can also cause template materials to degrade.

Symptoms of a bad template include:

• Cracks or breaks in the template material
• Loose, misaligned, or damaged control panel or display
• Yellowing, warping, or discoloration of plastics
• Openings or gaps that compromise the microwave structure

This genuine OEM LG replacement part restores the microwave's appearance and protects internal components. It is also compatible with some Kenmore and Sears microwaves


This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

This mounting plate is a metal bracket used to secure the microwave chassis/components in the correct position. A worn or damaged plate can cause poor fitment, vibration, or noise during operation.

• Provides a stable mounting surface for the designated microwave assembly
• Helps reduce vibration and rattling noises
• Restores proper alignment if the original plate is bent or broken
• Commonly replaced when the original plate is damaged or missing

• Unplug the appliance and discharge the high-voltage capacitor before servicing a microwave
• Use proper personal protective equipment; metal edges can be sharp
• Note orientation and fastener locations before removal
• Tighten mounting hardware evenly to avoid distortion

The Damper Bracket is an OEM component for LG microwaves. Located inside the microwave cavity above the wave stirrer, this bracket holds the position of the damper assembly that helps distribute heat evenly during cooking. The bracket measures approximately 12” by 5”.

Symptoms of a bad damper bracket can include:

• Hot or cold spots developing within the microwave cavity
• Looseness in the damper assembly fit
• Reduced heat circulation leading to uneven cooking

Causes typically consist of cracking over long-term heat exposure. Repeated opening/closing of the damper may also weaken attachment points on the bracket.

This OEM LG part is also compatible with Sears/Kenmore microwaves.

The Damper is an OEM component for LG microwaves. Located within the cooking cavity, it regulates airflow and safely vents steam escaping heated foods.

Causes of a faulty damper can involve standard wear and exposure accepting steam and condensation release. Food or liquid particles drying within tracks also threaten eventual adhesion issues restricting travel if left unaddressed between cleanings.

Symptoms of a damaged or defective damper include:

• Inability to adequately vent excess moisture from heating
• Potential messes spilling beyond the microwave frame
• Grating sounds or squeaks emitting during cooking
• Flaps possibly stuck inhibiting steam circulation

This damper is also compatible with Kenmore microwaves as well.
