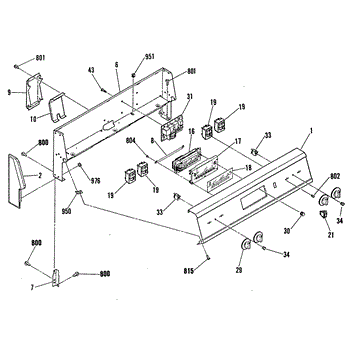

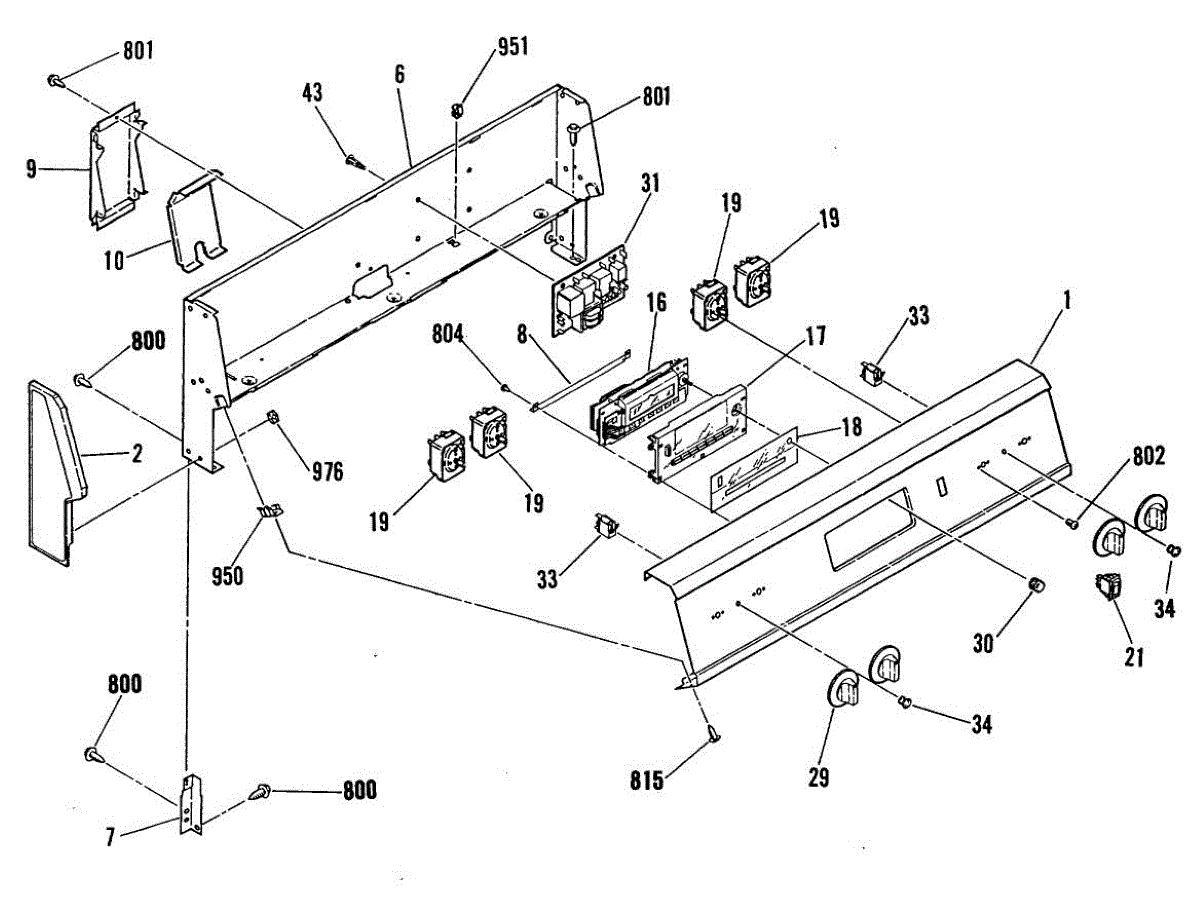

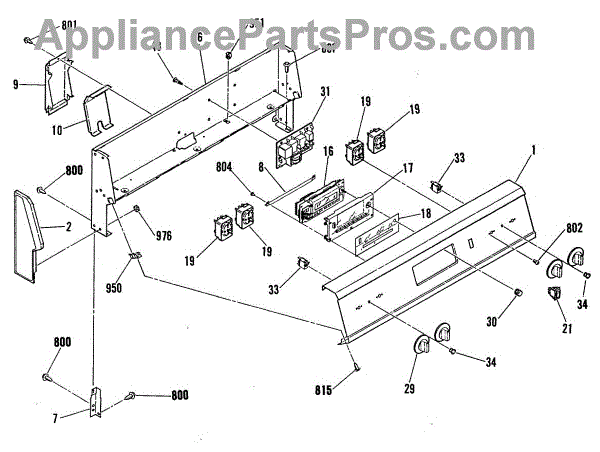

Parts for Ge JBP29GM4WH: 01 - Section1 Parts

8" element switch

6" element switch

Color: Black

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

A metal stiffening bracket that reinforces the appliance cabinet or panel to restore proper alignment and reduce flex. Fits where a small structural support bracket has worn, bent, or broken, helping panels sit securely. What it does

• Provides structural support to a cabinet, door or control panel area to prevent sagging or movement
• Restores correct alignment when a bent or broken bracket allows gaps or rubbing
• Reduces vibration and rattling caused by loose or weakened support
• Works as the replacement structural bracket that fastens with original hardware

• Disconnect power before beginning any repair; if appliance uses gas, turn off the gas supply first
• Remove exterior panels or trim as needed to access the damaged bracket; keep track of original fasteners
• Use appropriate hand tools; avoid over-tightening screws to prevent panel distortion

ST10-16 X 7/16"

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

When used regularly, protects your solid cooking elements from rusting and spotting. Helps maintain the original black matte appearance.
