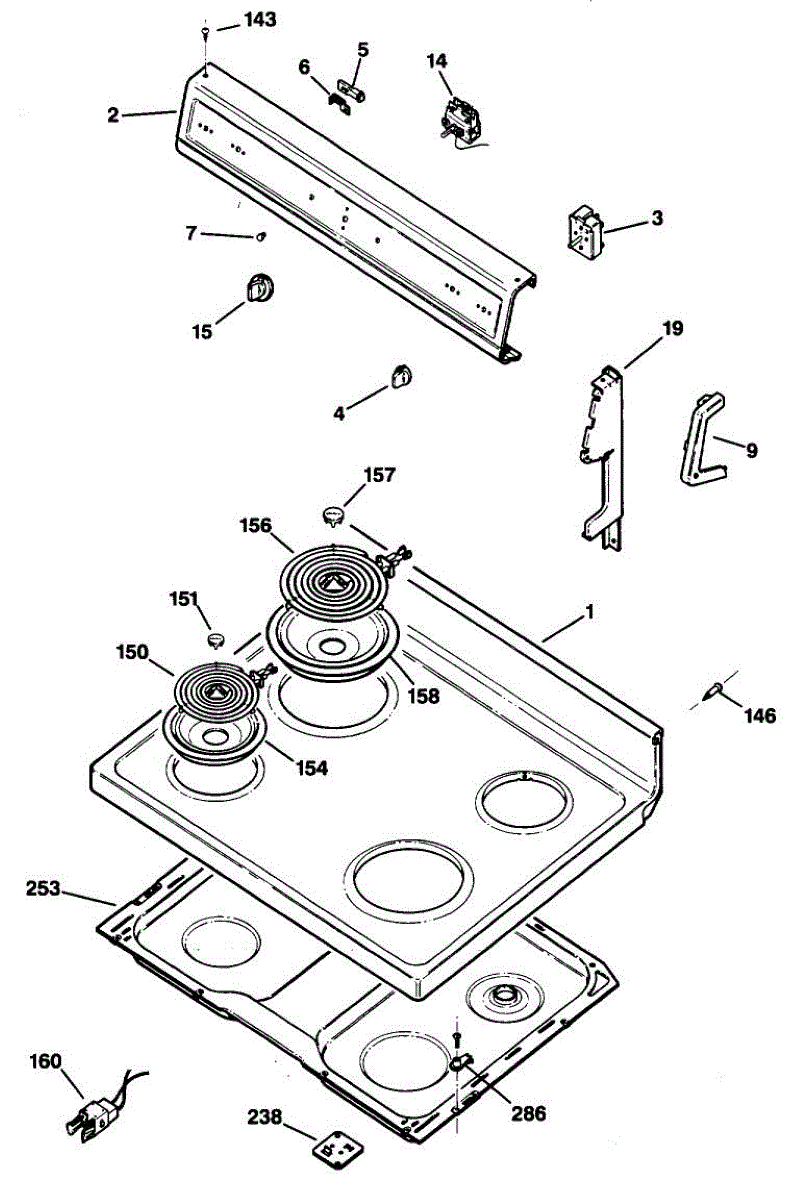

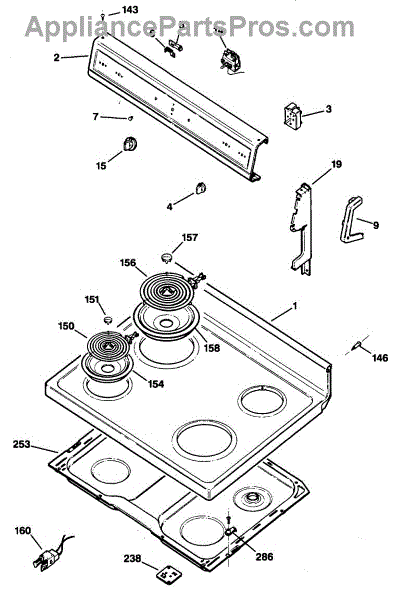

Parts for Ge JBS03GXR1: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Color: Black

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Includes 12 speed nuts.

This double terminal block provides a secure connection point for two incoming power leads and the appliance harness, helping restore reliable electrical feed to heating and control circuits. Direct-replacement electrical mounting for affected ranges and ovens. What it does:

• Joins and secures two power supply conductors to the appliance wiring harness
• Restores interrupted power paths that can cause burners, elements, or controls not to heat or operate
• Prevents loose or corroded connections that lead to arcing or intermittent operation
• Matches original mounting and terminal spacing for a straightforward replacement

• One double terminal block

• Disconnect power at the breaker or unplug appliance before servicing to avoid shock
• Verify correct wire routing and tight, torqueed terminal screws; use a replacement screw if original is damaged
• Inspect adjacent wiring and connectors for heat damage; replace any compromised components

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

This is a replacement mounting screw used to secure panels and components in compatible GE appliances. It provides a straightforward fastener solution when a factory screw is missing or damaged. What it does:

• Secures interior or exterior panels, brackets, and trim pieces
• Restores proper alignment and prevents rattling or movement
• Replaces stripped or lost screws to maintain safe appliance operation
• Works as the OEM-specified fastener when matched to the correct location

• One replacement mounting screw as shown

• Use the correct screwdriver bit and apply moderate torque to avoid stripping the head
• If thread engagement feels incorrect, stop and verify screw size before forcing
• Disconnect power or fuel sources and follow appliance safety procedures before servicing
• If multiple screw types are missing, compare heads and threads to originals to ensure a correct match

The Oven Rack is an OEM part for GE ovens. It is a fundamental component that provides a stable platform for placing baking sheets, pans, and other cookware inside the oven. The oven rack is designed to fit securely into the oven cavity, allowing for efficient heat circulation and even cooking.  It measures approximately 23” wide by 16” deep.

Causes of a faulty oven rack can include wear and tear over time, exposure to high temperatures or heavy loads, or damage due to accidental impacts. These factors can result in bent or warped rack wires.

Symptoms of a bad oven rack may include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or browning of food items
• Visible damage or deformation of the rack wires

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Package of 12

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Includes: Anti-tip bracket, screws and instruction sheet.
