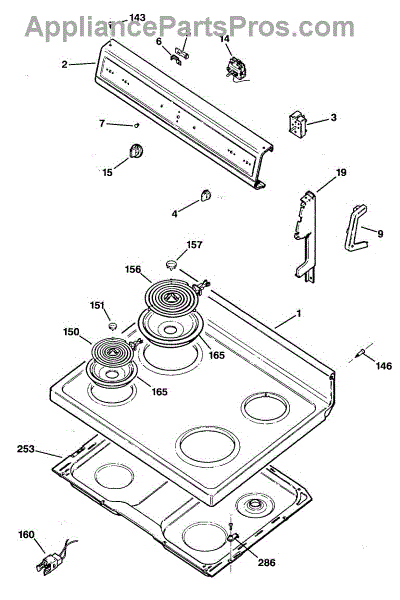

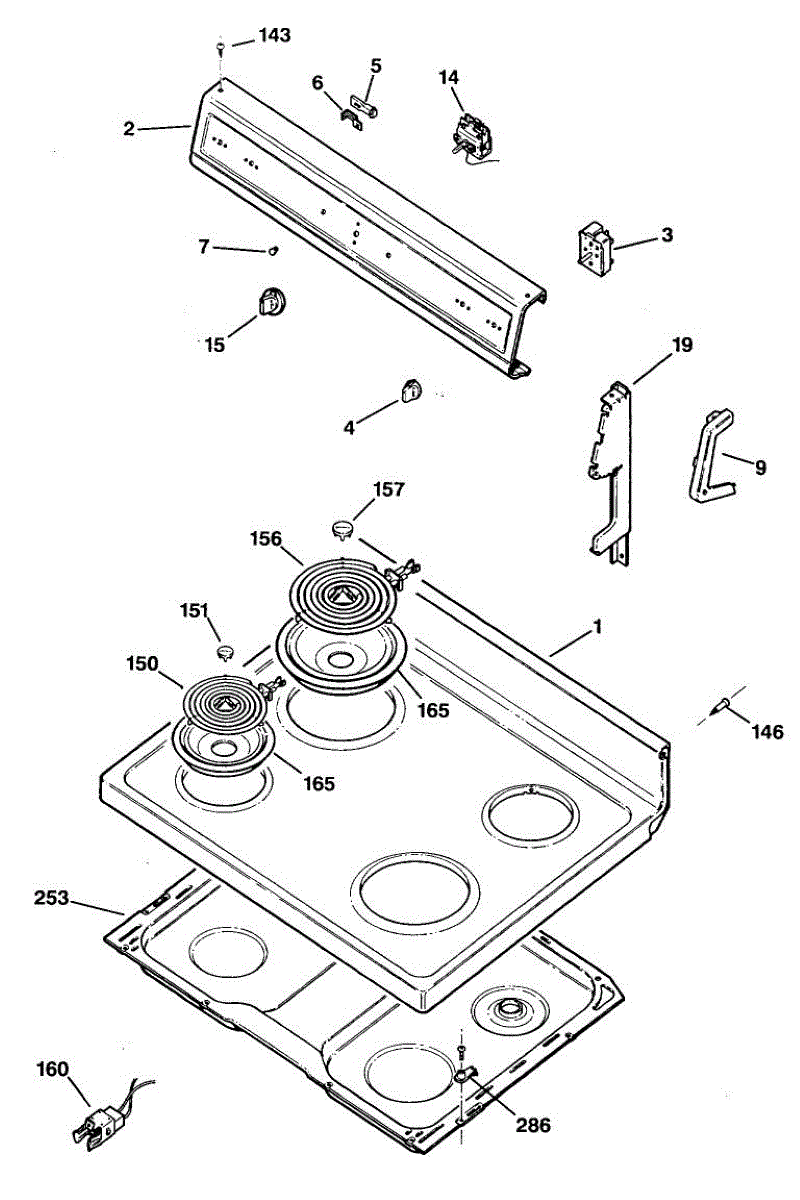

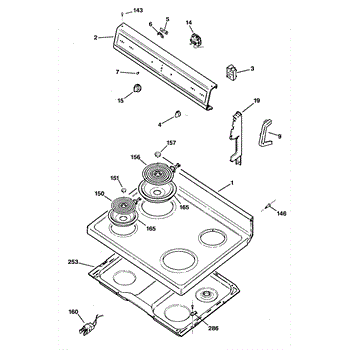

Parts for Ge JBS06GXR2: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damag

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the con

Burner not heating or working intermittently? This surface element receptacle connects your heating element to power. DIY-friendly repair in under 1 hour.

This 6-inch drip bowl installs beneath the coil element on your electric range. Replace if cracked, chipped, or heavily discolored from spills.

This 8-inch drip bowl installs under your range burner to catch grease and spills. Replace if yours is rusted, cracked, warped, or heavily stained.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

A replacement wiring diagram sheet that shows the appliance's electrical schematic and component connections to help diagnose wiring and control issues. Clear, OEM-style schematic layout for accurate reference during troubleshooting. What it does:

• Shows the electrical schematic and connector locations so you can trace circuits and wiring paths
• Helps identify which components and terminals are tied to specific circuits during tests
• Useful for diagnosing intermittent or no-power symptoms tied to wiring or control failures
• Aids correct reconnection after servicing controls, switches, or harnesses

• Always disconnect power to the appliance before accessing electrical components
• Use the diagram as a reference—verify wiring and terminal labels against the appliance before making connections
• Handle the sheet carefully to avoid tears or marks that could obscure wiring details

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
