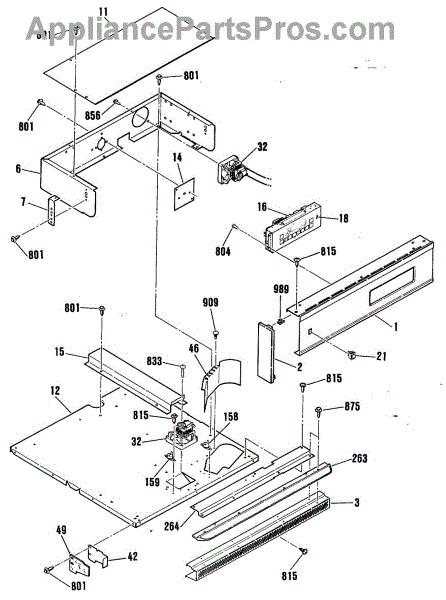

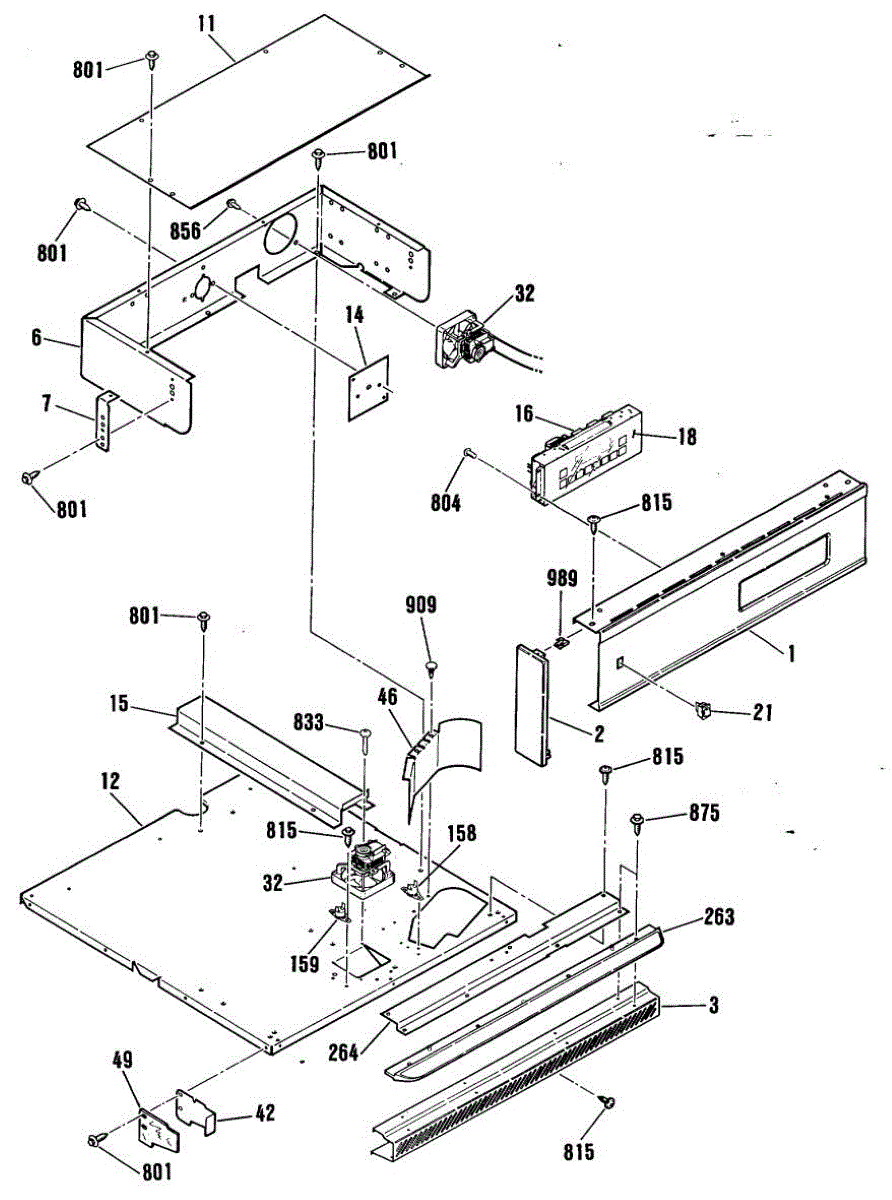

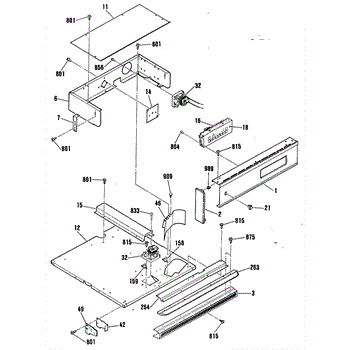

Parts for Ge JGRP16GEP1: 01 - Section1 Parts

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

This fan assembly restores proper airflow inside your appliance, moving air to cool internal components and support ventilation. Replace a seized, noisy, or non-running fan to prevent overheating and bring back efficient, quieter operation.

• Circulates air through the appliance for cooling and/or ventilation
• Helps maintain safe operating temperatures and consistent performance
• Common symptoms: no or weak airflow, fan won't start or runs intermittently, loud grinding/squealing/rattling, excessive vibration
• A failed fan can lead to overheating or thermal safety shutdowns

• Disconnect power at the breaker before servicing
• Access the fan per your model's service information; note wire locations and mounting orientation
• Transfer any brackets, screws, or gaskets from the original
• Ensure the fan wheel spins freely and nothing contacts it before restoring power

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage
