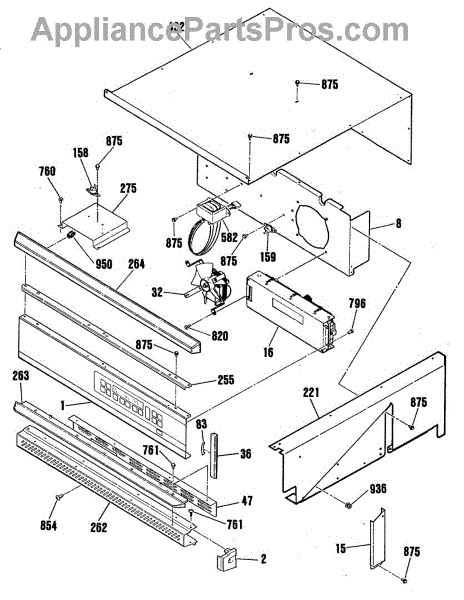

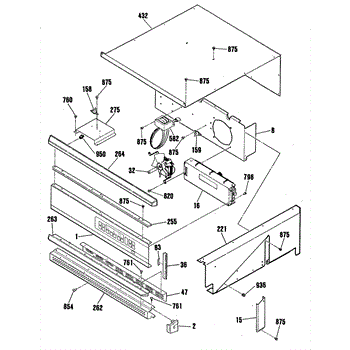

Parts for Ge JKP45WT2WW: 01 - Section1 Parts

Color: White. Left hand side. For right hand use WB36K5108

Color: White. Right hand side. For left hand use WB36K5107

Replacement wire cover for oven meat probe. Protects and conceals probe wiring. Order a new cover if yours is cracked, broken, or missing.

Right hand side. For left hand use WB7K5056

Left hand side. For right hand use WB7K5055

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Right hand side

Left hand side

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Color: White. Left hand side. For right hand use WB7K5205

Color: White. Right hand side. For left hand use WB7K5204

Gray vent trim for electric ovens and ranges. Replaces cracked, discolored, or missing trim pieces around the oven vent opening for a clean finish.

This part has been discontinued and is no longer available.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Replacement mounting screw for cooktops and ranges. Secures burner components, brackets, or panels. Needed when screws are stripped, lost, or damaged.

Wood screw for securing range components and panels. Replaces lost, stripped, or damaged screws during repairs or reassembly of your oven or range.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Secures and routes electrical cables inside your oven. Replace if damaged, cracked, or missing to prevent wire wear and maintain safe operation. Verify fit with your model number before ordering.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
