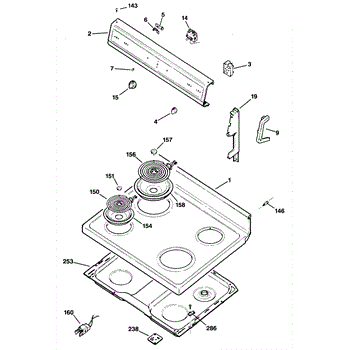

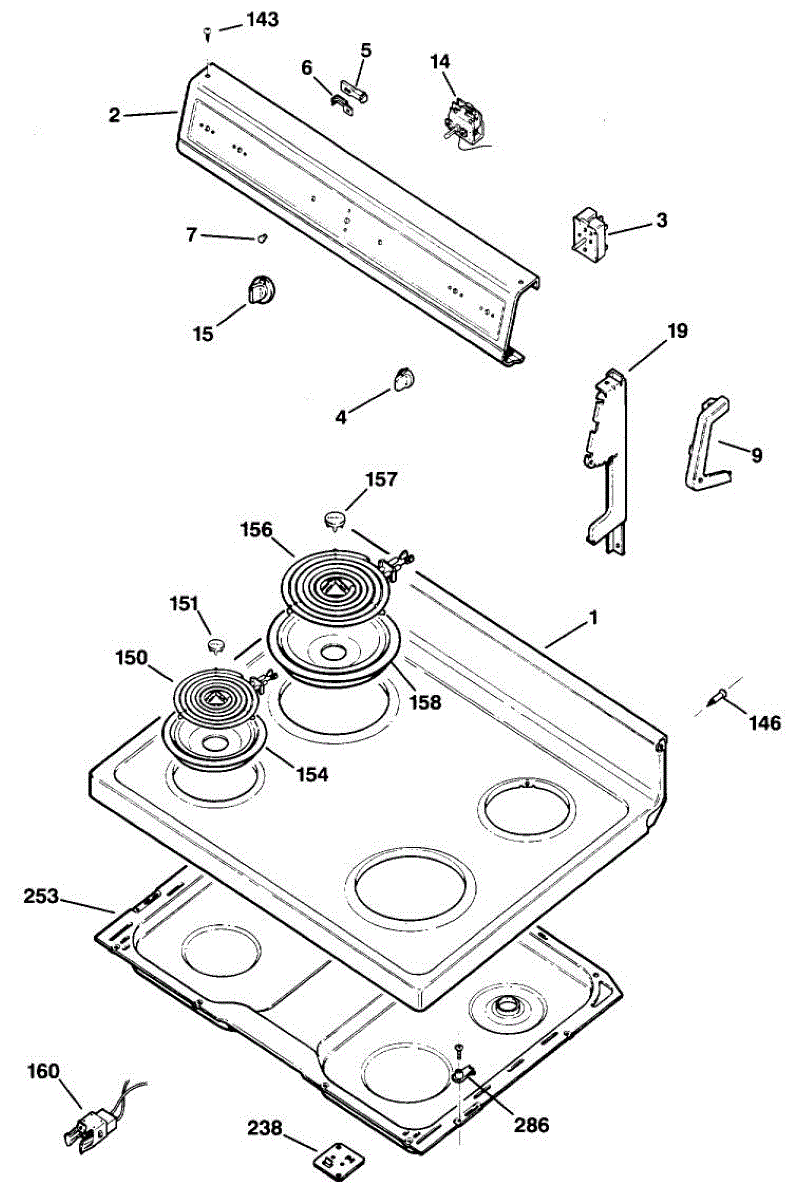

Parts for Ge RB524XR2: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small decorative bezel that restores the finished look of the control panel and helps protect the underlying opening from dust and debris. Replaces a cracked, faded, or missing jewel to freshen appliance appearance. What it does:

• Covers and protects a control-panel opening or indicator area, improving cosmetics.
• Hides mounting hardware and helps keep dust and spills out of internal components.
• Commonly used to replace cracked, broken, or missing jewels that distract from the appliance finish.
• Simple cosmetic replacement — does not affect electronic functionality.

• Always disconnect power to the appliance before starting any repair.
• Typically snaps into place or secures with small screws; handle gently to avoid cracking.
• If screws are present, use the correct size screwdriver and avoid over-tightening.

Color: Black

Color: Black

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

This double terminal block provides a secure connection point for two incoming power leads and the appliance harness, helping restore reliable electrical feed to heating and control circuits. Direct-replacement electrical mounting for affected ranges and ovens. What it does:

• Joins and secures two power supply conductors to the appliance wiring harness
• Restores interrupted power paths that can cause burners, elements, or controls not to heat or operate
• Prevents loose or corroded connections that lead to arcing or intermittent operation
• Matches original mounting and terminal spacing for a straightforward replacement

• One double terminal block

• Disconnect power at the breaker or unplug appliance before servicing to avoid shock
• Verify correct wire routing and tight, torqueed terminal screws; use a replacement screw if original is damaged
• Inspect adjacent wiring and connectors for heat damage; replace any compromised components

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Unit Receptacle is an OEM part for GE cooktops and ranges. It is designed to hold and connect the surface heating element to the cooktop’s electrical system, providing a secure and reliable connection for the element to receive power.

Causes of a bad surface unit receptacle can include wear and tear from regular use, exposure to high temperatures, or electrical arcing. A malfunctioning receptacle can lead to improper heating element performance or electrical hazards.

Symptoms of a bad surface unit receptacle include:

• The heating element not heating up or only heating intermittently
• Visible damage or burn marks on the receptacle
• Sparks or electrical arcing when the element is in use
• The heating element feeling loose or not fitting securely in the receptacle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

For the large 8-inch surface element order WB30M2. For the small 6-inch surface element order WB30M1.

The 6 Inch Burner Bowl is an OEM part for GE electric ranges and stovetops. Designed to fit beneath the 6-inch electric coil elements, this burner bowl serves as a catchment for spills, drips, and crumbs that occur during cooking. Not only does it help keep the cooktop area clean, but it also reflects heat back to the cookware, improving cooking efficiency.

Causes for replacement often include accumulated spills and high heat exposure over time, leading to aesthetic wear and tear or functional degradation.

Symptoms of a bad 6 Inch Burner Bowl include:

• Rusting or corrosion that can affect the reflectivity and heat distribution
• Deep scratches or dents that may harbor bacteria and debris
• Discoloration or stubborn stains that can't be removed, affecting the appearance of your cooktop

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Clip for door hinge.

Includes 12 washers.

Package of 12

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Includes: Anti-tip bracket, screws and instruction sheet.
