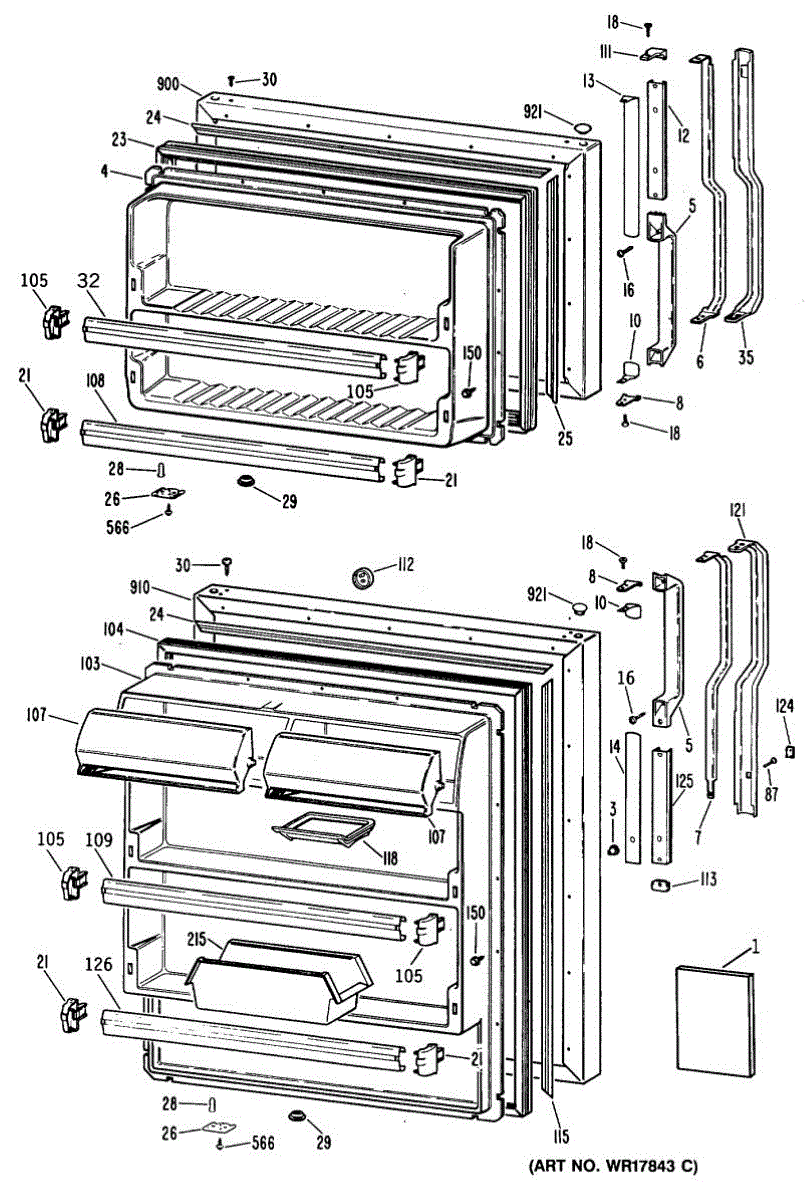

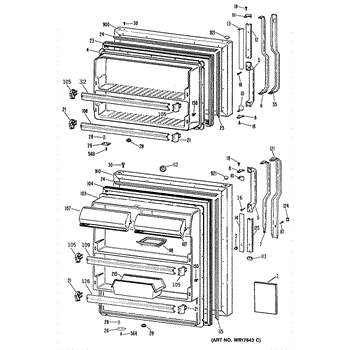

Parts for Ge TBE18DPERWH: 01 - Section1 Parts

The GE End Cap is an OEM replacement part designed for compatibility with various GE refrigerator models. This end cap supports your door shelf bars allowing your items to stay firmly in place. It is white in color and 2.5 inches high and 3 inches deep. This end cap is used for both left and right sides for both freezer and fridge doors.

Symptoms that may indicate the need to replace the end cap include:

• Cracks, chips, or visible damage to the existing end cap
• The end cap becoming loose or detached from the refrigerator cabinet

Causes of needing a new end cap can include physical impact or mishandling during moving or cleaning, exposure to extreme temperatures, or general wear and tear over an extended period of use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Gasket for the freezer is an OEM part for GE refrigerators. It creates a seal around the freezer door, preventing warm air from entering and cold air from escaping. This seal is crucial for maintaining the correct internal temperature, ensuring the freezer operates efficiently and food stays properly frozen. The gasket measures 19 1/2 inches wide by 28 inches tall.

Causes of a bad gasket can include wear and tear over time, exposure to extreme temperatures, or damage from frequent opening and closing of the freezer door. Accumulated dirt and grime can also affect the gasket's sealing ability.

Symptoms of a bad gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently or continuously
• Higher than normal energy bills
• Warm spots inside the freezer
• The door not closing properly or a visible gap between the door and the frame

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Includes 12 screws. Size: 8-18 ab.

The Gasket, FF is an OEM part for GE refrigerators. This gasket is designed to seal the fresh food door and prevent the escape of cold air and the entrance of warm air, the gasket plays a crucial role in the refrigerator's energy efficiency and in keeping food fresh for longer periods.

Causes of damage to the gasket can include normal wear and tear over time, frequent opening and closing of the refrigerator door, exposure to food acids and liquids that can degrade the rubber, and improper cleaning methods that may damage the gasket's integrity.

Symptoms of a bad Fresh Food Compartment Gasket include:

• Visible signs of wear, cracks, or tears in the gasket
• Difficulty maintaining the desired temperature in the fresh food compartment
• Condensation or frost buildup around the edge of the door
• The refrigerator running more frequently or for longer periods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The End Cap is an OEM replacement part for GE refrigerators. It is a small but essential component that serves to cover and protect the ends of various refrigerator parts, such as shelves or door bins.

Causes of a need to replace the end cap can include physical damage, such as cracks, chips, or breaks, as well as discoloration or fading over time due to exposure to moisture or cleaning products.

Symptoms of a faulty end cap:

• Cracks or breaks in the end cap material
• End cap becoming loose or detached from the shelf or bin
• Discoloration or fading, affecting the overall aesthetic appeal of the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This trim cap is a small plastic end cap that restores a clean finished edge on appliance trim and handles. It improves appearance and helps cover exposed fasteners or damaged edges for a neater look. What it does:

• Covers and protects exposed trim edges and screw openings to finish the appearance
• Helps prevent dirt and moisture from entering gaps behind trim pieces
• Replaces cracked, chipped, or missing end caps that make trim look worn
• Snaps into place on compatible trim or handle ends for a secure fit

• Disconnect power to the appliance before attempting any repairs
• Usually pushes or snaps into place; a flat tool may help to remove the old cap
• Inspect mating trim for damage before reinstallation; replace damaged trim if needed

Color: white. Measures about 1/2 an inch wide by 2/3 of an inch high.

May have to be cut to fit shorter applications.

Size: 8-32 t. Includes 12 screws.

Includes 12 washers.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

8-18 CA HX 1/2 S

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

A replacement motor start/run capacitor that helps restore reliable motor starting and smooth operation for compressors and fans. Installing the correct capacitor can reduce hard-starts, humming and intermittent motor operation. What it does:

• Provides the temporary boost motors need to start and stabilize while running.
• Helps compressors and fan motors start more easily and run more efficiently.
• Commonly associated with symptoms like humming, motors that won't start, intermittent operation, or reduced cooling performance.
• Prevents repeated motor stress that can lead to overload trips or premature motor wear.

• Disconnect power to the appliance before accessing electrical components.
• Discharge the capacitor and tag/photograph wire locations before removal to ensure correct reinstallation.
• Replace with the exact OEM part or an approved equivalent; do not bend or puncture the capacitor can.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This reversible door plug fills the unused mounting hole when you switch the door swing on your refrigerator. It restores a finished appearance and helps keep air and moisture from entering through the opening.

• Covers the unused door hole created during a door swing reversal
• Helps maintain proper sealing and resists drafts/condensation at the opening
• Restores a clean, finished, factory look to the door
• Common symptoms: missing or cracked plug, exposed hole, cosmetic gap on door edge

• Disconnect power before servicing any door components
• Gently pry out the old plug with a plastic trim tool to avoid scratches
• Align the new plug with the opening and press until fully seated and flush
• Verify the door closes properly and the gasket seals evenly
