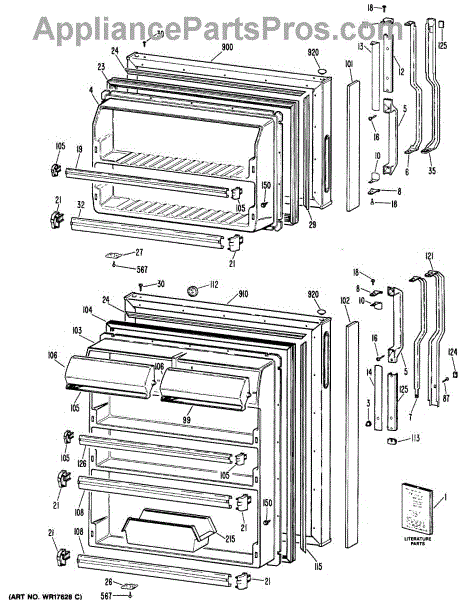

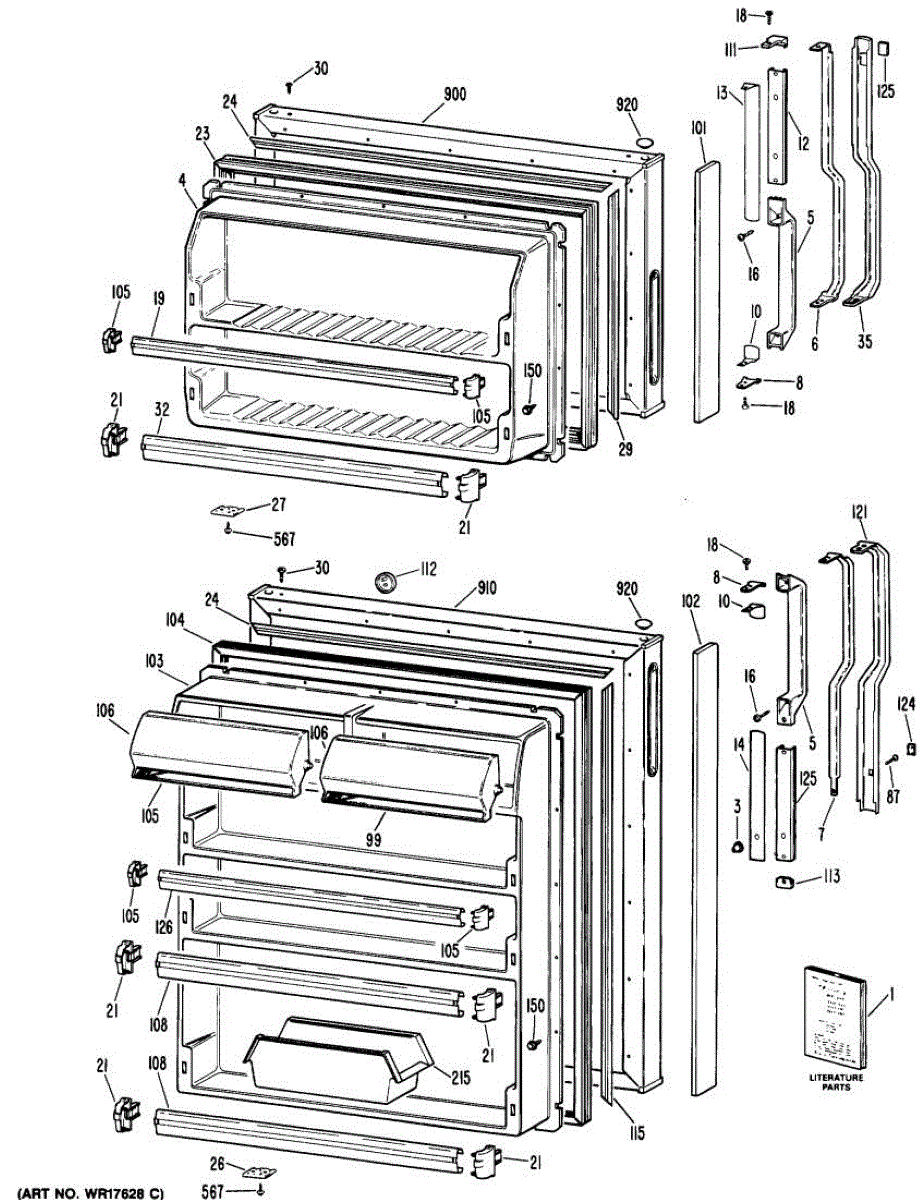

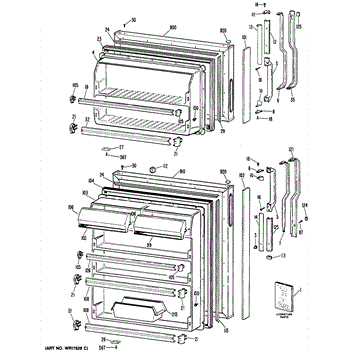

Parts for Ge TBX16DPDRHA: 01 - Section1 Parts

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

The GE End Cap is an OEM replacement part designed for compatibility with various GE refrigerator models. This end cap supports your door shelf bars allowing your items to stay firmly in place. It is white in color and 2.5 inches high and 3 inches deep. This end cap is used for both left and right sides for both freezer and fridge doors.

Symptoms that may indicate the need to replace the end cap include:

• Cracks, chips, or visible damage to the existing end cap
• The end cap becoming loose or detached from the refrigerator cabinet

Causes of needing a new end cap can include physical impact or mishandling during moving or cleaning, exposure to extreme temperatures, or general wear and tear over an extended period of use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Freezer Door Gasket is an OEM part for GE freezers. This gasket plays a crucial role in ensuring an airtight seal around the freezer door, preventing warm air from entering and cold air from escaping.

Over time, freezer door gaskets can wear out or become damaged due to frequent use, accidental damage, or exposure to extreme temperatures. It is essential to replace the gasket if you notice any of the symptoms mentioned above to ensure your freezer operates efficiently and to avoid unnecessary energy consumption.

Symptoms of a bad Freezer Door Gasket include:

• Visible tears, warps, or gaps in the gasket
• Condensation or frost buildup around the door edges
• Difficulty in maintaining consistent freezer temperatures
• An increase in energy consumption as the freezer works harder to maintain its internal temperature

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Includes 12 screws. Size: 8-18 ab.

The Fresh Food Door Gasket is an OEM replacement part for GE refrigerators. The gasket is responsible for creating an airtight seal between the refrigerator door and cabinet. This seal ensures that cold air remains inside and warm air stays out, maintaining the set temperature. The gasket measures  44" in length and 27" in width

This part fixes the following symptoms-

• Difficulty closing the door
• Visible gaps between the door and the appliance
• Condensation or frost buildup inside the appliance
• Rising temperatures in the refrigerator or freezer
• Increased energy consumption due to poor sealing

Causes of a bad door gasket can include normal wear and tear from frequent use, exposure to harsh cleaning chemicals that degrade the rubber, or accidental damage from closing the door on obstructions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The End Cap is an OEM replacement part for GE refrigerators. It is a small but essential component that serves to cover and protect the ends of various refrigerator parts, such as shelves or door bins.

Causes of a need to replace the end cap can include physical damage, such as cracks, chips, or breaks, as well as discoloration or fading over time due to exposure to moisture or cleaning products.

Symptoms of a faulty end cap:

• Cracks or breaks in the end cap material
• End cap becoming loose or detached from the shelf or bin
• Discoloration or fading, affecting the overall aesthetic appeal of the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Dairy Door is an OEM part for GE refrigerators. This door is designed to fit the dairy compartment, usually located on the refrigerator door, providing a dedicated storage space for butter, cheese, and other dairy products. The dairy door helps to keep these items separate from the main compartment, often slightly warmer to prevent butter from hardening too much, while still keeping cheese and other dairy products fresh.

Causes of damage to the dairy door can range from normal wear and tear to accidental impacts from loading groceries or containers pressing against it when the refrigerator door is closed.

Symptoms of a bad Dairy Door include:

• Cracks or breaks in the door
• Difficulty closing the door or it not staying closed
• Discoloration or damage

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

May have to be cut to fit shorter applications.

This trim cap is a small plastic end cap that restores a clean finished edge on appliance trim and handles. It improves appearance and helps cover exposed fasteners or damaged edges for a neater look. What it does:

• Covers and protects exposed trim edges and screw openings to finish the appearance
• Helps prevent dirt and moisture from entering gaps behind trim pieces
• Replaces cracked, chipped, or missing end caps that make trim look worn
• Snaps into place on compatible trim or handle ends for a secure fit

• Disconnect power to the appliance before attempting any repairs
• Usually pushes or snaps into place; a flat tool may help to remove the old cap
• Inspect mating trim for damage before reinstallation; replace damaged trim if needed

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Screw is an OEM replacement part for GE refrigerators. Countless screws are used throughout the refrigerator to securely hold parts in place.

Symptoms of a bad or missing screw can include:

• Rattling or vibration noises coming from inside the appliance
• Doors or other parts that are no longer properly aligned
• Increased frost or cold air leaks due to compromised seals

Causes may include normal wear and tear over time, accidental damage or loss of a screw during repairs, or improper assembly leaving crucial screws omitted.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations
