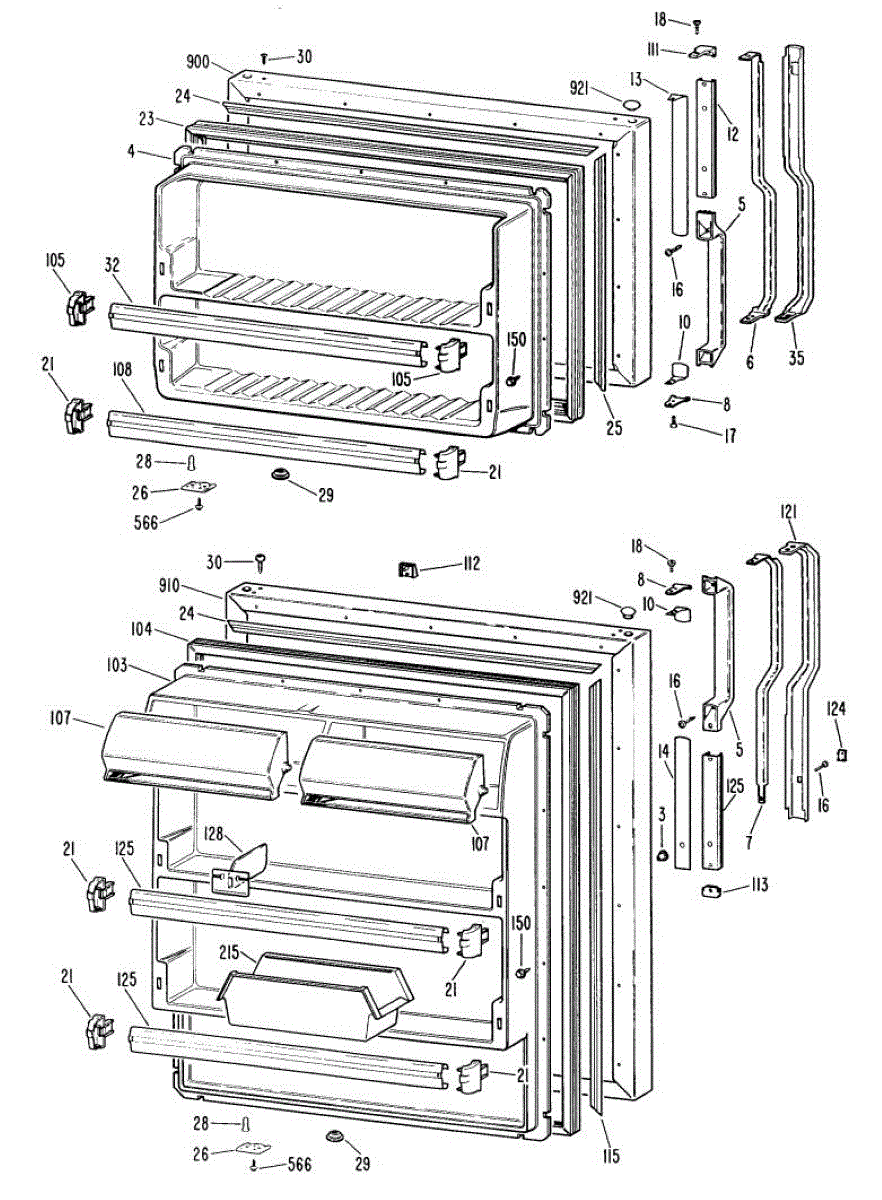

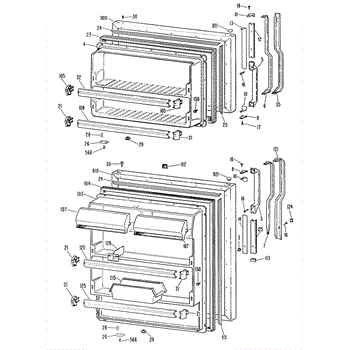

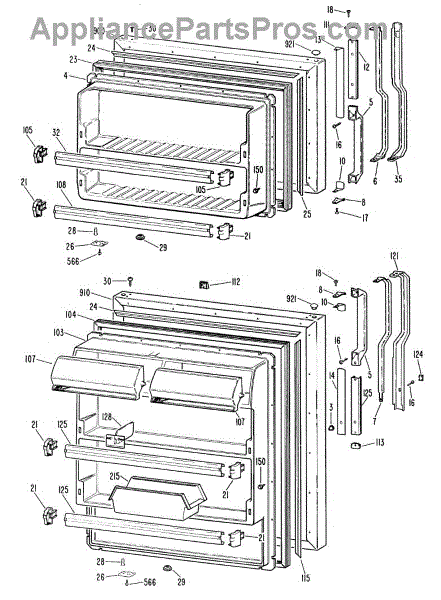

Parts for Ge TBX18NLJRAD: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

White plastic end cap for refrigerator door shelf bars. Snaps onto bar ends to hold shelves securely in place. Replace cracked, broken, or missing caps.

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Includes 12 screws. Size: 8-18 ab.

Covers and secures the ends of refrigerator door shelves and bins. Replace if cracked, broken, or missing to restore a finished look and prevent items from sliding off.

This is a snap-in plug button used to replace a missing or damaged control panel or trim cap on compatible GE appliances. It restores a finished look and helps keep the underlying fastener or opening covered. What it does:

• Covers and protects a small access hole or fastener opening on the appliance surface
• Snaps into place to hold trim panels or control overlays secure
• Replaces worn, cracked, or missing buttons that affect appearance or allow debris entry
• Common symptom: visible hole or loose/missing plug on control panel or exterior trim

• One plug button

• Snap-in installation; press firmly into the opening until fully seated
• No tools typically required; use a soft cloth to protect finish while pressing
• If the surrounding area is damaged or warped, part may not seat correctly
• Disconnect power to appliance before working near energized controls or panels

May have to be cut to fit shorter applications.

Size: 8-32 t. Includes 12 screws.

Corner cap for refrigerator exterior trim. Replaces cracked, broken, or missing caps on cabinet corners. Restores finished appearance and protects edges.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement screw for refrigerators. Secures handles, panels, and internal components. Order if yours is missing, stripped, or lost during repairs.

Panel mounting screw for refrigerators. Secures access panels, trim pieces, and internal brackets. Replace lost, stripped, or corroded fasteners.
