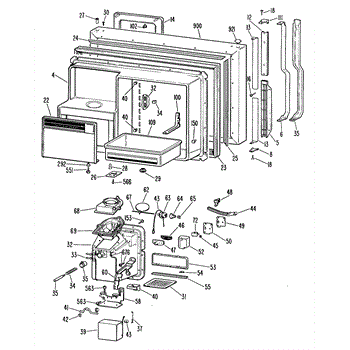

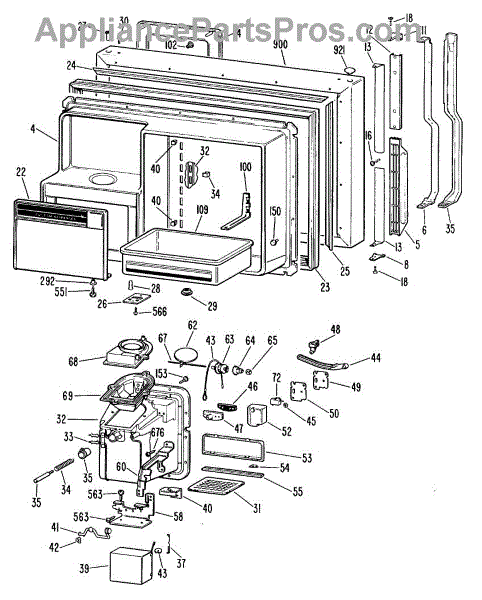

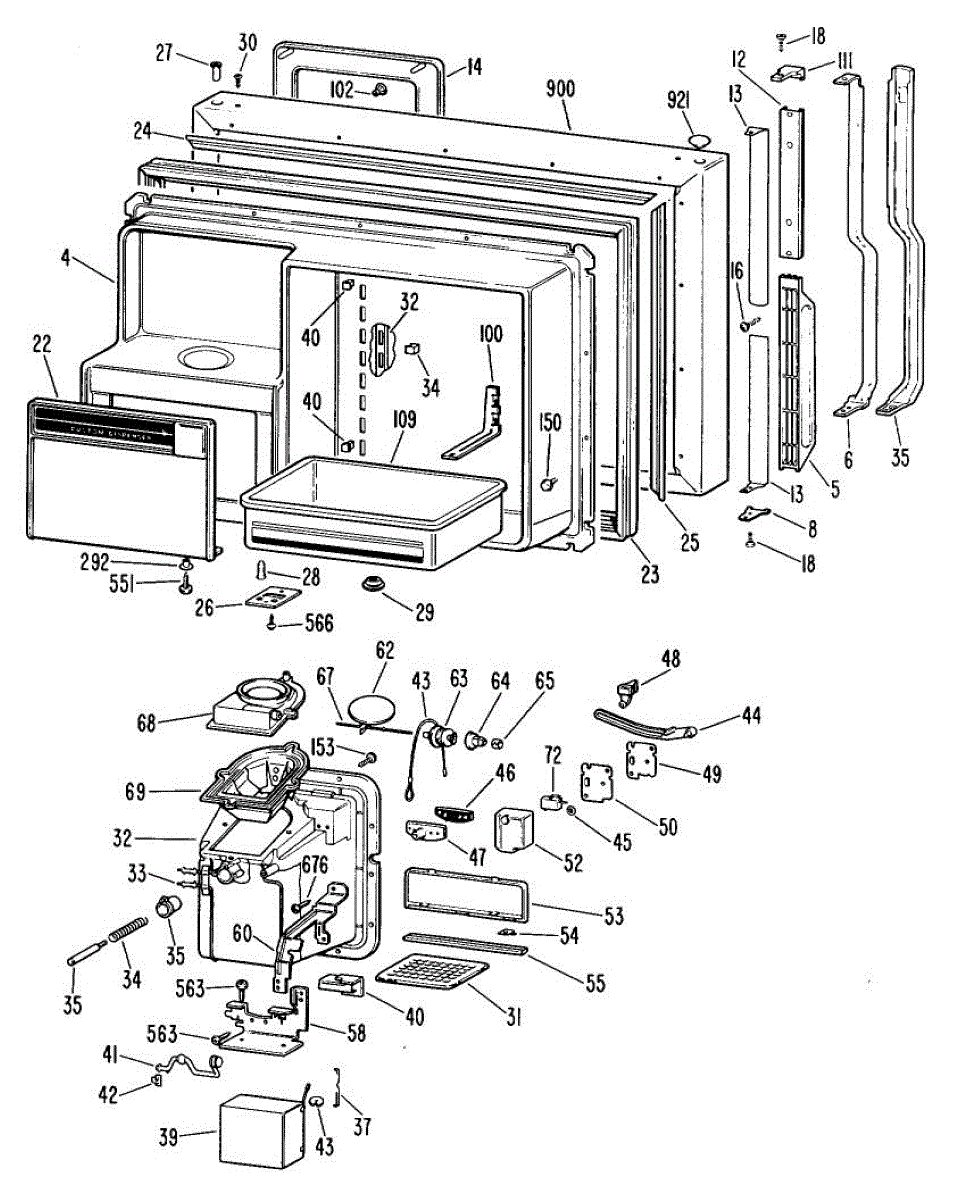

Parts for Ge TBX22RLGRWH: 01 - Section1 Parts

This is the "Attention installer" warning label used to remind homeowners about important installation steps and safety checks before operating the appliance. It helps reduce installation errors and promotes safe, compliant setup. What it does:

• Identifies critical installation or safety instructions that must be followed
• Alerts installers to components, connections, or procedures that need attention
• Helps prevent improper setup that can lead to performance issues or safety risks
• Serves as a visible reminder to confirm final checks before using the appliance

• Clean and dry the application surface before attaching for best adhesion
• Peel and press the label firmly to remove air bubbles; avoid stretching the decal
• Place where it is clearly visible during installation but will not interfere with operation
• Remove old adhesive residue before applying the new label

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser sleeve comes with plunger, sleeve, and screw.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

A replacement support recess that secures and centers a component in the appliance, restoring proper fit and stability. Replaces a worn or broken receptacle to stop misalignment and prevent loose or sagging parts. What it does:

• Acts as a mounting receptacle that holds and locates a related trim, panel, shelf or bracket
• Restores proper alignment so the secured component sits flush and functions correctly
• Stops movement, rattling or sagging caused by a cracked or missing receptacle
• Compatible with the appliance's original mounting points for a like-for-like repair

• One support recess

• Disconnect power to the appliance before starting any repair
• Remove any adjacent trim or panels as needed to access the recess; keep fasteners organized
• Press or snap the replacement into the original mounting location; may require light hand tools to remove the old piece
• Do not force parts; compare old and new parts for orientation before final installation

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This part has been discontinued and is no longer available.

Includes 12 screws. Size: 8-18 ab.

This trim cap is a small plastic end cap that restores a clean finished edge on appliance trim and handles. It improves appearance and helps cover exposed fasteners or damaged edges for a neater look. What it does:

• Covers and protects exposed trim edges and screw openings to finish the appearance
• Helps prevent dirt and moisture from entering gaps behind trim pieces
• Replaces cracked, chipped, or missing end caps that make trim look worn
• Snaps into place on compatible trim or handle ends for a secure fit

• Disconnect power to the appliance before attempting any repairs
• Usually pushes or snaps into place; a flat tool may help to remove the old cap
• Inspect mating trim for damage before reinstallation; replace damaged trim if needed

Includes 12 screws.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The defrost heater warms the evaporator during automatic defrost cycles to remove frost and ice, restoring airflow and cooling. Replacing a failed heater helps prevent frost buildup and maintain more consistent temperatures throughout the refrigerator.

• Melts frost from the evaporator coil during scheduled defrost cycles
• Helps maintain airflow and cooling performance between compartments
• Failure may cause heavy frost on the back wall/evaporator cover
• Can lead to reduced cooling, long run times, or fan noise from ice contact

• Disconnect power before servicing; wear appropriate gloves.
• Remove freezer shelves/ice maker as needed and the rear panel to access the evaporator area.
• Defrost any ice buildup and avoid damaging evaporator fins or wiring.
• Reuse original mounting hardware/clips as needed; check the defrost thermostat and control if frost issues continue.

This trough drain collects and channels defrost and condensation water from the evaporator area to the drain system, helping prevent leaks and pooling inside the refrigerator. It restores proper water flow and reduces standing water. What it does:

• Collects defrost/condensation runoff from the evaporator area and directs it to the drain pan.
• Helps prevent water pooling inside the fridge or under crisper drawers.
• Reduces ice buildup and musty odors caused by trapped moisture.
• Replaces cracked or warped troughs that allow leaks or improper drainage.

• Disconnect power to the appliance before beginning any work.
• Remove food, shelves and the evaporator cover/pan as required for access; follow the service manual for your model.
• Clean the drain tube and drain hole before installing to ensure proper drainage.

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks
