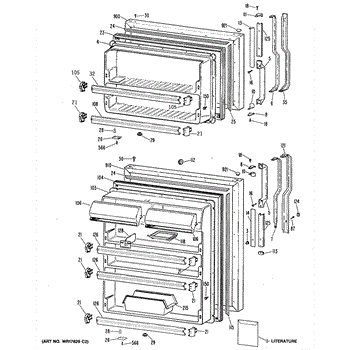

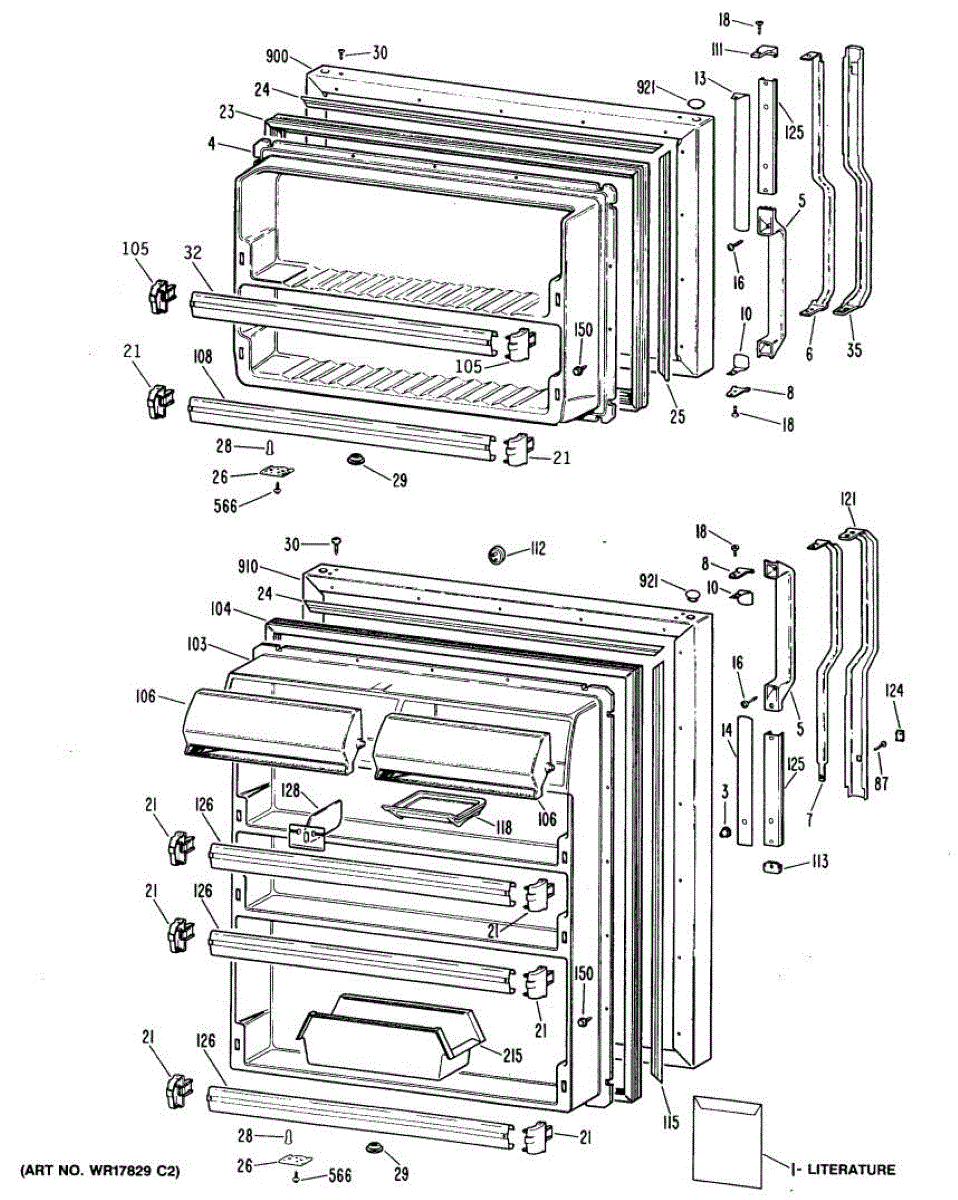

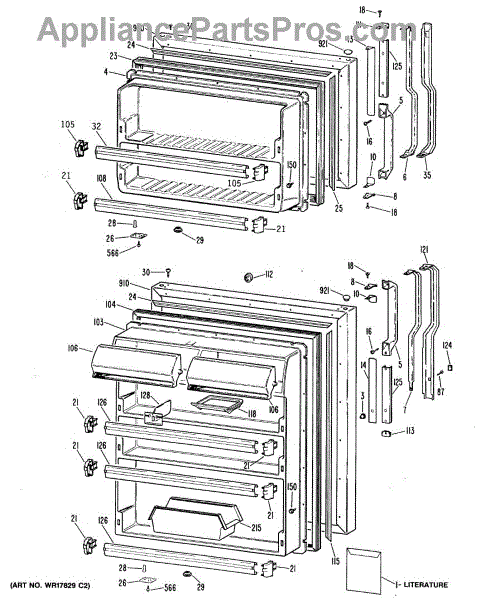

Parts for Ge TBX24TPERWH: 01 - Section1 Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Hardware fasteners for securing refrigerator door panels and components. Includes screws, nuts, and washers for assembly. Replace missing or stripped pieces.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

White plastic end cap for refrigerator door shelf bars. Snaps onto bar ends to hold shelves securely in place. Replace cracked, broken, or missing caps.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Includes 12 screws. Size: 8-18 ab.

Seals the fresh food door to keep cold air in and prevent temperature loss. Replace if cracked, warped, or loose to restore efficiency. Confirm fit.

Covers and secures the ends of refrigerator door shelves and bins. Replace if cracked, broken, or missing to restore a finished look and prevent items from sliding off.

May have to be cut to fit shorter applications.

Plastic end cap that covers exposed trim edges and screw openings on refrigerator handles and trim. Replace if cracked, broken, or missing for a finished look.

This small decorative cap covers screws that secure the refrigerator door handle, maintaining a clean appearance. Located over handle mounting points, replacement is needed when caps are missing, cracked, or discolored.

May have to be cut to fit shorter applications.

Secures water and drain tubing to prevent leaks, noise, and vibration. Replace if loose, cracked, or missing. Confirm fit with your model number.

Replacement screw for refrigerators. Secures handles, panels, and internal components. Order if yours is missing, stripped, or lost during repairs.

Mounting clip for refrigerators. Secures components and panels in place. Replace if clip is broken, cracked, or missing to restore proper fitment.
