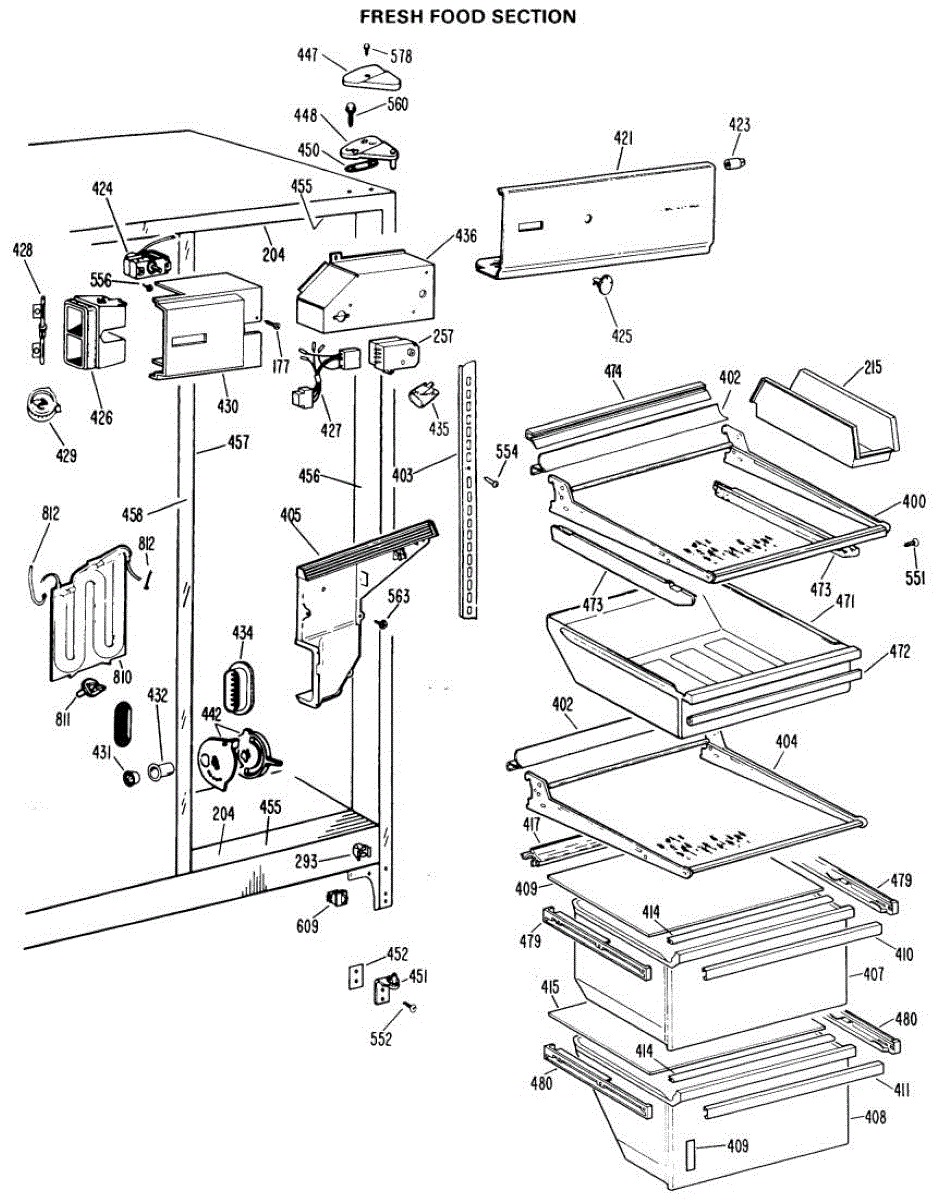

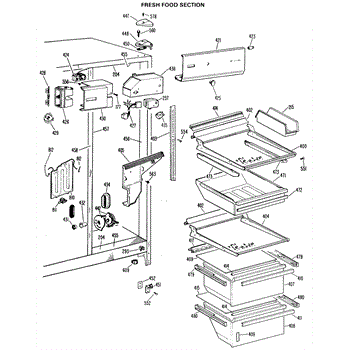

Parts for Ge TFX24ELB: 04 - Section4 Parts

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This shelf support secures a refrigerator shelf in place to keep food and containers stable. It restores proper shelf alignment and helps prevent sagging or falling items. What it does:

• Holds and stabilizes an interior refrigerator shelf or glass shelf edge
• Restores correct shelf height and level when a broken or worn support causes sagging
• Prevents shelves from shifting or dropping when loaded
• Helps noisy or unstable shelving sit firmly in place

• One shelf support

• Unplug the appliance or disconnect power before starting work
• Remove food and the shelf before replacing the support to avoid damage
• Usually installs by snapping or sliding into the shelf track; a flathead screwdriver may help with removal
• Do not force parts; if resistance is high, confirm alignment to avoid breaking surrounding trim

This part has been discontinued and is no longer available.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This breaker strip is the left-side trim piece that secures and seals freezer interior components, helping to maintain proper door fit and airflow. It replaces a worn or broken strip to restore a cleaner seal and finish. What it does:

• Provides a mounting/sealing surface along the left side of the freezer compartment to help hold liners and components in place
• Helps reduce gaps that can allow cold air loss or cause frost build-up when damaged
• Restores proper trim alignment and interior appearance
• Useful when the original strip is cracked, split, warped, or missing

• One left-side freezer breaker strip

• Inspect matching fasteners and mounting clips; replace any that are damaged
• Typical installation requires removing interior liners or trim pieces first — follow your model's service instructions
• Disconnect power to the appliance before performing interior repairs

Right side

Left side

The Crisper Drawer Slide is an OEM replacement part for GE refrigerators. It facilitates the smooth movement of the crisper drawer, ensuring easy access to fruits, vegetables, and other stored items. This is the right-hand side refrigerator crisper drawer slide. Approx. 14 7/8 inches long.

Symptoms of a bad Crisper Drawer Slide include:

• The crisper drawer sticking or jamming, making it difficult to open or close
• Visible wear or damage to the slide, affecting its smooth operation
• The drawer not aligning properly, leading to an insecure fit
• The inability to fully extend or retract the crisper drawer

Causes for a malfunctioning Crisper Drawer Slide can include wear and tear from regular use, the accumulation of debris obstructing the slide's path, or damage incurred from overloading the drawer.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For matching left-hand side order WR72X209.

Includes 12 screws. Size: 8-18 ab.

Package of 12

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement 5/16-inch icemaker tubing carries water to the ice maker. It helps restore proper flow and reduce leaks when the original line becomes brittle, cracked, or kinked, improving ice production reliability. What it does:

• Carries water from the inlet valve to the icemaker
• Replaces tubing that is brittle, cracked, or kinked
• Helps restore normal icemaker fill and ice production
• Can help stop leaks caused by a damaged water line

• 1 icemaker water tube (5/16 in.)

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water during line removal
• Route the new tube along the original path; avoid sharp bends and hot or moving components
• Tighten all fittings, restore water, and check all connections for leaks before powering on
