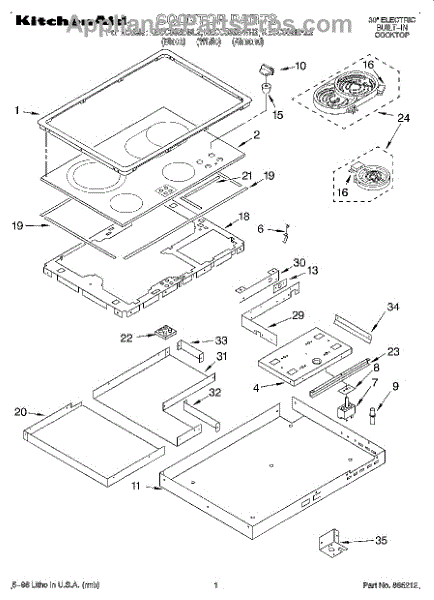

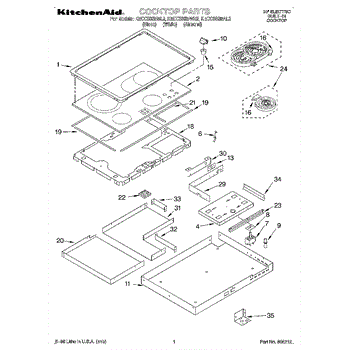

Parts for Kitchenaid KECC502BWH2: 01 - Section Parts

This part has been discontinued and is no longer available.

Size: 6-32 x 3/8 inch.

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This surface burner infinite switch regulates power to a cooktop element, letting you set and maintain the heat you choose. Replace a worn control to restore accurate temperature adjustment and reliable on/off operation.

• Regulates on/off cycling of power to the surface element to achieve the selected heat level
• Helps address issues like a burner that won't heat, is stuck on high, heats inconsistently, or won't turn off
• Restores smooth temperature changes as you turn the control knob
• Typical failure signs include dead burner, runaway heat, or erratic temperature control

• Disconnect power to the range or cooktop at the breaker before servicing
• Remove the control knob and open the control/back panel to access the switch
• Tag and transfer wires one at a time to the matching terminals on the new switch
• Reassemble and test the burner from low to high to confirm proper cycling

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

Color: Almond.

Color: White. Other colors: For black use WP9750372FF, for biscuit use WP9750372FC.

Color: Black. Measures about 2 inches in diameter. Other colors: For white use WP9750372FW, for biscuit use WP9750372FC.

Comes with limiter

This surface heating element restores reliable heat to an electric cooktop burner so pots and pans warm evenly and predictably. Replace a failed element to bring consistent performance back to your range or smooth-top cooktop.

• Supplies heat to a single cooking zone on an electric range or glass-top cooktop
• Replaces an element that is open, shorted, or intermittently heating
• Common symptoms: burner won't heat, heats unevenly, or only part of the zone glows
• Helpful when there is visible damage or hot spots on the element

• Disconnect power at the breaker; allow the cooktop to cool completely
• Access the element by lifting/removing the cooktop or from below
• Move wires one at a time to matching terminals; reuse any mounting clips/brackets as required
• Support the glass top during service and avoid stressing or scratching the surface

This surface heating element powers one of your range's top burners, restoring steady, responsive heat for everyday cooking. Replace a failed element to bring your cooktop back to consistent performance when boiling, simmering, or sautéing.

• Provides heat to the selected surface burner when the control is turned on
• Works with the burner switch to reach and maintain set temperatures
• Common symptoms of failure: burner won't heat, heats unevenly or intermittently, or shows visible damage/hot spots
• Helps resolve long heat-up times and inconsistent cooking results

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing.
• Access and mounting vary by model; note wire locations and transfer any brackets/clips from the original element.
• Inspect terminals and connectors; replace any heat-damaged wiring or receptacles before reconnecting.
• Handle by the frame and avoid stressing the element; ensure secure electrical connections before testing.
