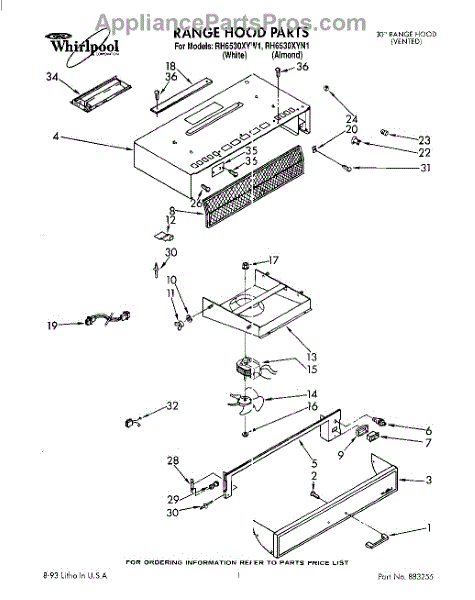

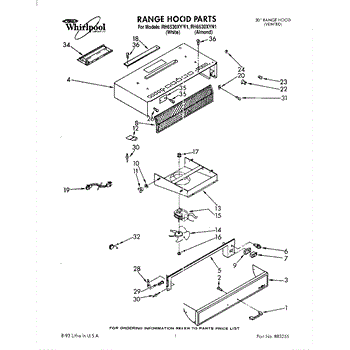

Parts for Whirlpool RH6530XYN1: 01 - Section Parts

This rocker switch is a direct-replacement control switch that restores reliable on/off or function selection for appliance control panels. It installs into the control bezel to replace a worn, broken, or unresponsive switch. What it does:

• Provides a tactile on/off or mode-selection action for a control circuit
• Replaces a cracked, stuck, or intermittently-working rocker that won't engage functions
• Restores electrical continuity where a failed switch prevents a feature from powering on
• Works as the user-interface actuator on many Whirlpool control panels

• One rocker switch

• Disconnect power before servicing to avoid shock or damage
• Access may require removal of the control panel or console; keep screws and fasteners organized
• Note wiring orientation or take a photo before disconnecting connectors to ensure correct reassembly
• Test the appliance function after installation; do not force the switch into place

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

This is the left hand hinge kit. This kit now includes the hinge, hinge housing, microswitch assembly, wire harness and instructions. For the right hand side order 00493360.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
