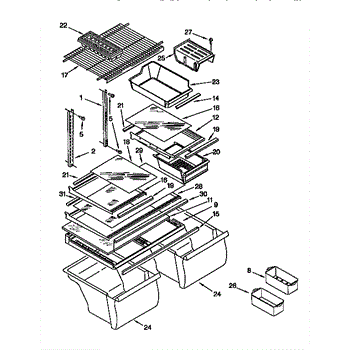

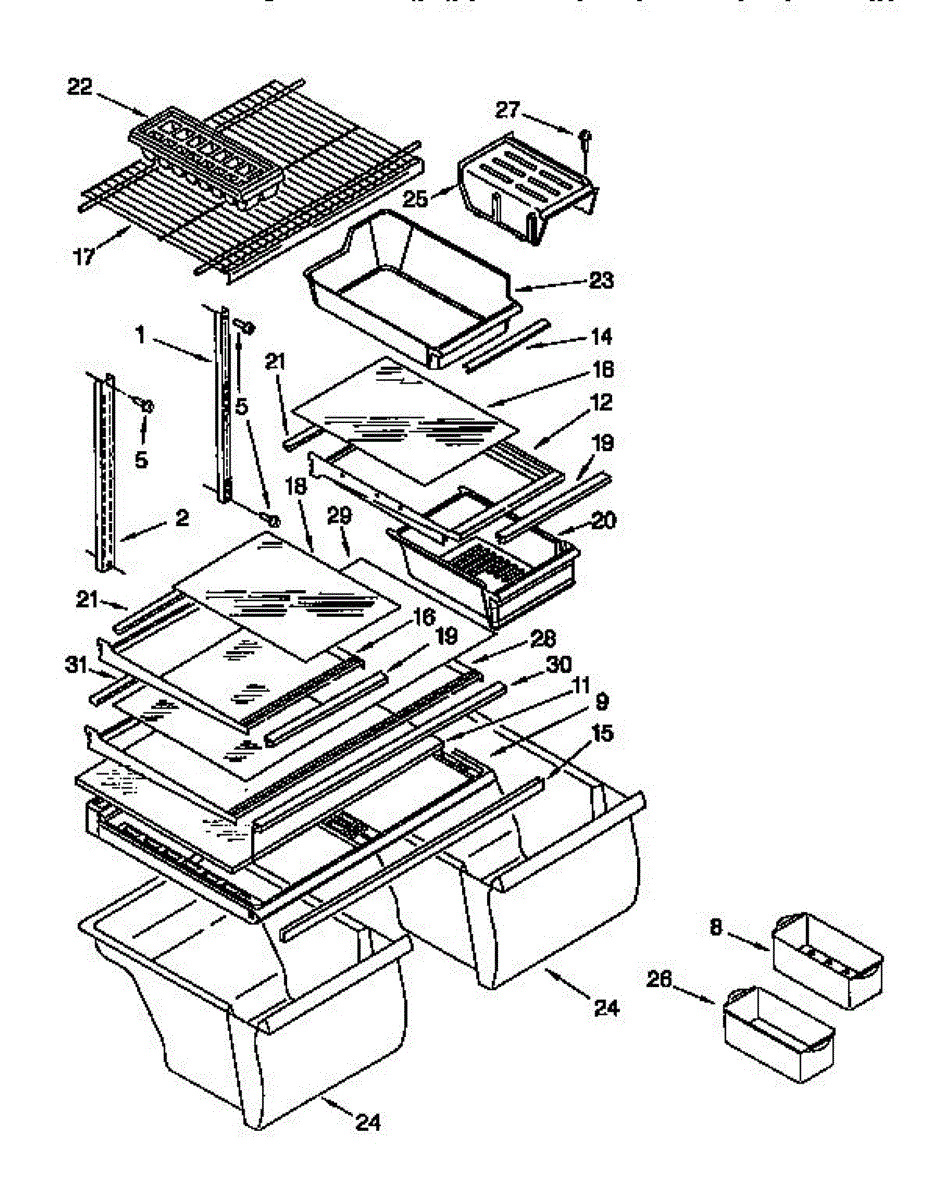

Parts for Kenmore 106.9650510 (1069650510, 106 9650510): Shelf Parts

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

The Crisper Cover Frame is an OEM part for Whirlpool refrigerators. This component supports the crisper drawer and serves as a shelf, providing a surface to hold and organize food items while also ensuring the drawer operates smoothly.

Over time, the crisper cover frame can become damaged due to regular use, excessive weight, or accidental impacts. When the frame is compromised, it can lead to issues with the drawer's alignment and functionality, making it difficult to store and access fresh produce effectively.

Symptoms of a bad crisper cover frame include:

• Cracks or visible damage to the frame
• The crisper drawer not sliding in and out smoothly
• The cover frame not sitting properly or securely within the refrigerator
• Food items not staying organized or supported on the shelf

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM replacement part for Whirlpool refrigerators. Located inside fridge storage compartments, the durable tempered glass provides a stable surface for arranging items. Note: Frame not included.

Symptoms of a cracked or damaged glass shelf include:

• Sharp, exposed glass edges posing injury risks when accessing the fridge
• Instability causing stored items to fall during opening
• Food spills or liquids seeping into the fridge walls
• Warping of shelf slide brackets from excessive weight loads

Causes relate to impact damage from overloading or appliance shifting. Normal wear from continuous use may also weaken shelf material integrity over 15+ years.

Compatible models include Maytag, Jenn-Air, Amana, and selected KitchenAid refrigerators.

This crisper cover support mounts to the refrigerator liner and holds the crisper cover frame/glass level. Replacing a broken or missing support restores a stable shelf surface and helps the crisper drawers slide and close properly.

• Supports the crisper cover frame/glass along the cabinet wall
• Maintains a level surface to help prevent sagging or glass shifting
• Keeps crisper drawers aligned and moving smoothly
• Common symptoms: cracked or missing support, shelf tilts, glass slips, drawers scrape or won't close fully

• Disconnect power and clear the shelf area
• Remove crisper drawers and lift out the cover/glass
• Release and remove the damaged support; snap or screw the new support into the same position
• Reinstall the cover and drawers; verify level fit

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

The Ice Pan is an OEM part for Whirlpool refrigerators. It is used to collect and store ice produced by the icemaker, ensuring a dedicated space for easy access and storage of ice. It measures approximately 11" W x 8" H x 20" D.

Causes of a bad ice pan can include cracks or breaks due to handling or impact, warping from temperature fluctuations, or general wear and tear over time. A damaged ice pan can lead to leaks or improper ice storage, impacting the overall functionality of the icemaker.

Symptoms of a bad ice pan include:

• Cracks or visible damage to the pan
• Leaks or water pooling in the freezer
• Ice not being stored properly or the pan not fitting correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Drawer is an OEM part for Whirlpool refrigerators. This drawer provides the best storage environment for fruits and vegetables, helping to maintain their freshness for longer periods. It works by controlling the humidity levels within the drawer, reducing the chances of premature spoiling.

The crisper drawer can deteriorate over time from overloading, impacts, or aging, affecting humidity control and leading to food spoilage.

Symptoms of a bad Crisper Drawer include:

• Cracks or breaks in the drawer that compromise its structural integrity
• Difficulty in sliding the drawer in and out due to damage or warping
• Excessive moisture accumulation inside the drawer, indicating a failure in humidity control
• Visible signs of wear that affect the drawer's appearance and functionality

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Size: 8 x 1/2 ab.
