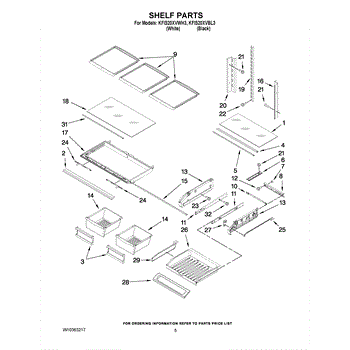

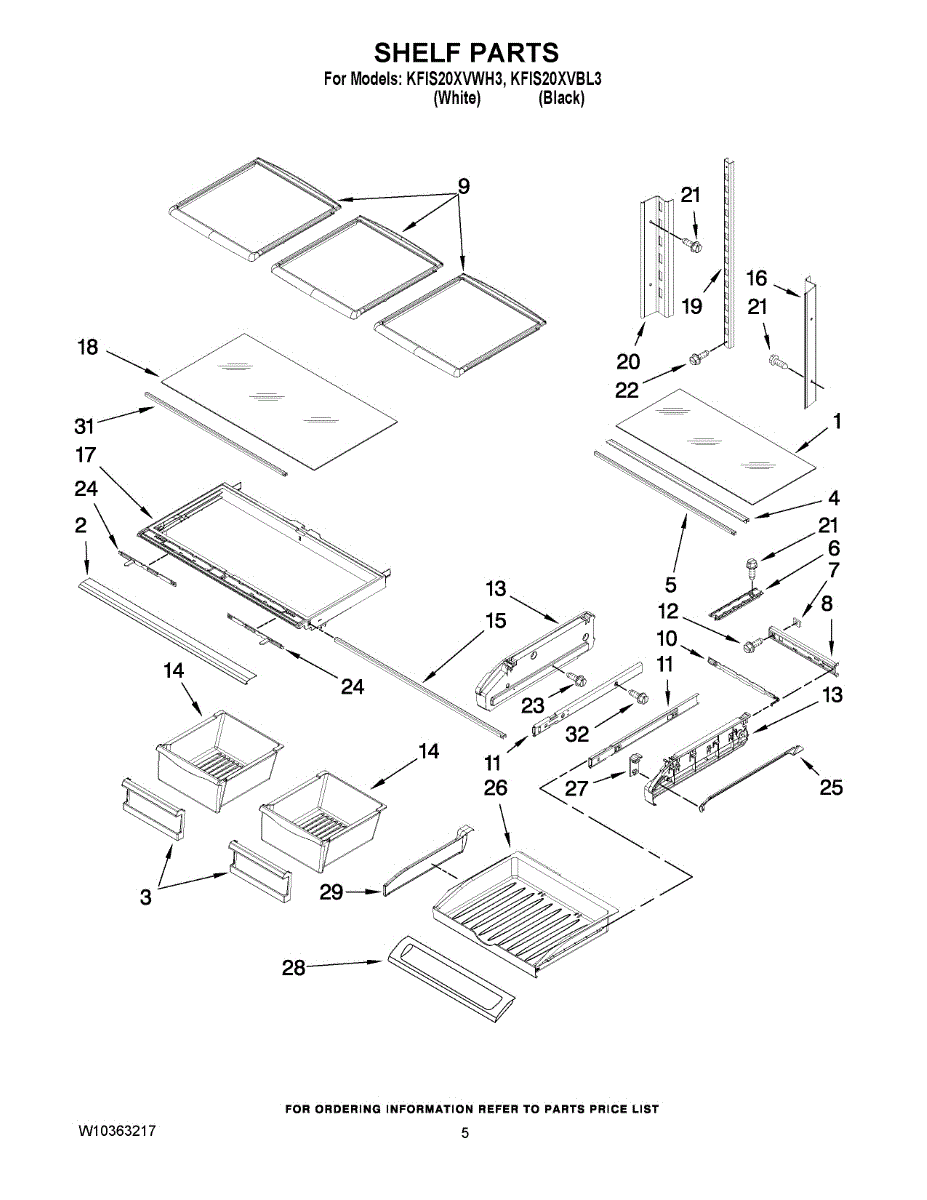

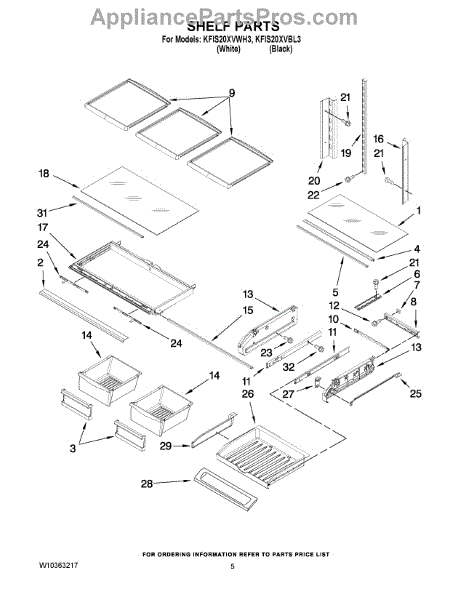

Parts for Kitchenaid KFIS20XVBL3: 03 - Shelf Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Glass shelf that provides a sturdy, flat surface for organizing refrigerator items and maximizing usable storage. Replaces damaged or missing shelves to restore stable support and proper spacing inside the fridge. What it does:

• Provides a stable surface for food containers, beverages and produce.
• Restores correct shelf height and spacing for efficient storage and door/drawer operation.
• Replaces cracked, chipped or broken glass to prevent items from falling or shifting.
• Installs into existing shelf rails to re-establish usable storage area.

• Remove all items from the shelf area and support the glass at both ends during removal and installation.
• Align the shelf with the existing rails and slide evenly until fully seated; do not force.
• Handle broken glass with heavy gloves and dispose of the old shelf safely.

Replace a cracked or missing crisper drawer face with this crisper pan front. It restores an intact front wall and handhold for the produce bin so the drawer looks clean and keeps contents properly contained.

• Forms the front wall and grasp point of the refrigerator's crisper drawer
• Helps keep produce contained and reduces spills into the fresh food section
• Direct replacement for a broken, cracked, or missing crisper front
• Helps restore proper drawer alignment and operation when the original front is damaged

• Disconnect power to the refrigerator before servicing.
• Pull out the crisper drawer and place it on a padded surface.
• Release retaining tabs or screws to remove the old front; transfer any reusable hardware or trim.
• Align and snap or fasten the new front to the drawer; reinstall the bin and test movement.

This exterior glass support holds the oven door's outer glass securely in place so the door stays aligned and the glass doesn't shift or rattle during use. Replaces a cracked, broken or missing support to restore proper door fit and function. What it does:

• Secures the outer oven door glass to the door frame so the glass remains stable
• Prevents glass movement, vibration, or noise when the door is opened or closed
• Helps maintain proper door alignment and a consistent seal
• Common symptom: loose, rattling or misaligned outer door glass

• One exterior glass support

• Disconnect power (and gas, if applicable) before starting any oven door repair
• Handle glass carefully; wear safety gloves and eye protection to avoid injury
• Installation usually requires removing the oven door panel and fastening the support with existing screws/clips

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

This slide temperature control is the user-access interface that moves the thermostat connection to select dryer heat levels. It restores responsive, indexed temperature selection for standard slide-style dryer controls. What it does

• Moves the internal contact to select low/medium/high heat settings for the dryer
• Replaces worn or loose slider that causes inconsistent or stuck temperature selection
• Helps correct symptoms such as inability to change heat level, intermittent temperature changes, or a slider that feels loose or won't stay in position
• Works as the mechanical interface between the console knob/lever and the dryer's control assembly

• One slide temperature control (single slider assembly)

• High-level replacement for users comfortable removing control consoles; disconnect power before service
• Handle control panel clips and trim carefully to avoid cracking plastic bezels
• Verify proper seating and alignment of the slider on the control shaft before reassembly

The Pantry Drawer Rail is an OEM part for Whirlpool refrigerators. This part allows it to slide in and out smoothly for easy access to stored food items.

Causes of a bad pantry drawer rail can include repeated heavy loads, general wear and tear, or accidental damage.

Symptoms of a bad pantry drawer rail include:

• Difficulty sliding the pantry drawer in and out
• Pantry drawer not staying in place
• Uneven or wobbly drawer movement
• Visible damage or bending of the rail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Note: Left Pantry End Cap

The Pantry End Cap is an OEM part for Whirlpool refrigerators. It provides structural support to the pantry drawer, ensuring smooth operation and proper alignment within the refrigerator.

Causes of a bad Pantry End Cap can include regular wear and tear, overloading the drawer, or accidental impact that causes the support to break or become misaligned. A damaged support can hinder the drawer's functionality and lead to difficulty in accessing stored items.

Symptoms of a bad Pantry Pantry End Cap include:

• Difficulty in opening or closing the pantry drawer
• The drawer not staying aligned or falling out of its track
• Cracks or breaks in the support structure
• Unusual noises when using the drawer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right Pantry End Cap

The Pantry END CAP is an OEM part for Whirlpool refrigerators. It functions as a structural component that helps to stabilize and support the pantry drawer, ensuring it slides smoothly and remains level within the refrigerator.

Symptoms of a bad Pantry END CAP include:

• The pantry drawer becoming difficult to open or close.
• Noticeable sagging or misalignment of the drawer, affecting its function.
• Unusual noises or resistance when moving the drawer, indicating improper support.

Causes of a bad pantry drawer support can include excessive weight in the drawer that exceeds design limits, physical impacts from loading or unloading items, or general wear and tear from frequent use.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the left-hand side Pantry Drawer Support, order part number WP12656105.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This component is designed to store fruits and vegetables in an organized and accessible manner within the refrigerator. It helps maintain optimal humidity levels to keep produce fresh for longer periods. The drawer measures approximately 12.847" Depth x 15.217" Width x 6.93" High. Please note, this part does not include the plastic faceplate. If your current drawer has one, you will need to transfer it to the new crisper.

Causes of a bad crisper pan can include cracks or breaks from overloading, impact damage from dropping or mishandling, and wear and tear from regular use. A damaged crisper pan can compromise its ability to maintain proper humidity levels and safely store your produce.

Symptoms of a bad crisper pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out of the refrigerator
• Reduced effectiveness in keeping produce fresh
• The pan not fitting securely in its designated slot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw fastens appliance components securely in place to maintain proper alignment and a tight, rattle-free fit. Install it when a fastener is missing, stripped, or rusted to restore stability and prevent loosening.

• Secures brackets, panels, trim, and assemblies inside the appliance
• Helps maintain proper alignment and support of mounted parts
• Can reduce vibration, buzzing, or rattling from loose hardware
• Replace when the original screw is missing, corroded, or the head/threads are stripped

• Disconnect power; for refrigerators, also shut off the water supply before servicing
• Use the correct driver bit to avoid stripping the screw head
• Start threads by hand to prevent cross-threading, then tighten snugly without overtightening
• Reuse any original washers or spacers if required by your application

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement control knob that restores positive, easy-to-use control of appliance settings. Installs quickly to replace a cracked, stripped or missing knob so you can accurately select cycles, temperatures or timers. What it does:

• Fits onto the appliance control shaft to turn and select settings.
• Replaces knobs that are cracked, loose, hard to turn, or have stripped splines.
• Restores secure grip and precise selection of cycles, temperatures or timers.
• Matches factory fit and appearance when installed.

• Always disconnect power (and gas if applicable) before servicing the appliance.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob fully onto the shaft.
• If the knob does not seat easily, check shaft alignment and spline orientation before applying force.

The Lid Assembly, Pantry is an OEM part for Whirlpool refrigerators. It serves as a cover for the pantry drawer, helping to maintain the proper temperature and humidity levels to keep produce fresh. The lid measures approximately 30 inches by 6 inches.

Causes of a bad Lid Assembly, Pantry can include accidental damage such as cracks or breakages, warping from the cold environment within the refrigerator, or issues with the sealing edge that prevents it from closing properly.

Symptoms of a bad Lid Assembly, Pantry include:

• Difficulty fitting the lid on the pantry drawer.
• Cracks or breaks that compromise the seal.
• Warping that prevents the lid from lying flat.
• Condensation inside the pantry drawer due to poor sealing.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This CRSP brace is a replacement support component that helps stabilize and align the 36-inch crisp/crisper assembly for proper drawer operation and fit. Restores secure mounting and reduces movement or vibration of the crisp area. What it does:

• Provides structural support for the crisp/crisper assembly so drawers and panels sit squarely
• Helps stop sagging, misalignment, rattling or binding of the crisp area
• Maintains correct spacing for smooth opening and closing
• Replaces worn or damaged braces that compromise stability

• One CRSP brace

• Disconnect power to the appliance before beginning work to avoid electrical or mechanical hazards
• Basic hand tools are typically required; retain original fasteners
• Follow OEM service literature for exact removal and installation steps and torque recommendations
• Support panels or drawers while removing/installing the brace to prevent damage or injury

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
