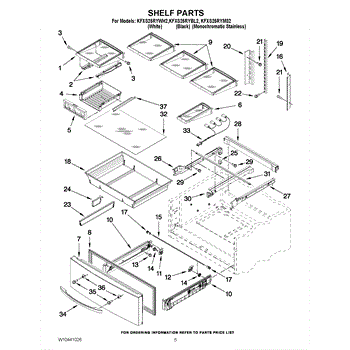

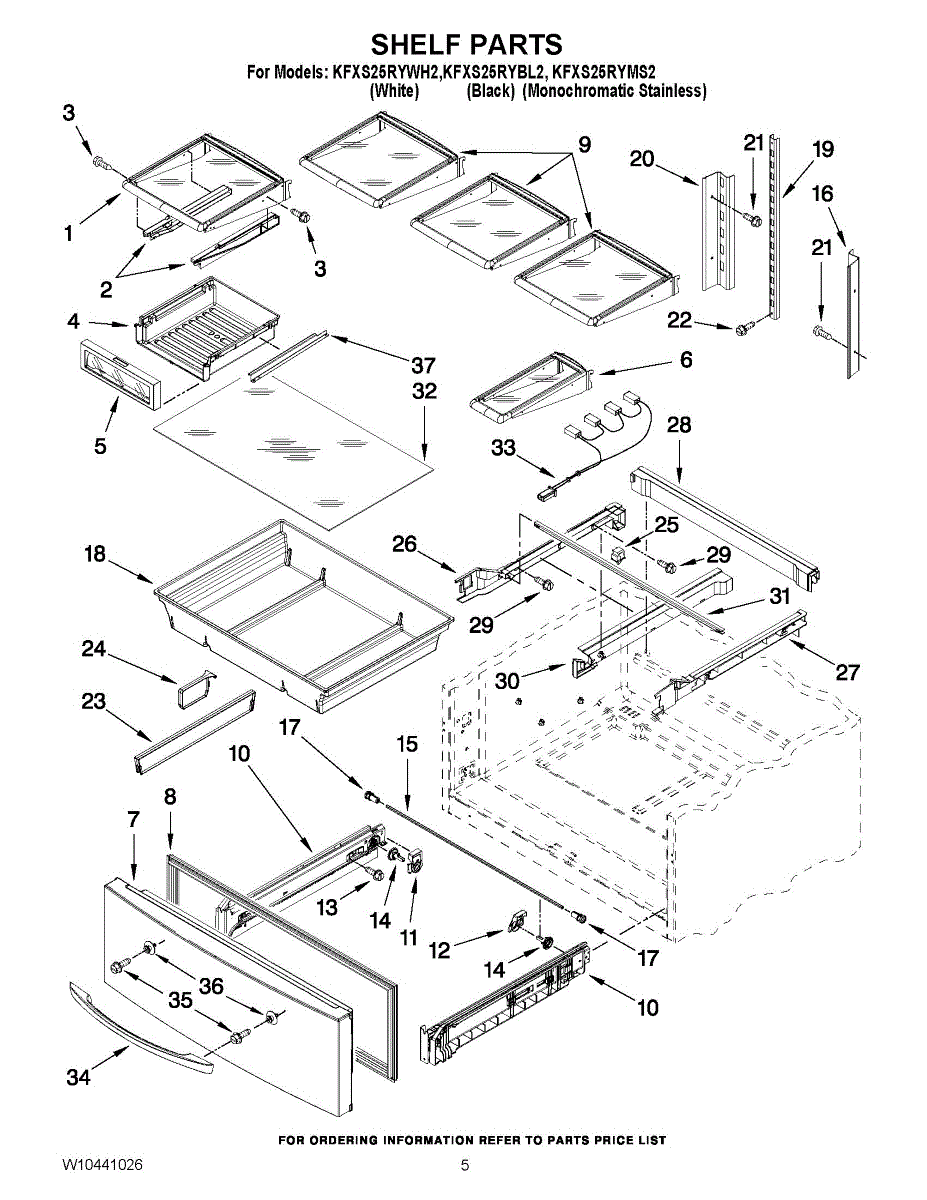

Parts for Kitchenaid KFXS25RYBL2: 03 - Shelf Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Replacement glass shelf for bottom-mount refrigerators. Provides storage surface in main compartment. Replace if cracked, chipped, or broken.

Replacement roller pan slide for refrigerator drawers. Replace if pans bind, stick, or slide unevenly. Restores smooth gliding operation. Check fit.

Drawer slide assembly with runner, roller, and pan for refrigerator drawers. Replaces worn, cracked, or broken slides causing sticking or misalignment.

Replacement 8-18 threaded screw for refrigerators and washers. Secures panels, brackets, and internal components. Needed when original is lost or damaged.

Molded deli pan that holds meat and deli items inside your refrigerator drawer. Replace if cracked, broken, or missing to restore organized food storage.

Replaces the front panel on your refrigerator deli drawer. Restores a finished appearance and provides the mounting surface. Needed when cracked or damaged.

Glass cantilever shelf for your refrigerator's fresh food compartment. Replaces cracked, broken, or missing shelves above vegetable bins.

Seals your freezer door to maintain cold temperatures and prevent frost buildup. Replace when worn or damaged to restore efficiency. Verify fit with your model.

Replacement gasket that restores a watertight seal at the factory connection to help prevent leaks and protect floors and cabinetry from water damage. Use to replace cracked, hardened, or torn seals. What it does:

• Seals mating surfaces to stop water leakage and reduce moisture-related damage.
• Common symptoms it helps address: visible leaks, pooled water under the appliance, or degraded/rubbery gasket material.
• Replaces worn, cracked, stiff, or torn seals to restore proper sealing performance.
• Seats into the original gasket groove—ensure the seal is fully seated with no gaps.

• Disconnect power and water supply before starting any service.
• Remove the old gasket, then clean and dry the mating surfaces and gasket groove.
• Press the new gasket into the groove evenly and inspect for full engagement around the perimeter.
• Restore power/water and run a short test cycle; check thoroughly for leaks before returning the appliance to regular use.

Ice clumping or frost around your dispenser? This ice chute door gasket seals out warm air to prevent buildup. Straightforward DIY replacement.

Replacement glass shelf for your refrigerator. Restores storage space when original is cracked, chipped, broken, or missing. Easy-to-clean surface.

This is a slide rail that mounts inside the refrigerator or freezer section and allows a storage drawer to glide in and out smoothly. It attaches to the interior wall and supports the drawer's weight during operation. Replace this rail if the drawer is difficult to open or close, feels wobbly, sits unevenly, or if the rail is cracked or bent.

This adapter connects the appliance's water line to the inlet fitting, providing a secure path for water flow to components like ice makers and dispensers. It helps restore proper water delivery and prevents loose or leaking connections. What it does:

• Creates a sealed connection between the supply line and the appliance inlet
• Restores proper water flow when a worn or damaged connection causes low or no water delivery
• Stops leaks caused by cracked or loose fittings at the inlet
• Works where a direct hose-to-inlet connection needs a small matching adapter

• One adapter as shown

• Disconnect power and shut off the water supply before starting any work
• Verify correct orientation and thread engagement; hand-start threads then snug with a wrench—do not overtighten
• Inspect nearby hoses, seals, and fittings; replace if cracked or damaged

Drive gear for bottom-mount refrigerators. Transmits motor motion to operate mechanisms. Replace when gear teeth are worn, stripped, or broken.

This is a protective cover that fits over the right-side spur gear assembly inside the refrigerator. It shields the gear mechanism from debris and helps keep the moving components properly aligned and functioning smoothly. Replace this cover if it is cracked, broken, or missing, which can expose the gear to damage and lead to noisy operation or mechanical failure in the affected component.

Replacement cover cap for bottom-mount refrigerators. Installs on interior or exterior components. Needed when original is cracked, broken, or missing.

Secures panels, brackets, and internal components. 10-16 thread fastener for sheet metal and plastic mounting. Replace missing or stripped screws.

Refrigerator shelf support ladder that secures and stabilizes shelving inside the compartment. Replace if cracked, broken, or missing to restore proper shelf support.

Secures the gear mechanism for smooth freezer drawer operation. Replace if clip is broken, cracked, or missing to restore proper drawer function.

Utility pan for bottom-mount refrigerators. Installs inside the fresh food compartment to hold items. Replace if cracked, broken, or missing.

Shelf support ladder for refrigerators. Installs on interior walls to hold shelves in place. Replace if cracked, broken, or missing for proper support.

Shelf support ladder for refrigerator compartments. Installs on interior side walls to hold and guide adjustable shelves. Replace if cracked or broken.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

Replacement shelf divider that separates and organizes items in your refrigerator. Needed when original is cracked, broken, or missing.

Plastic divider that separates compartments in your refrigerator's freezer drawer. Replace if cracked, broken, or missing to restore organization.

Refrigerator light won't turn on or off when opening the door? This door light switch controls interior lighting. DIY repair in under 10 minutes.

This slide rail system allows your refrigerator drawer to extend and retract smoothly on ball bearings or rollers. It provides stable support and easy access to the drawer contents while maintaining proper alignment. Replace these rails if your drawer sticks, doesn't slide smoothly, or falls off track when opened.

Replacement shelf rail for refrigerators. Guides sliding shelves or drawers smoothly in and out. Replace if cracked, broken, or worn to restore alignment.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This is a plastic cover that fits over the left-hand pantry rail inside the refrigerator compartment. It provides a finished appearance and helps secure the pantry shelf or drawer rail in place. Replace it if the cover is cracked, broken, or missing, which can cause the shelf or drawer to feel loose or unstable.

Replace cracked or shattered glass shelves in your refrigerator. Tempered glass construction provides sturdy storage surface. Direct fit replacement.

Replacement door handle for your refrigerator. Installs on the exterior door to provide grip for opening and closing. Order when cracked or broken.

Replacement door handle for refrigerator. Installs on the exterior door panel. Order when your original handle is cracked, broken, or missing.

Threaded anchor that secures refrigerator door handles to the door panel. Replace if cracked, stripped, or missing to properly mount your handle hardware.

Slide rail for refrigerator drawers. Mounts to the drawer frame to provide smooth gliding support. Replace if cracked, bent, or causing rough sliding.
