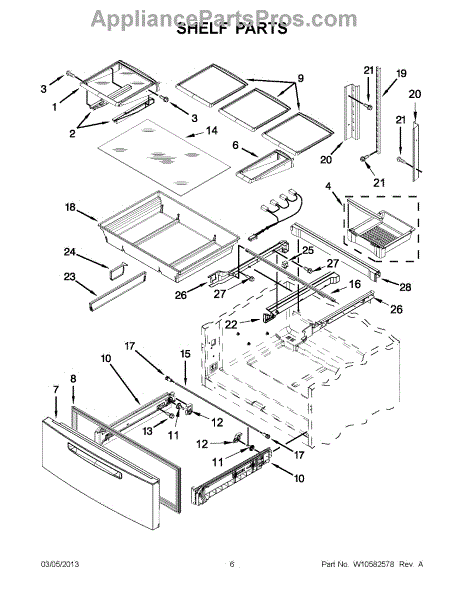

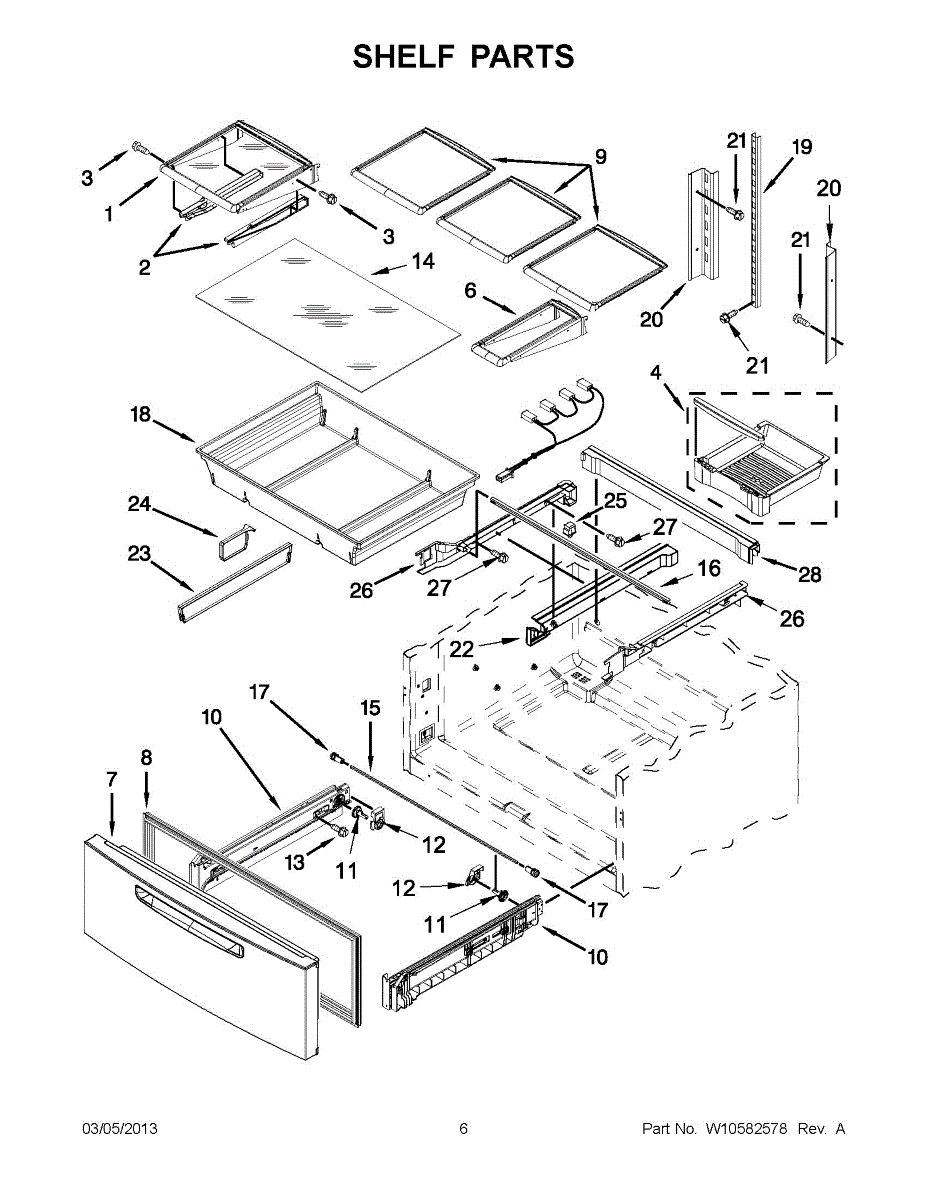

Parts for Maytag 5VMFX257AA01: 03 - Shelf Parts

This shelf glide supports and guides a refrigerator glass shelf, restoring smooth movement and stable shelf positioning so stored items sit level. Use it to replace a worn or broken glide for safer, quieter operation. What it does:

• Guides the glass shelf along its track and helps keep the shelf level while sliding
• Replaces broken, cracked, worn, or missing glides that cause shelves to bind or fall out
• Reduces rattling or uneven movement from a damaged or loose glide
• Restores proper shelf alignment so items stay secure when opening or closing

• Remove food and the affected shelf before replacing the glide; handle glass with care
• Wear cut-resistant gloves when handling glass or damaged parts to avoid injury
• Align the glide with the track and press or snap it into place per the OEM diagram; verify the shelf seats and slides smoothly

RIGHT HAND GLIDE

The glide is an OEM replacement part for Whirlpool refrigerators. These glides are responsible for facilitating easy insertion and removal of the snack pan shelf from the refrigerator compartment.

Causes of bad glides can include wear and tear over time allowing increased play, compression, or cracking from repeated loading/unloading.

Symptoms of bad glides include:

• Resistance or difficulty when moving the bin
• Loose fit that causes the bin to shift out of place
• Noisy operation or vibration from the glides
• Complete breakage or separation of the glide components

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement snack pan is the refrigerator drawer that slides on existing rails to store snacks and deli items. Replace a cracked or missing bin to restore smooth operation and organized storage in your fresh food compartment.

• Provides a dedicated storage bin in the fresh food section
• Slides on factory tracks for easy access and organization
• Restores proper fit and smooth sliding when the original drawer is damaged or missing
• Common symptoms: cracked bin, broken tabs or front lip, drawer falls off tracks or sticks

• Empty the drawer; pull out to the stop and lift the front to clear the stops
• Transfer any removable inserts from the old pan if applicable
• Align the new pan with the tracks and slide fully into place
• Handle shelves and glass carefully; do not force plastic parts

This gasket seals the refrigerator's dispenser ice chute door, blocking warm, humid air from entering the chute. A tight seal helps prevent frost buildup, condensation, and ice clumping around the dispenser for consistent performance.

• Creates an airtight seal around the dispenser ice chute door
• Helps reduce frost/ice accumulation in the chute
• Helps minimize sweating/condensation at the dispenser
• If worn or torn, you may notice frost in the chute, ice clumping, moisture around the dispenser, or a draft

• Disconnect power before servicing the dispenser area
• Remove the dispenser trim/control to access the ice door assembly
• Install the gasket evenly on the ice door; ensure full, uniform contact
• Reassemble and confirm the door moves freely and seals completely

The Glass Shelf is an OEM part for Whirlpool refrigerators. As an internal storage component, the glass shelf provides an adjustable platform to organize grocery items in refrigerator compartments.

Causes of a bad glass shelf could be repeated cracking or chipping of glass over time due to the impact of falling items or bottle vibrations. Edge damage may occur from sliding shelving in and out of position.

Symptoms of a bad glass shelf include:

• Visible cracks, chips, or fractures in the material
• Compromised stability no longer safely holds weight
• Warping or bending of shelf affecting functionality

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some KitchenAid models.

This adapter connects the appliance's water line to the inlet fitting, providing a secure path for water flow to components like ice makers and dispensers. It helps restore proper water delivery and prevents loose or leaking connections. What it does:

• Creates a sealed connection between the supply line and the appliance inlet
• Restores proper water flow when a worn or damaged connection causes low or no water delivery
• Stops leaks caused by cracked or loose fittings at the inlet
• Works where a direct hose-to-inlet connection needs a small matching adapter

• One adapter as shown

• Disconnect power and shut off the water supply before starting any work
• Verify correct orientation and thread engagement; hand-start threads then snug with a wrench—do not overtighten
• Inspect nearby hoses, seals, and fittings; replace if cracked or damaged

This drive gear transmits motor motion into the washer transmission so the tub can agitate and spin. Replacing a worn or broken drive gear restores proper drivetrain engagement and reduces grinding or slipping symptoms. What it does:

• Transfers rotational force from the motor/shaft to the transmission or agitator assembly
• Stops grinding, slipping, or intermittent agitation caused by damaged gear teeth
• Helps restore normal spin and agitation cycles when drivetrain wear is the cause
• Works as a mechanical replacement part—does not include seals or bearings

• One drive gear

• Disconnect power and water before beginning any repair
• Access requires removing the washer cabinet or transmission cover; follow the manufacturer's service manual
• Inspect adjacent components (shaft, retention clip, seals) and replace if damaged

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and stable surface for storing food items inside the fridge. The shelf is made from durable tempered glass, designed to hold various items while allowing for easy visibility and cleaning.

Causes of a bad glass shelf can include breakage due to heavy loads, accidental impact, or thermal stress from temperature changes.

Symptoms of a bad glass shelf include:

• Visible cracks or chips in the glass
• The shelf not fitting securely in place
• Difficulty in sliding the shelf in or out
• Food items not being properly supported

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

The Freezer Drawer Gear Clip is an OEM part for Whirlpool refrigerators. It is designed to secure the gear mechanism that allows the freezer drawer to slide in and out smoothly. This clip ensures that the drawer operates efficiently, providing easy access to the freezer compartment.

Causes of a bad gear clip can include wear and tear from regular use, damage due to overloading the drawer, or breakage from accidental impact. A faulty gear clip can impair the drawer’s movement and make it difficult to open or close properly.

Symptoms of a bad refrigerator freezer drawer gear clip include:

• The freezer drawer not sliding smoothly
• Difficulty in opening or closing the drawer
• The drawer coming off its track
•  Unusual noises during the drawer’s operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This genuine factory-style divider separates the crisper/deli drawer to help organize food and keep items from shifting during use. It restores proper spacing so fruits, vegetables and deli items stay organized and easier to access. What it does

• Creates a stable partition inside the crisper or deli drawer to keep different foods separated
• Helps prevent items from sliding together when opening and closing the drawer
• Maintains intended airflow and organization in the drawer area
• Reduces the chance of spills and cross-contamination between stored items

• One divider designed for the crisper/deli drawer

• Simple push-in or slide-in installation; handle gently to avoid cracking plastic
• Inspect mating slots or rails and clean any debris before installing the divider
• If access requires removing the drawer, support it fully to avoid dropping
• For safety, unplug the appliance or turn off power at the breaker before removing interior components if working near electrical parts

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement rail mounts inside your appliance to support or retain a bin, drawer, rack, or shelf. Replacing a cracked or missing rail restores proper alignment, secure fit, and smooth operation.

• Supports and retains the mating bin, drawer, rack, or shelf in the correct position
• Helps keep components level and aligned to prevent binding, popping off, or spills
• Provides stable guidance or stop points so parts move and seat properly
• Typical symptoms: wobble or sagging, difficulty opening/closing, parts falling out, visible cracks or broken tabs on the rail

• Disconnect power before servicing; remove items from the affected area
• Remove the drawer/bin/rack, then release locking tabs or screws to take out the damaged rail
• Transfer any reusable clips or end caps from the old rail, align, and secure the new rail; test movement before reloading

This replacement rail supports and guides a sliding component inside your appliance, helping drawers, shelves, or racks move smoothly and stay properly aligned. What it does:

• Provides a track for a drawer, shelf, or rack to slide in and out
• Helps keep the sliding component level and correctly aligned
• Reduces friction and binding during operation
• Common failure signs include sticking or uneven movement, tilting on one side, popping off the track, or visible cracks/broken tabs

• 1 rail

• Disconnect power before servicing; wear cut-resistant gloves around metal edges
• Remove the affected drawer/shelf/rack and the damaged rail
• Reuse existing screws/fasteners and transfer any clips or end caps from the old rail if applicable
• Secure firmly; test for smooth travel before reloading

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
