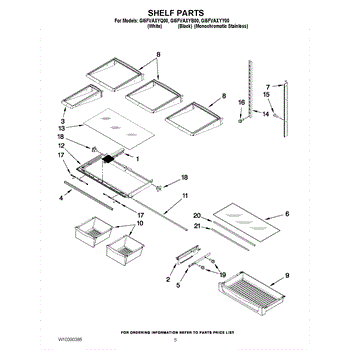

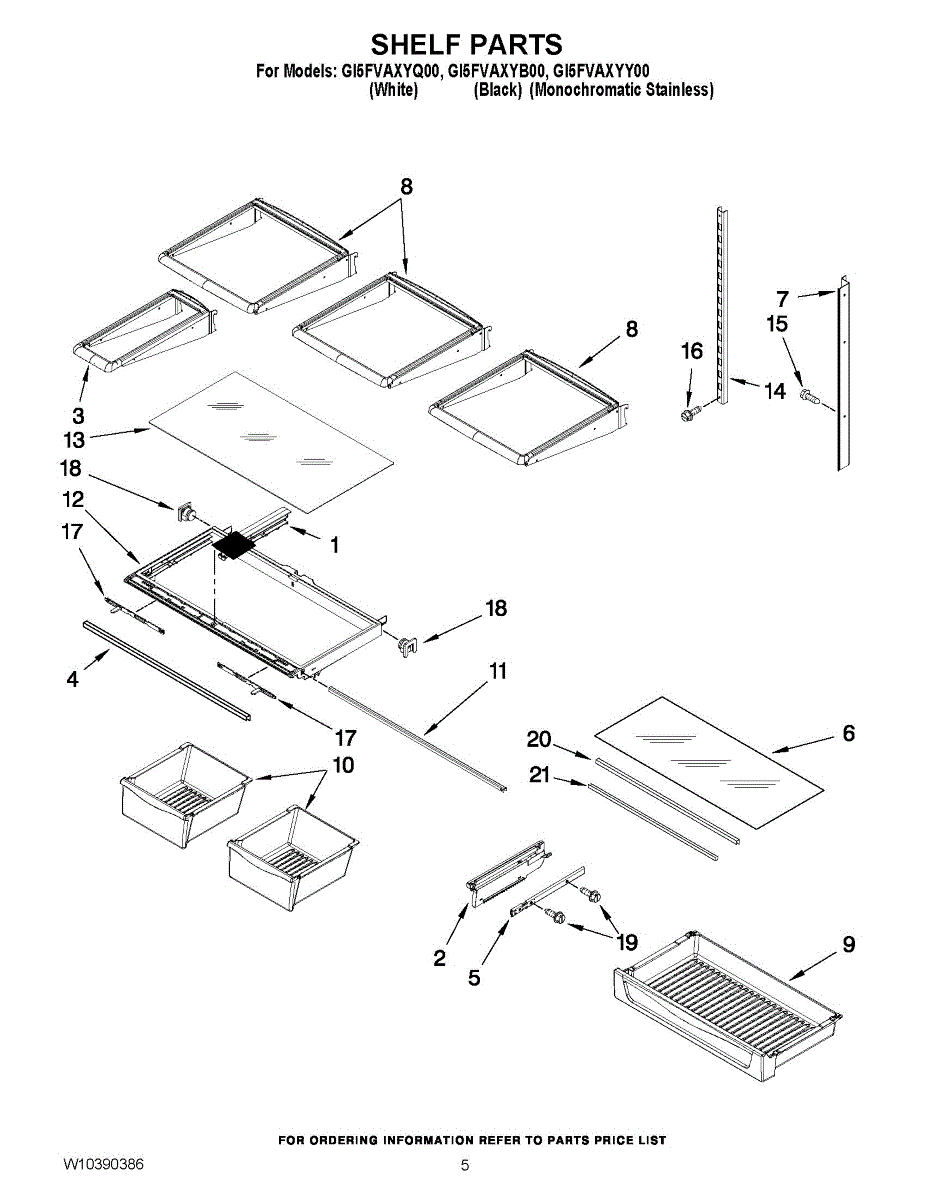

Parts for Whirlpool GI5FVAXYB00: 03 - Shelf Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Center Rail is an OEM part compatible with Whirlpool refrigerators. It plays a crucial role in providing structural support and stability for the shelves and drawers within the refrigerator compartment. This rail measures approximately 14.1 x 2.6 x 1.5 inches.

Causes of a bad refrigerator center rail can include physical damage from impact or excessive force, warping due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad center rail include:

• Shelves or drawers becoming misaligned or difficult to slide in and out
• Excessive wobbling or instability when shelves or drawers are loaded
• Visible signs of damage, such as cracks or bends, on the center rail itself

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right side endcap.

Left side endcap.

This crisper frame trim replaces a damaged or missing trim on the crisper cover/frame in your refrigerator. It restores a clean, finished edge and helps the produce drawers align and operate smoothly.

• Attaches to the crisper cover/frame at the drawer opening
• Restores support and a finished edge for the crisper shelf assembly
• Helps drawers align and slide without catching
• Common symptoms: cracked or missing trim, loose/sagging front edge, drawers binding

• Disconnect power before servicing
• Remove crisper drawers; lift out the glass cover if equipped
• Release and remove the old trim from the frame's locking tabs
• Align and snap the new trim fully into place; reinstall glass and drawers

The Glass Shelf is an OEM part for Whirlpool refrigerators. As an internal storage component, the glass shelf provides an adjustable platform to organize grocery items in refrigerator compartments.

Causes of a bad glass shelf could be repeated cracking or chipping of glass over time due to the impact of falling items or bottle vibrations. Edge damage may occur from sliding shelving in and out of position.

Symptoms of a bad glass shelf include:

• Visible cracks, chips, or fractures in the material
• Compromised stability no longer safely holds weight
• Warping or bending of shelf affecting functionality

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some KitchenAid models.

The Storage Pan is an OEM part for Whirlpool refrigerators. This pan, also known as a crisper drawer, is designed to store fruits, vegetables, and other fresh produce at an optimal humidity level, helping to keep them fresh for longer periods.

Causes of a bad storage pan can include frequent use, overloading with heavy items, or accidental drops or impacts.

Symptoms of a bad storage pan include:

• Cracks or splits in the plastic
• Difficulty sliding the pan in and out
• Reduced ability to keep produce fresh
• Visible damage or warping

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Crisper Pan is an OEM replacement part for Whirlpool side-by-side refrigerators. It provides a contained, elevated area to organize and store fruits and vegetables above internal drawers.

Causes of a faulty pan can include cracks or breaks from years of repeated opening and closing access doors above. Prolonged exposure to spills or condensation may also impact material integrity.

Symptoms include:

• Leaks compromising humidity within crisper drawers
• Containment issues resulting in disorganized storage
• Inability to effectively close access doors above

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper side-by-side refrigerator models.

This crisper brace is the cross-support used on 36-inch models to reinforce the crisper cover/shelf. It restores firm support so bins stay aligned and slide smoothly without the cover sagging or flexing. What it does:

• Supports the crisper cover/shelf to prevent bowing and flexing
• Keeps crisper drawers aligned for smooth open/close
• Replaces a cracked, warped, or missing brace
• Common symptoms: shelf sags or feels loose, drawers bind or rub, visible brace damage

• 1 crisper brace

• Unplug the refrigerator and clear the crisper area
• Remove crisper drawers and the cover/shelf to access the brace
• Position and secure the new brace using the original fasteners
• Reinstall the cover/shelf and drawers; verify drawers slide freely

The Shelf Frame is an OEM part for Whirlpool refrigerators. It supports the glass or wire shelves, providing a stable platform for storing food and beverages inside the refrigerator. The shelf frame measures approximately 32 by 19 inches.

Causes of a bad shelf frame can include wear and tear from holding heavy items, accidental impact, or warping due to temperature changes. A compromised frame can lead to an unstable shelf, potentially causing damage to stored items and affecting the overall organization of the refrigerator.

Symptoms of a bad Shelf Frame include:

• Cracks or breaks in the frame
• Shelf wobbling or not fitting securely
• Difficulty in supporting the weight of stored items
• Warping or misshapen frame

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore safe, usable storage space with this refrigerator glass shelf. Replacing cracked or missing shelf glass helps keep items level and organized while containing minor spills for easier cleanup.

• Provides a flat, stable surface for food storage in the fresh food compartment
• Helps contain small spills to reduce drips onto lower shelves or bins
• Replaces cracked, shattered, chipped, or missing shelf glass
• Restores proper fit and stability when the original shelf no longer supports items safely

• Disconnect power for safety and remove items from the affected shelf
• Support the shelf while sliding it out; handle glass with both hands and cut-resistant gloves
• Clean and inspect the supporting rails or frame; fully seat the new glass before reloading
• Avoid sudden temperature changes; allow glass to reach room temperature before washing or installing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This crisper frame support secures the crisper cover/frame to the refrigerator liner so the drawers glide correctly. Replace a cracked or missing support to restore a level cover and dependable support in the crisper area.

• Supports the crisper cover/frame on the cabinet wall
• Keeps the cover level to prevent sagging or drop
• Helps crisper drawers slide and close smoothly
• Typical failure signs: cracked/missing bracket, tilted cover, binding drawers

• Disconnect power and clear the crisper area before starting
• Remove crisper drawers and lift out the crisper cover/frame
• Remove the damaged support and install the new support in the same location; a screwdriver or nut driver may be needed
• Reinstall the cover/frame and drawers; verify level and smooth drawer operation

A small replacement screw used to secure appliance components and panels. This genuine-style fastener restores proper fit and function when original screws are missing, loose, or damaged. What it does:

• Secures panels, brackets, or small components in place
• Restores proper alignment and prevents rattling or movement
• Replaces stripped, corroded, or lost fasteners
• Works where the appliance design calls for this specific screw size and thread

• Use the matching driver size and apply firm, even pressure to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or move appliance away from utilities when working near electrical or gas components
• Inspect and repair the threaded hole before installing the new screw

This exterior glass support holds the oven door's outer glass securely in place so the door stays aligned and the glass doesn't shift or rattle during use. Replaces a cracked, broken or missing support to restore proper door fit and function. What it does:

• Secures the outer oven door glass to the door frame so the glass remains stable
• Prevents glass movement, vibration, or noise when the door is opened or closed
• Helps maintain proper door alignment and a consistent seal
• Common symptom: loose, rattling or misaligned outer door glass

• One exterior glass support

• Disconnect power (and gas, if applicable) before starting any oven door repair
• Handle glass carefully; wear safety gloves and eye protection to avoid injury
• Installation usually requires removing the oven door panel and fastening the support with existing screws/clips

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace
