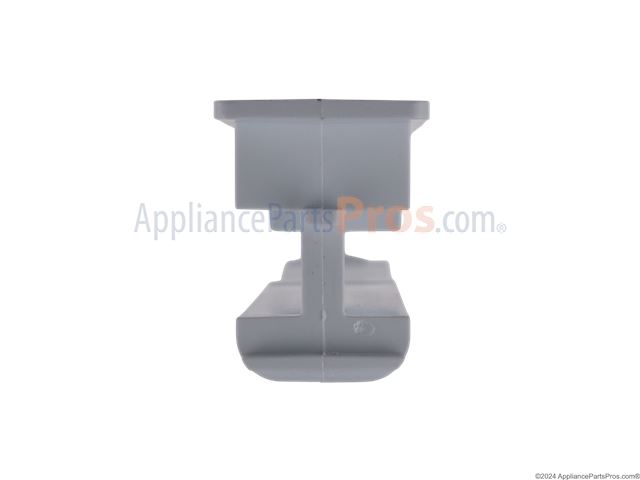

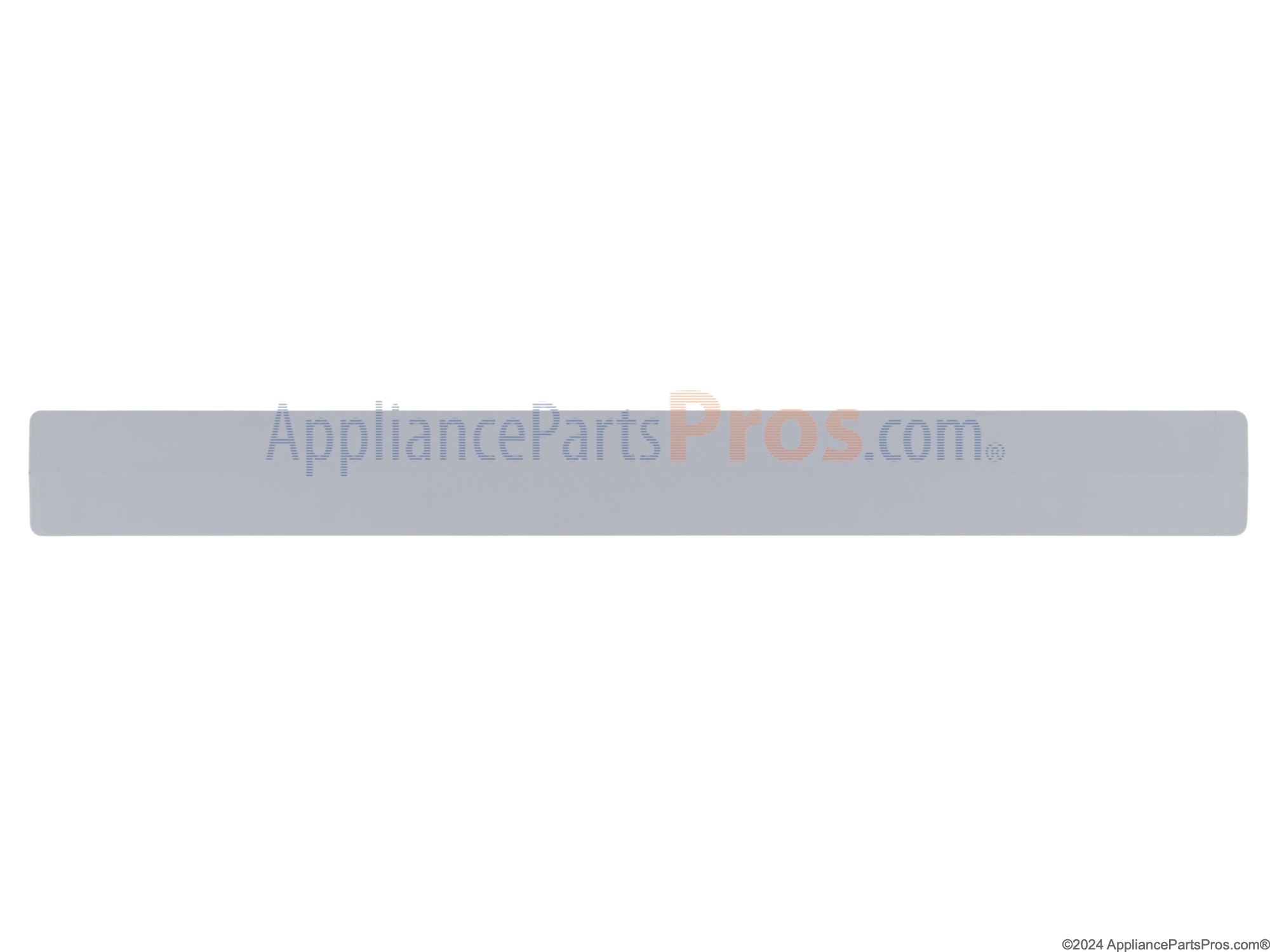

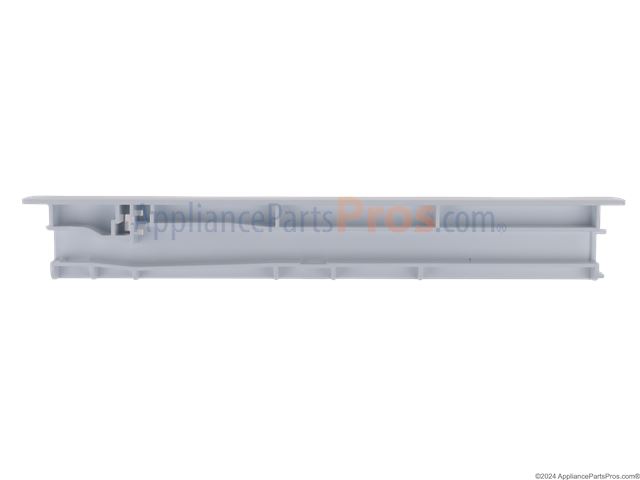

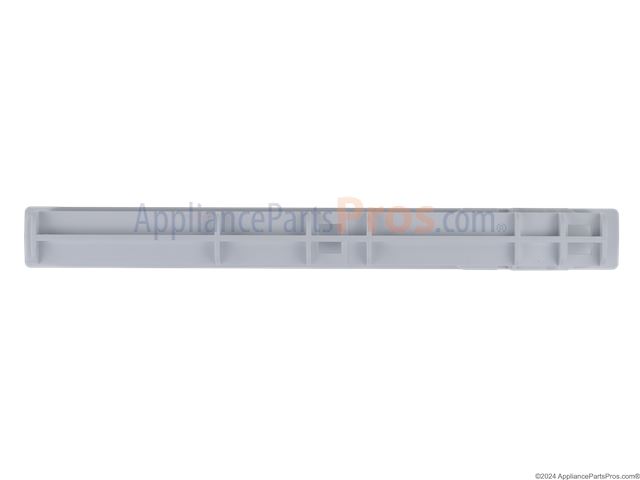

Whirlpool WPW10326469 Center Rail OEM Part

No instructions are included with either piece, which makes installation take more time and care. Tools needed: Small standard flat blade screwdriver, box knife or other knife with at least a 2" long blade, super glue. Remove the old main crisper frame: 1. Remove old main frame by lifting upward and outward. 2. Remove the center rail from the frame. May require bending of the main frame to remove it. 3. Remove the crisper front panel by unsnapping from frame. This is easily done by lifting the back edge. 4 Remove the two (2) vent slides. Unlock the slide vent on the underside of the frame, by lifting the end opposite the handle to to unlock it from the slide guide. Line up the slide tabs and guide slots and remove being careful not to damage the handle. Repeat. 5. Remove the metal channel from the frame. Looking on the underside of the frame just behind the crisper slides, there is a white metal channel that is approx. 1/2" square that runs the width of frame. Mine had a blue piece of tape helping secure it in place. Remove or cut the tape. One end of the channel is locked in place by plastic tab on the main frame. Use a screwdriver to lift and unlock the channel. Breaking this tab off is of no consequence if the old frame is to be thrown away. I just broke mine off. 6. Remove two (2) small inserts from the sides of the main frame. You'll notice small somewhat square inserts that are approx. 3/4" square from the end. The color is slightly off white. These have a locking tab and tiny square guide pin noticeable from the opposite side of the frame. Unlock the tab using a small flat blade screwdriver to pry and then push the insert out. Repeat. 7. Remove the same inserts from the center rail piece. 8. Remove the two (2) white foam pads from the outside edges of the frame. These pads are approx. 3/4" x 1" x 3" long. Using a sharp razor knife or other blade, take your time and cut the foam pad flush from the frame. Install the new main frame and center rail. This should be intuitive and the main frame and center rail easily installed once reassembly is accomplished. However, be careful to line up the tiny off white insert guide before pressing and locking the insert into place in the main frame and center rail. Then, I used super glue to reattach the white foam pads to the sides of the frame. Good luck Rick

You have to remove the glass cover to the crisper unit, take out the old center rail and the broken part, clean and then insert the new center rail with the dimple at back and the tongue at front and then reposition Crisper glass cover

I looked up the parts online at AppliancePros.com! To my surprise, the detailed drawings showed that I could replace the center rail (about $13) instead of the entire lower shelf (about $100)! I also ordered a replacement shelf bin that had broken. I looked at other sites for the parts, but they were cheapest here. I ordered the parts LATE Wednesday and they were at my door Friday afternoon! Super fast! The order was accurate, packed well so it arrived damage free,

Replacement of parts found on this site- great explanation and pictures as shown!

We bought a two year home and after we moved in we discover that the inside of the GE refrigerator was all broken up inside so I ordered lots of parts and replaced them in about two hours I spent a little over $200.00 and. Ow it's good as new.a new refrigerator same model would have been $3000.00 that's a great savings Thank you
