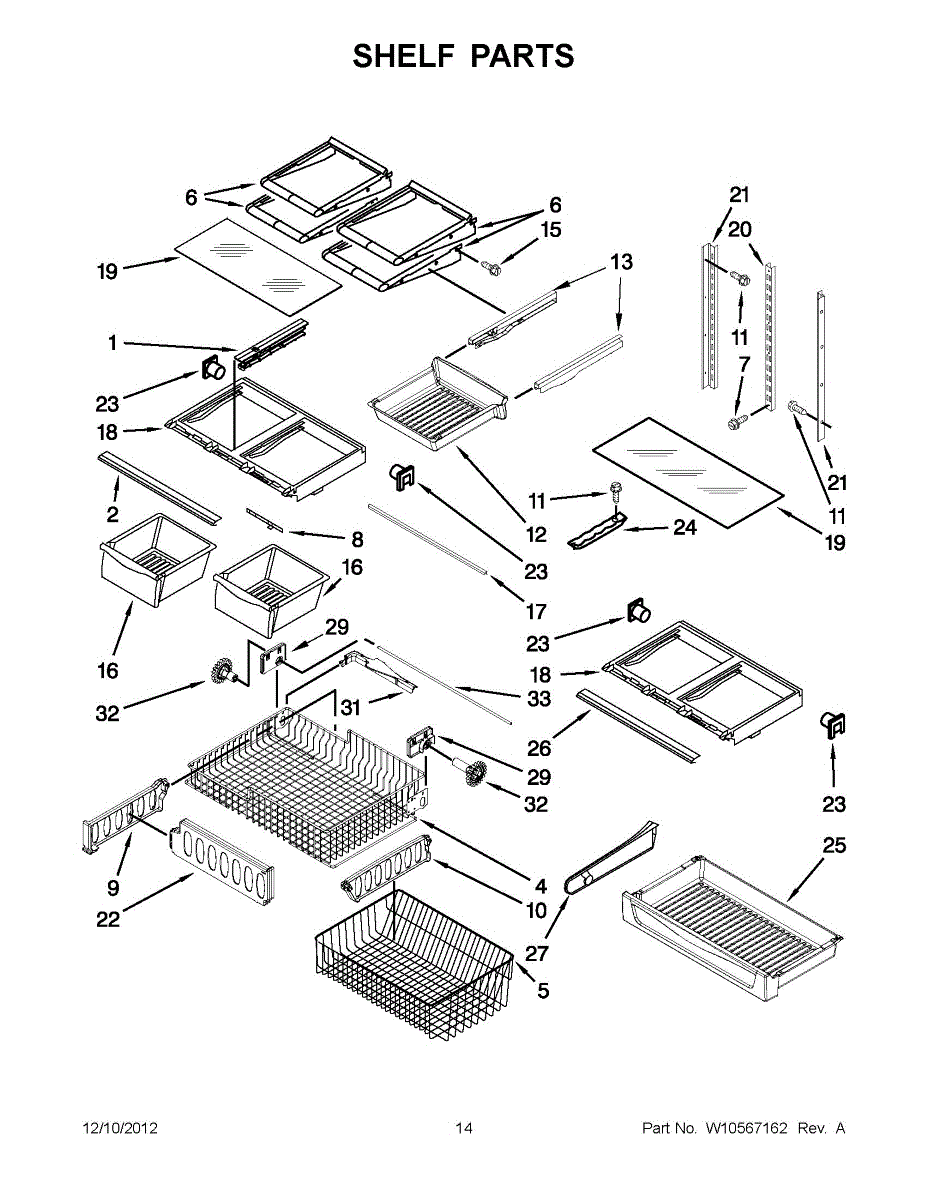

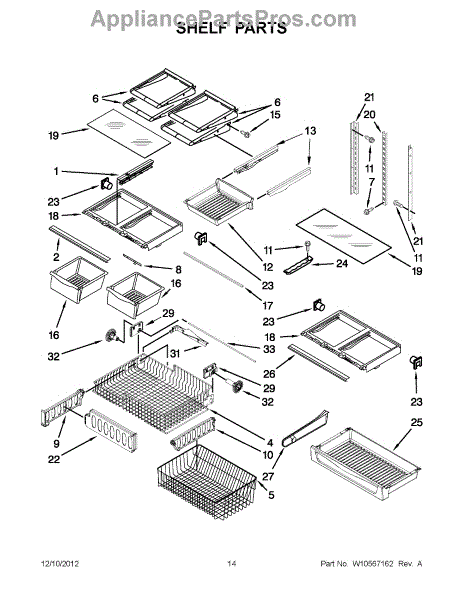

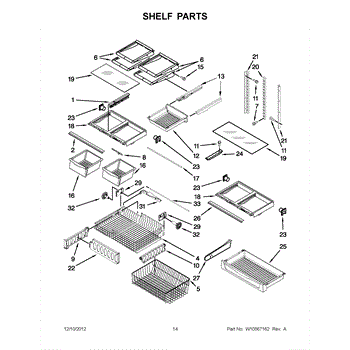

Parts for Whirlpool GX5FHDXVB08: 07 - Shelf Parts

Upper freezer basket for bottom-mount refrigerators. Installs in the freezer compartment to organize frozen foods. Replaces cracked or broken baskets.

Mounting screw for refrigerator interior components and panels. Replace if stripped, missing, or damaged during service to secure parts properly.

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

Plastic divider that organizes items in refrigerator storage baskets. Snaps into basket assembly. Replace if cracked, broken, or missing clips prevent secure attachment.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replace your cracked or broken refrigerator drawer glide. Mounts to the interior wall to support smooth drawer sliding. Essential for worn or damaged glides.

Drawer glide for refrigerator deli or crisper drawers. Replace if cracked, broken, or causing drawer to stick or fall out when opened. Mounts to shelf.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Cross-support brace that reinforces the crisper cover on 36-inch models. Replace if broken, missing, or cracked to prevent cover sagging and keep bins aligned.

Refrigerator shelf frame that supports glass or wire shelves inside the fridge. Replace if cracked, broken, or warped to restore proper shelf support.

Replace a cracked or broken shelf support ladder in your refrigerator. This ladder stabilizes shelf rails and prevents sagging. Easy DIY installation.

Replacement shelf support ladder that holds and stabilizes refrigerator shelves and bin tracks. Needed when original is cracked, broken, or missing.

Replacement drawer divider that separates and organizes items inside refrigerator bins. Restores compartment organization when original is cracked or missing.

Secures the crisper cover to the refrigerator liner for smooth drawer operation. Replace if cracked or missing to restore level support. Verify fit.

Supports and guides the deli drawer in your refrigerator's fresh food section. Replace if worn, broken, or causing drawer sticking, sagging, or derailment.

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

This is a small spur gear used in the drawer glide assembly, typically on the left side of a refrigerator or freezer drawer. It meshes with the drawer track mechanism to allow smooth opening and closing. Replace this gear if the drawer is difficult to slide, feels rough or catches when pulled out, or if the original gear teeth are worn or broken.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance
