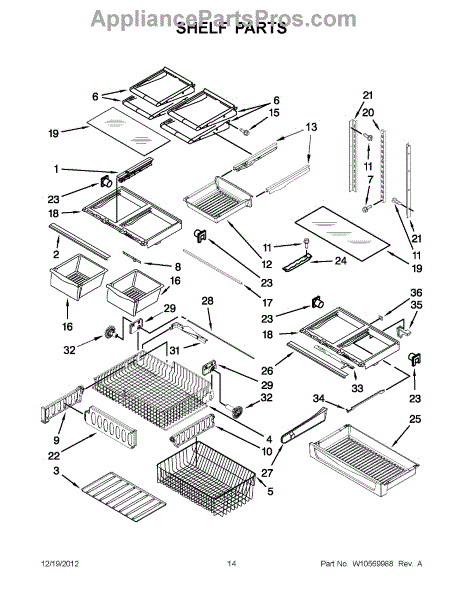

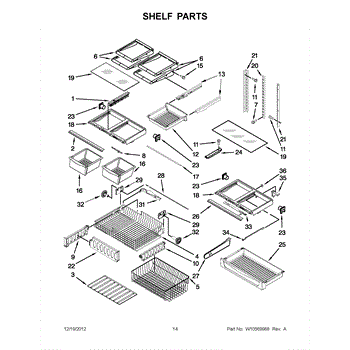

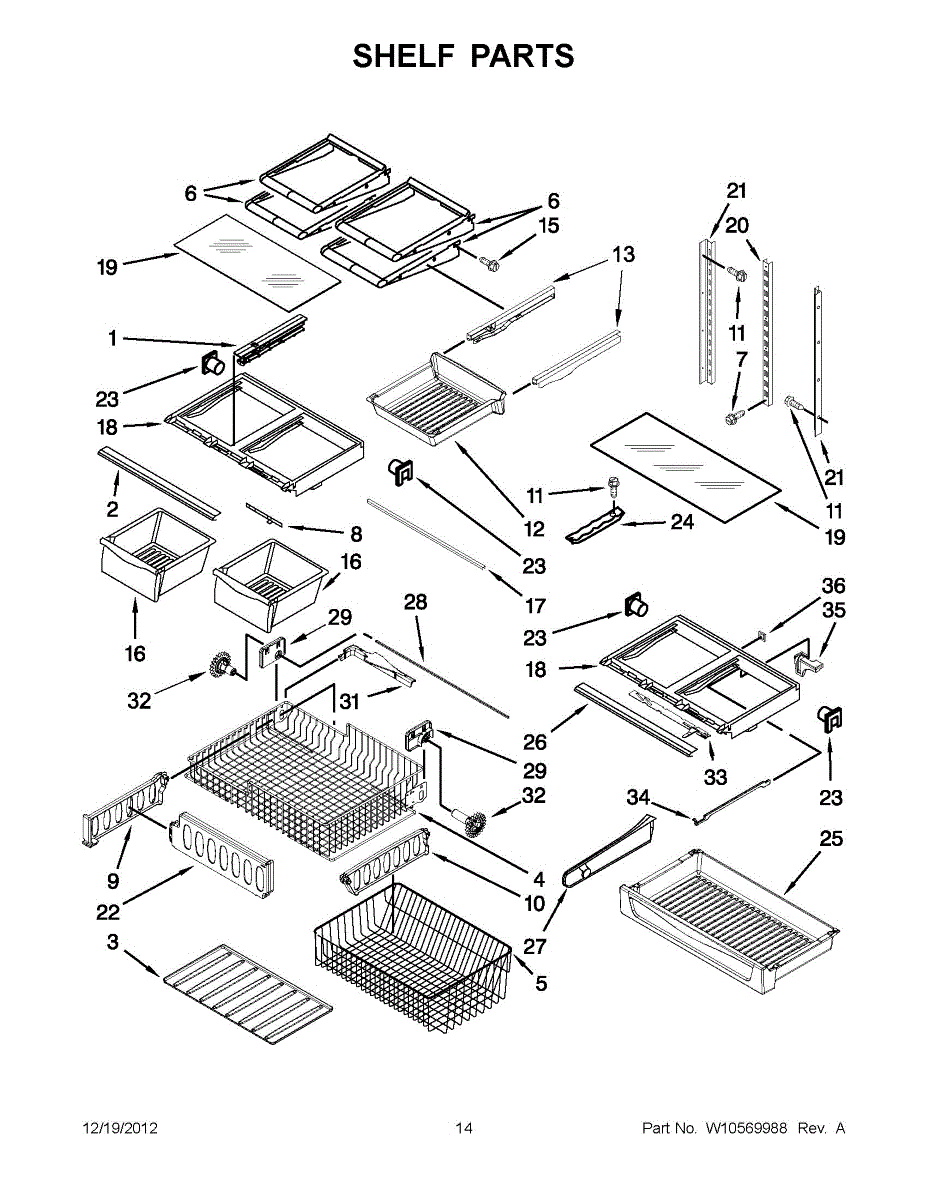

Parts for Whirlpool GX5FHTXVB08: 07 - Shelf Parts

This upper freezer basket is a direct-fit replacement that restores storage and organization inside the freezer compartment. It holds frozen food items securely and helps keep the freezer neat for easier access. What it does

• Replaces a cracked, broken or missing upper freezer basket so items stay contained
• Slides into the freezer compartment on existing rails or supports for stable storage
• Prevents items from shifting or falling into lower compartments during use
• Helps improve organization so you can see and access frozen foods quickly

• Unplug the refrigerator or disconnect power before servicing to reduce shock risk
• Remove any food and clear the shelf area before sliding the new basket into place
• Align the basket with the freezer supports and slide in gently; do not force
• If the basket attaches with clips or rails, inspect mounts for damage and replace any broken hardware

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Drawer Glide is an OEM part for Whirlpool refrigerators. It ensures the smooth operation of refrigerator drawers, allowing them to slide in and out effortlessly. The glide measures approximately 15 inches in length.

Causes of a bad drawer glide can include wear and tear from regular use, accumulation of debris or dirt, or physical damage due to impact or overloading the drawers. When the glide becomes damaged, it can hinder the functionality of the refrigerator drawers, making it difficult to access stored items.

Symptoms of a bad drawer glide include:

• Difficulty opening or closing refrigerator drawers
• Drawers getting stuck or not sliding smoothly
• Unusual noises when operating the drawers
• Drawers misaligning or falling off their tracks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the right side drawer glide, use part number WP67001053

The Drawer Glide is an OEM part for Whirlpool refrigerators. This component facilitates the smooth sliding motion of refrigerator drawers, ensuring easy access to stored items.

Over time, drawer glides can become worn out or damaged due to constant use, heavy loads, or accidental impacts. A faulty drawer glide can hinder the smooth operation of the refrigerator drawers, making them difficult to open or close.

Symptoms of a bad Drawer Glide include:

• Difficulty in sliding the drawer in and out
• The drawer getting stuck or not aligning properly
• Unusual noises when operating the drawer
• The drawer not staying in place or sagging

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Right hand side. For left side use WP67001054

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This crisper brace is the cross-support used on 36-inch models to reinforce the crisper cover/shelf. It restores firm support so bins stay aligned and slide smoothly without the cover sagging or flexing. What it does:

• Supports the crisper cover/shelf to prevent bowing and flexing
• Keeps crisper drawers aligned for smooth open/close
• Replaces a cracked, warped, or missing brace
• Common symptoms: shelf sags or feels loose, drawers bind or rub, visible brace damage

• 1 crisper brace

• Unplug the refrigerator and clear the crisper area
• Remove crisper drawers and the cover/shelf to access the brace
• Position and secure the new brace using the original fasteners
• Reinstall the cover/shelf and drawers; verify drawers slide freely

The Shelf Frame is an OEM part for Whirlpool refrigerators. It supports the glass or wire shelves, providing a stable platform for storing food and beverages inside the refrigerator. The shelf frame measures approximately 32 by 19 inches.

Causes of a bad shelf frame can include wear and tear from holding heavy items, accidental impact, or warping due to temperature changes. A compromised frame can lead to an unstable shelf, potentially causing damage to stored items and affecting the overall organization of the refrigerator.

Symptoms of a bad Shelf Frame include:

• Cracks or breaks in the frame
• Shelf wobbling or not fitting securely
• Difficulty in supporting the weight of stored items
• Warping or misshapen frame

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement ladder is the OEM-style ladder used to support and stabilize the shelf/rail assembly inside the appliance, restoring proper alignment and preventing sagging or items from shifting during use. What it does:

• Provides sturdy support for the appliance shelf or rail assembly
• Keeps shelves aligned so items sit level and don't slide or tip
• Prevents noise and movement caused by a loose or broken support
• Helps maintain proper interior spacing for storage

• Disconnect power to the appliance before starting any repair
• Remove nearby shelves or trim to access the ladder; keep track of fasteners
• Inspect surrounding clips and rails; replace damaged hardware as needed

A replacement ladder shelf support that holds and stabilizes a refrigerator shelf or bin track so stored items stay level and secure. Restores proper shelf alignment and prevents shifting or sagging. What it does:

• Supports and aligns a refrigerator shelf or bin track to keep items stable
• Replaces broken, bent or cracked ladder pieces that cause shelves to tilt
• Helps stop shelves or bins from slipping forward or coming loose
• Compatible with common Whirlpool refrigerator shelf mounting points

• Disconnect power or unplug the appliance before starting any repair.
• Remove shelves or bins as needed to access the ladder; handle glass shelves carefully.
• Use basic hand tools; avoid forcing parts—inspect for damaged mounting clips or guides.

This replacement divider keeps items separated and organized inside a refrigerator drawer or bin so food stays tidy and easy to access. It restores proper compartment separation when the original divider is cracked or missing. What it does

• Separates compartments in a refrigerator drawer or bin to prevent items from shifting and mixing
• Helps organize produce, deli items, or small containers for easier access
• Restores stability to a damaged or missing partition so drawers close and function properly
• Common symptoms: cracked, broken, warped, or missing divider causing items to move or compartments to be unusable

• One replacement divider

• Remove drawer/bin contents and slide the drawer out before installing
• Align divider with the existing slots or tracks and press gently into place until it seats securely
• No special tools typically required; use care to avoid excessive force that could crack mounting points
• Clean with mild soap and water; avoid harsh solvents or abrasive scrubbers

This crisper frame support secures the crisper cover/frame to the refrigerator liner so the drawers glide correctly. Replace a cracked or missing support to restore a level cover and dependable support in the crisper area.

• Supports the crisper cover/frame on the cabinet wall
• Keeps the cover level to prevent sagging or drop
• Helps crisper drawers slide and close smoothly
• Typical failure signs: cracked/missing bracket, tilted cover, binding drawers

• Disconnect power and clear the crisper area before starting
• Remove crisper drawers and lift out the crisper cover/frame
• Remove the damaged support and install the new support in the same location; a screwdriver or nut driver may be needed
• Reinstall the cover/frame and drawers; verify level and smooth drawer operation

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

Left side mount

Right side mount

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Replacement pantry tunnel that restores the pantry drawer's alignment and helps maintain proper airflow and sealing in the pantry compartment. Restores smooth sliding and proper compartment performance for affected refrigerators. What it does:

• Guides and supports the pantry/deli drawer to help ensure smooth opening and closing.
• Helps maintain the intended airflow path and compartment sealing; a cracked or missing tunnel can contribute to temperature inconsistencies.
• Prevents items from rubbing against the cabinet opening and reduces wear on the drawer edges.
• Matches the original mounting direction and fit to restore the part's function when damaged.

• Unplug the refrigerator or disconnect power before beginning service.
• Remove the pantry/deli drawer per the owner's manual to access the tunnel area.
• Align the tunnel with the original mounting points and secure it without forcing; use basic hand tools as needed.

This pan gasket seals the refrigerator's drain/drip pan to help channel condensate and prevent water from leaking under the appliance. Replacing a worn gasket restores proper drainage and reduces puddling. What it does

• Seals the evaporator/drip pan to keep condensate contained and routed to the drain.
• Helps prevent water from collecting beneath or around the refrigerator.
• Commonly replaced when you see water on the floor, persistent puddles, or poor drainage.
• Works with the existing drain pan and support components to maintain correct drainage.

• One pan gasket

• Always unplug the appliance or disconnect power before starting work.
• Remove necessary access panels and the drip pan to access the gasket; handle panels and clips gently.
• Clean the pan and sealing surfaces before installing the new gasket to ensure a tight fit.
• If the pan is cracked or damaged, replace it too—gasket replacement alone won't stop leaks from a broken pan.
