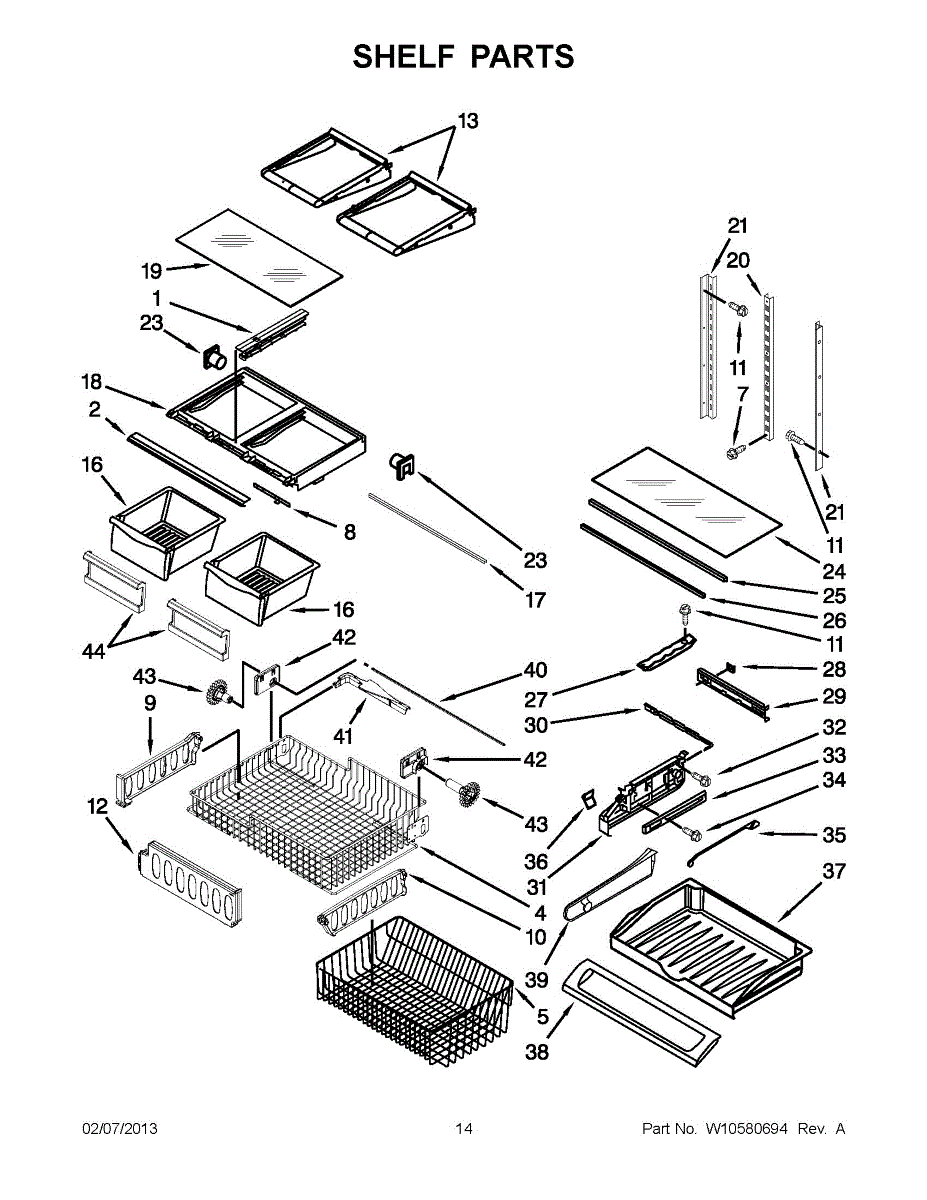

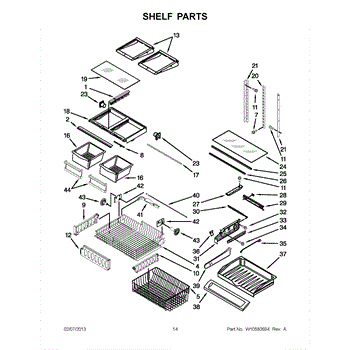

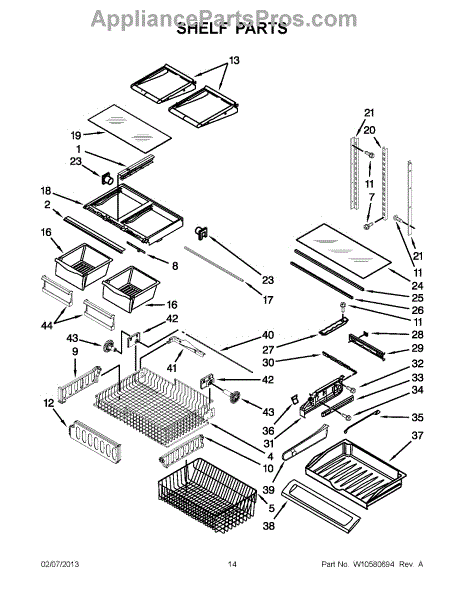

Parts for Whirlpool IX5HHEXWS10: 07 - Shelf Parts

Upper freezer basket for bottom-mount refrigerators. Installs in the freezer compartment to organize frozen foods. Replaces cracked or broken baskets.

Mounting screw for refrigerator interior components and panels. Replace if stripped, missing, or damaged during service to secure parts properly.

Humidity control slide for refrigerator crisper drawers. Replace this plastic slide if the lever tab has snapped off, cracked, or broken during use.

Plastic divider that organizes items in refrigerator storage baskets. Snaps into basket assembly. Replace if cracked, broken, or missing clips prevent secure attachment.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Replacement drawer divider that separates and organizes items inside refrigerator bins. Restores compartment organization when original is cracked or missing.

Replacement crisper pan for refrigerators. Installs in the fresh food section to store fruits and vegetables. Replace if cracked, broken, or missing.

Cross-support brace that reinforces the crisper cover on 36-inch models. Replace if broken, missing, or cracked to prevent cover sagging and keep bins aligned.

Refrigerator shelf frame that supports glass or wire shelves inside the fridge. Replace if cracked, broken, or warped to restore proper shelf support.

Replace a cracked or broken shelf support ladder in your refrigerator. This ladder stabilizes shelf rails and prevents sagging. Easy DIY installation.

Shelf support ladder for refrigerators. Mounts inside the cabinet to hold shelf brackets and slides. Replace if cracked, broken, or missing.

Secures the crisper cover to the refrigerator liner for smooth drawer operation. Replace if cracked or missing to restore level support. Verify fit.

This tempered glass shelf fits inside the refrigerator's fresh food compartment and provides a flat, sturdy surface for organizing food items. It rests on shelf support brackets or frame rails within the cabinet. Replace it if the glass is cracked, chipped, or shattered, which can compromise food safety and reduce usable storage space.

Replacement shelf trim that attaches to the front edge of your refrigerator shelf. Restores the finished appearance and prevents items from sliding off when the original trim is cracked, broken, or missing.

Supports and guides the deli drawer in your refrigerator's fresh food section. Replace if worn, broken, or causing drawer sticking, sagging, or derailment.

Seals pantry drawer to maintain proper temperature and prevent air leaks. Replace if torn, cracked, or drawer doesn't close tightly. Verify fit with model.

This housing encloses the temperature control components for the refrigerator's pantry drawer, protecting the thermostat or control board that regulates drawer temperature. It mounts inside or on top of the drawer compartment. Replace this housing if it is cracked, warped, or broken, which can leave the control components unprotected and potentially affect temperature regulation in the drawer.

This slide temperature control is the user-access interface that moves the thermostat connection to select dryer heat levels. It restores responsive, indexed temperature selection for standard slide-style dryer controls. What it does

• Moves the internal contact to select low/medium/high heat settings for the dryer
• Replaces worn or loose slider that causes inconsistent or stuck temperature selection
• Helps correct symptoms such as inability to change heat level, intermittent temperature changes, or a slider that feels loose or won't stay in position
• Works as the mechanical interface between the console knob/lever and the dryer's control assembly

• One slide temperature control (single slider assembly)

• High-level replacement for users comfortable removing control consoles; disconnect power before service
• Handle control panel clips and trim carefully to avoid cracking plastic bezels
• Verify proper seating and alignment of the slider on the control shaft before reassembly

Replaces broken or cracked endcaps that secure your refrigerator's pantry drawer. Kit includes left and right endcaps for complete repair.

Replaces broken or cracked endcaps that secure your refrigerator's pantry drawer. Kit includes left and right endcaps for complete repair.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Replacement slide rail for refrigerator pantry or deli drawers. Installs on drawer side to enable smooth gliding. Needed when rail is bent, broken, or cracked.

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

This temperature control bar is the actuator used to adjust and regulate the appliance's internal temperature, restoring proper temperature response for the bar/beverage control system. It provides a direct replacement for the OEM control bar assembly. What it does:

• Transfers user temperature adjustments to the control mechanism so the appliance reaches the set temperature
• Restores correct temperature changes when the control knob or selector fails to respond
• Helps address symptoms like incorrect temperature readings, temperature not changing, or unstable cooling behavior
• Works with the existing control housing and selector components to re-establish normal operation

• One temperature control bar

• Disconnect power before servicing to avoid electric shock
• Handle the part and surrounding components carefully to avoid damaging clips or wiring
• You may need to remove interior panels or the control housing to access the part;
• Verify the part number on your existing component before installation

This is a sliding pantry drawer that fits inside the refrigerator compartment, typically used as a deli or fresh food storage drawer. It slides on tracks or rails within the refrigerator cavity and provides a sealed space to store meats, cheeses, and other perishables at a slightly different humidity level. Replace this drawer if it is cracked, broken, or if the slides no longer allow it to open and close smoothly.

This replacement shaft is the mechanical link that transmits rotation and keeps aligned parts moving together inside your appliance. Replacing a worn or stripped shaft restores smooth, reliable operation of the connected mechanism. What it does:

• Transfers motor or gear torque to the mated component
• Maintains alignment and support within the assembly
• Helps ensure smooth engagement of gears, levers, or augers
• Common symptoms of a failed shaft: connected part won't turn or slips, intermittent operation, grinding/clicking noises, or visible wobble/play at the interface

• 1 shaft

• Disconnect power before servicing; shut off water supply if applicable
• Note the original orientation and take photos to aid reassembly
• Inspect mating gears/bushings for wear and replace if needed to prevent rapid re-failure
• Align any flats/splines and seat the shaft without forcing; tighten fasteners to manufacturer guidance

Left-side gear mount bracket for bottom-mount refrigerators. Secures gear assembly in place. Replace if cracked, broken, or damaged to restore stability.

Right-side gear mount bracket for refrigerators. Secures gear assembly in place. Replace if cracked, broken, or mounting tabs are damaged or missing.

Refrigerator freezer drawer glide gear that attaches to the rear shaft. Replace if broken, cracked, or missing tabs cause your basket to lean or fall off track.

This is a small spur gear used in the drawer glide assembly, typically on the left side of a refrigerator or freezer drawer. It meshes with the drawer track mechanism to allow smooth opening and closing. Replace this gear if the drawer is difficult to slide, feels rough or catches when pulled out, or if the original gear teeth are worn or broken.
