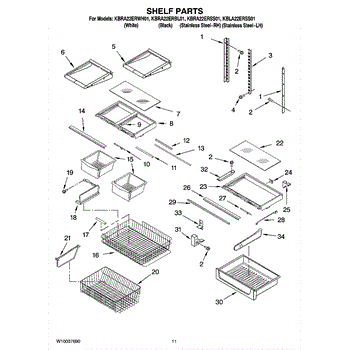

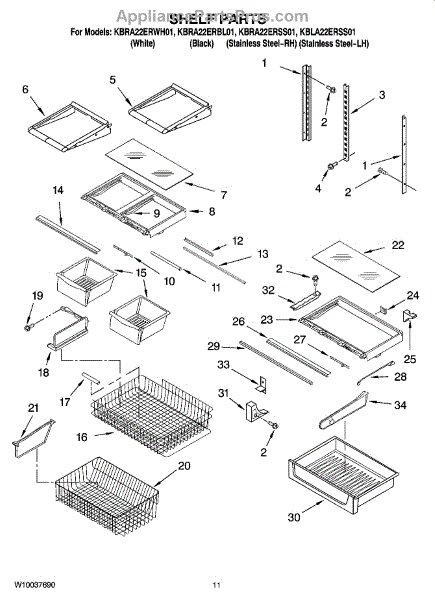

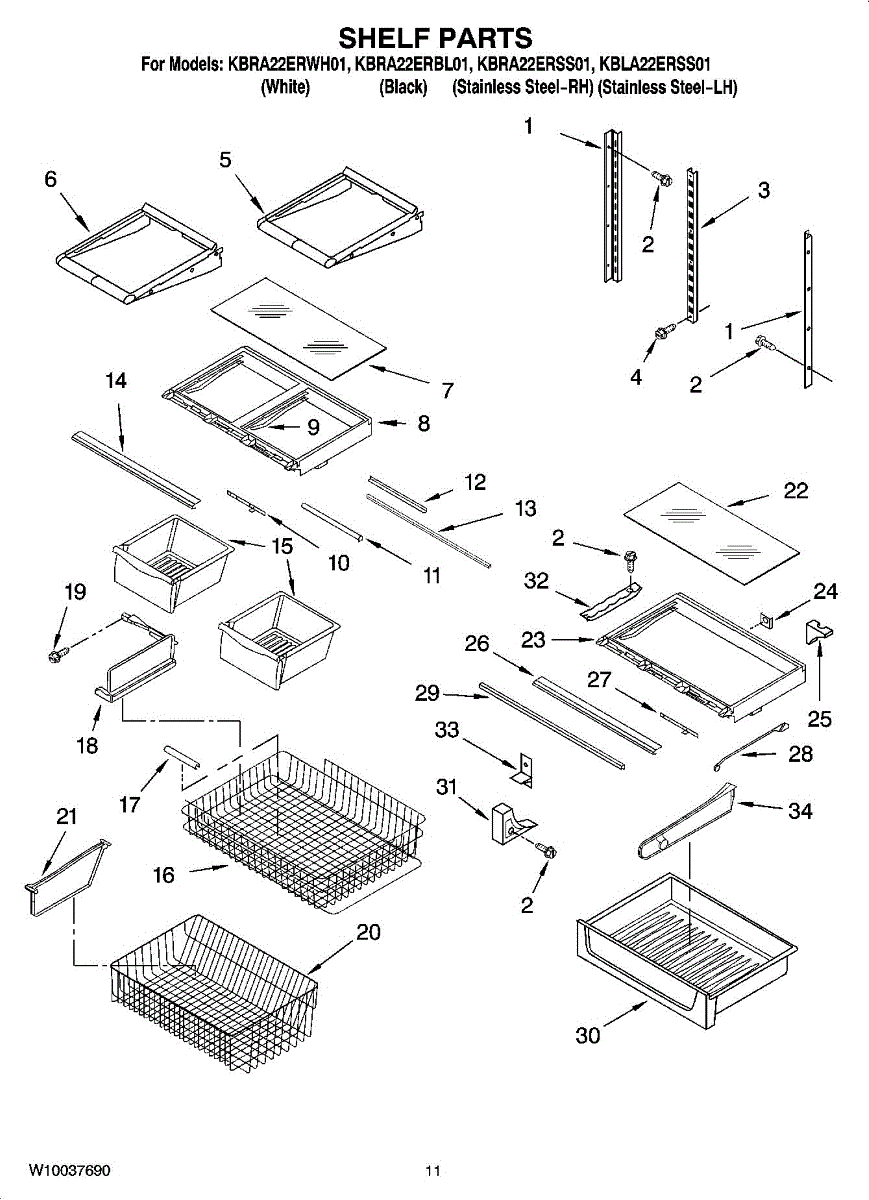

Parts for Kitchenaid KBRA22ERBL01: 06 - Shelf Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This center ladder is a replacement interior support piece that helps secure and align related shelving components for proper fit and function. Replacing a worn or broken center ladder restores stable shelf support and alignment. What it does

• Provides centered structural support for the associated shelving/ladder assembly
• Restores proper alignment so shelves and components sit securely
• Stops movement, sagging or misalignment caused by a cracked or damaged ladder
• Fits into the factory ladder location to maintain original spacing and support

• One center ladder

• Install with the appliance power off and remove any stored items from the area before starting
• Verify orientation and engagement points match the existing ladder prior to final fastening
• Use only the specified fasteners and torque per manufacturer guidance; do not overtighten plastic mounting points

The Crisper Drawer Glass is an OEM replacement part for Whirlpool refrigerators.

Causes involve repeated opening/closing of drawers developing stress cracks. Exposure to impacts additionally risks breakage over extended use.

Symptoms of problematic glass include:

• Cracks or chips visible on exterior surface
• Areas of discoloration present
• Warping observed distorting view into drawer

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Crisper Shelf Frame is an OEM part for Whirlpool side-by-side refrigerators. It provides sturdy tracked support for organizing vegetables and other produce items in the crisper drawers. The glass and center support are NOT included and must be ordered separately.

Causes of a bad crisper shelf frame can include heavy loads causing cracks or breaks, exposure to moisture leading to warping, or accidental impacts during loading and unloading of groceries.

Symptoms of a bad crisper shelf frame include:

• Cracks or breaks in the frame
• Difficulty sliding crisper drawers in and out
• Items stored on the shelf are unstable or fall through
• The frame not fitting securely in its designated space

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the rear crisper seal that fits along the back edge of the refrigerator crisper compartment to help maintain the crisper enclosure and reduce air leakage. It restores a tighter seal for better humidity control and food storage. What it does:

• Replaces a worn or torn rear crisper gasket to help reduce cold air loss from the crisper area
• Helps maintain crisper humidity so produce stays fresher longer
• Prevents gaps that can cause uneven cooling or frost build-up near the drawer
• Can reduce draft noise or rubbing caused by a damaged seal

• One rear crisper seal (matches OEM part number)

• Remove the crisper drawer to access the rear seal before replacing
• Peel out the old seal and press the new seal firmly into the gasket channel; ensure an even, continuous fit
• Avoid using sharp tools that could damage the cabinet or new seal
• Unplug the refrigerator or switch off power if needed for safe access to nearby components

This crisper brace supports the crisper cover/frame in the fresh food compartment, keeping the drawers aligned and level. Replace a cracked or missing brace to restore proper support and smooth, reliable crisper drawer operation.

• Provides structural support for the crisper cover/frame
• Helps keep crisper drawers level and aligned for smooth sliding
• Replaces a broken, warped, or missing brace
• Common symptoms include a sagging cover, drawers binding or dropping, and visible damage to the brace

• Unplug the refrigerator before servicing
• Remove crisper drawers and the cover/frame to access the brace
• Release or remove any retaining tabs/fasteners, swap the brace, and ensure it seats fully
• Handle glass components carefully and avoid overtightening fasteners

This shelf trim is the front-facing trim piece that secures and finishes a refrigerator shelf, restoring a clean, supported edge and helping keep items from sliding forward. It's a direct-fit replacement for a worn or broken trim. What it does:

• Replaces damaged, cracked, or missing front shelf trim to restore shelf appearance and edge support
• Helps keep food and containers from sliding off the front of the shelf
• Provides a finished edge that aligns with the existing shelf frame for a secure fit
• Matches OEM fit and mounting points for straightforward replacement on compatible refrigerators

• One shelf trim piece

• High-level swap: remove the shelf, detach the damaged trim, and snap or screw the new trim into the existing shelf frame
• Use gentle pressure to avoid cracking adjacent plastic; do not force parts into misaligned slots
• If hardware (screws/clips) is damaged, replace with OEM-specified hardware for secure attachment
• Always unplug the appliance or disconnect power before removing shelves near electrical components; follow OEM safety guidance

This upper basket is the dishwasher rack insert that holds plates, glasses and small items in the top rack so they stay organized and get a proper wash. It replaces damaged or warped upper baskets to restore secure loading and water flow. What it does:

• Provides stable support for glasses, bowls and lightweight dishes in the upper rack
• Keeps items separated to improve cleaning and reduce chipping
• Restores proper alignment and routing of water to top-rack items
• Replaces cracked, bent or missing upper basket sections that allow items to tip or fall

• Disconnect power to the dishwasher before servicing and turn off the water supply if needed
• Remove the upper rack to access and swap the basket; no special tools are normally required
• Inspect rack rollers and tracks while re-installing the rack to ensure smooth operation
• If clips or fasteners are present, reinstall them as shown in the manufacturer's instructions

The Crisper Drawer Glass is an OEM replacement part for Whirlpool refrigerators.

Causes involve repeated opening/closing of drawers developing stress cracks. Exposure to impacts additionally risks breakage over extended use.

Symptoms of problematic glass include:

• Cracks or chips visible on exterior surface
• Areas of discoloration present
• Warping observed distorting view into drawer

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Crisper Shelf Frame is an OEM part for Whirlpool side-by-side refrigerators. It provides sturdy tracked support for organizing vegetables and other produce items in the crisper drawers. The glass and center support are NOT included and must be ordered separately.

Causes of a bad crisper shelf frame can include heavy loads causing cracks or breaks, exposure to moisture leading to warping, or accidental impacts during loading and unloading of groceries.

Symptoms of a bad crisper shelf frame include:

• Cracks or breaks in the frame
• Difficulty sliding crisper drawers in and out
• Items stored on the shelf are unstable or fall through
• The frame not fitting securely in its designated space

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pan gasket seals the refrigerator's drain/drip pan to help channel condensate and prevent water from leaking under the appliance. Replacing a worn gasket restores proper drainage and reduces puddling. What it does

• Seals the evaporator/drip pan to keep condensate contained and routed to the drain.
• Helps prevent water from collecting beneath or around the refrigerator.
• Commonly replaced when you see water on the floor, persistent puddles, or poor drainage.
• Works with the existing drain pan and support components to maintain correct drainage.

• One pan gasket

• Always unplug the appliance or disconnect power before starting work.
• Remove necessary access panels and the drip pan to access the gasket; handle panels and clips gently.
• Clean the pan and sealing surfaces before installing the new gasket to ensure a tight fit.
• If the pan is cracked or damaged, replace it too—gasket replacement alone won't stop leaks from a broken pan.

Replacement pantry tunnel that restores the pantry drawer's alignment and helps maintain proper airflow and sealing in the pantry compartment. Restores smooth sliding and proper compartment performance for affected refrigerators. What it does:

• Guides and supports the pantry/deli drawer to help ensure smooth opening and closing.
• Helps maintain the intended airflow path and compartment sealing; a cracked or missing tunnel can contribute to temperature inconsistencies.
• Prevents items from rubbing against the cabinet opening and reduces wear on the drawer edges.
• Matches the original mounting direction and fit to restore the part's function when damaged.

• Unplug the refrigerator or disconnect power before beginning service.
• Remove the pantry/deli drawer per the owner's manual to access the tunnel area.
• Align the tunnel with the original mounting points and secure it without forcing; use basic hand tools as needed.

This trim is the finished control-panel surround that restores the appliance's exterior appearance and helps protect internal controls from spills and debris. It fits into the front console area to provide a clean, factory look. What it does:

• Replaces a cracked, scratched, or missing control-panel trim to improve appearance
• Helps shield buttons and display edges from moisture and dirt
• Restores proper alignment and fit of the front console components
• Useful when trim gaps or cosmetic damage expose internal parts

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Remove adjacent trim or bezels as needed to access mounting screws; keep fasteners for reassembly.
• Handle trim carefully to avoid scratching the finish; align clips/tabs before securing.
• Replace any damaged or missing clips or screws to ensure a secure fit.

This pantry slide assembly restores smooth, secure sliding for a refrigerator pantry shelf so you can access stored items easily and prevent tipping. Direct-replacement part designed to match original fit and function. What it does:

• Replaces a worn or broken pantry slide so the pantry shelf opens and closes smoothly.
• Prevents pantry shelves from binding, sticking, or falling out when pulled.
• Restores proper alignment and stopping action for safer loading and unloading.
• Helps eliminate rattling or uneven movement caused by damaged slide components.

• Disconnect power to the appliance or unplug before beginning any work.
• Installation generally requires removing pantry shelf and snapping or sliding assembly into the existing mounting points; keep original fasteners if present.
• Avoid forcing components; inspect mounting brackets and catches for damage and replace if needed.

This crisper brace supports the crisper cover/frame in the fresh food compartment, keeping the drawers aligned and level. Replace a cracked or missing brace to restore proper support and smooth, reliable crisper drawer operation.

• Provides structural support for the crisper cover/frame
• Helps keep crisper drawers level and aligned for smooth sliding
• Replaces a broken, warped, or missing brace
• Common symptoms include a sagging cover, drawers binding or dropping, and visible damage to the brace

• Unplug the refrigerator before servicing
• Remove crisper drawers and the cover/frame to access the brace
• Release or remove any retaining tabs/fasteners, swap the brace, and ensure it seats fully
• Handle glass components carefully and avoid overtightening fasteners

This right-side crisper cover support mounts to the refrigerator's inner wall and holds up the crisper cover and glass. Replacing a broken support restores a level shelf and smooth crisper drawer operation.

• Supports the right side of the crisper cover/frame and glass
• Keeps the shelf level to prevent sagging and gaps
• Maintains alignment so crisper drawers open and close smoothly
• Replace if the original support is cracked, warped, or missing tabs

• Disconnect power and clear the shelf area before service
• Remove crisper drawers and the glass/cover; right-hand is as you face the fresh-food compartment
• Release the old support from the liner (tabs/fastener), position the new support, and fully seat it
• Reinstall the glass and drawers; verify the cover sits level and drawers slide properly

This left-hand crisper support mounts inside the fresh food section to hold the crisper shelf and guide the drawer. Replacing a cracked support restores a stable shelf and smooth, reliable drawer movement.

• Supports the crisper glass/shelf on the left side
• Provides the slide track/guide for the crisper drawer
• Helps keep the drawer level and aligned
• Common symptoms: shelf wobble, drawer hard to open/close, drawer drops/falls, visible cracks or missing tabs

• Unplug the refrigerator and clear the crisper area
• Remove the crisper drawers and carefully lift out the glass shelf
• Remove the fasteners securing the old support; transfer any reusable hardware
• Install on the left side as you face the compartment and verify a secure fit before reinstalling glass and drawers

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

The Ladder Hook is an OEM part for Whirlpool refrigerators. It is located on the side or back wall of the refrigerator and is responsible for holding and securing the crisper drawer covers in place. It provides stability and support to ensure that the covers remain properly aligned and securely attached to the refrigerator.

Causes of a faulty ladder hook can include wear and tear over time, damage due to excessive force or impact, or misalignment due to improper installation.

Symptoms of a bad ladder hook may include:

• Crisper drawer covers not staying securely in place
• Visible damage or deformation of the hook
• Difficulty in removing or reattaching the covers

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
