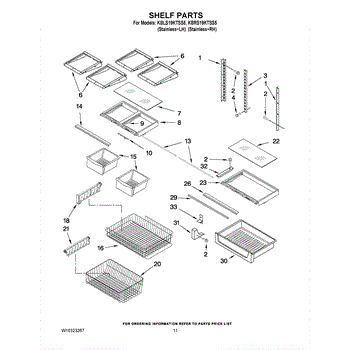

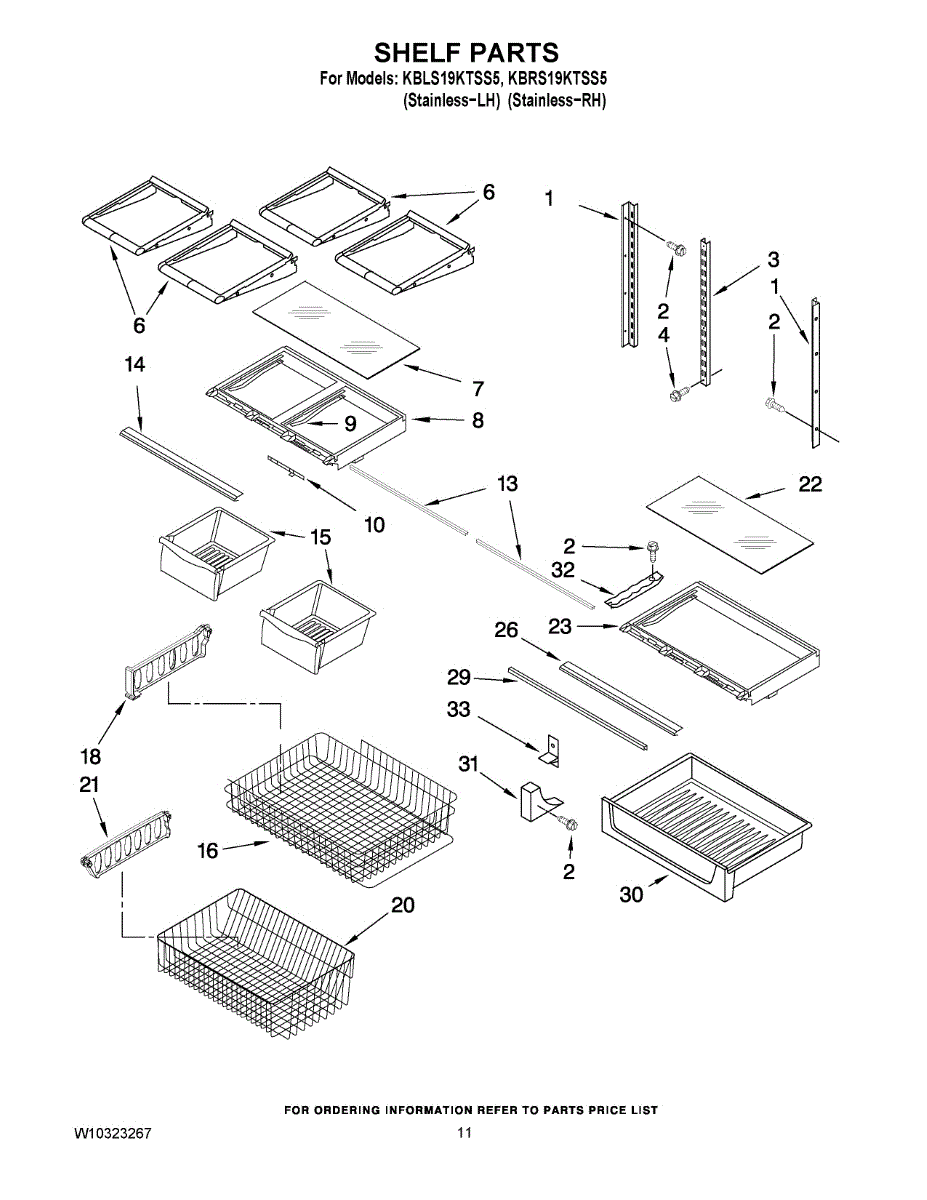

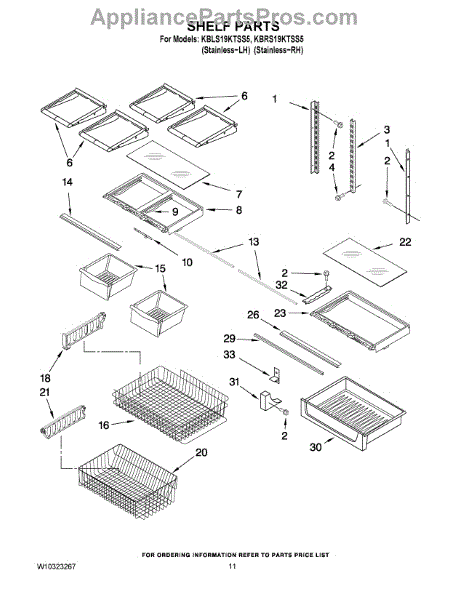

Parts for Kitchenaid KBRS19KTSS5: 06 - Shelf Parts

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement ladder is the OEM-style ladder used to support and stabilize the shelf/rail assembly inside the appliance, restoring proper alignment and preventing sagging or items from shifting during use. What it does:

• Provides sturdy support for the appliance shelf or rail assembly
• Keeps shelves aligned so items sit level and don't slide or tip
• Prevents noise and movement caused by a loose or broken support
• Helps maintain proper interior spacing for storage

• Disconnect power to the appliance before starting any repair
• Remove nearby shelves or trim to access the ladder; keep track of fasteners
• Inspect surrounding clips and rails; replace damaged hardware as needed

This refrigerator glass shelf replaces a cracked or missing shelf to restore a stable, easy-to-clean storage surface. It helps you organize groceries and keeps containers level so you can use all available space confidently. What it does

• Provides a flat, supportive surface for food storage
• Restores proper spacing and organization in the compartment
• Common symptoms: cracked, chipped, or shattered glass; shelf won't sit level; items tip over; missing shelf
• Helps prevent items from falling and reduces spill risk

• 1 glass shelf

• Remove food and bins in the area; slide out the damaged shelf carefully
• Wear cut-resistant gloves and handle glass by the edges; do not flex or twist
• Align with the side rails or frame and seat evenly until fully engaged
• Do not overload the shelf; follow your model's recommended weight limits

This refrigerator crisper cover glass sits above the produce drawers to create a solid shelf and help the bins seal properly. Replace cracked or missing glass to restore safe storage space and consistent crisper performance.

• Forms the shelf/cover above the crisper drawers and supports stored items
• Helps the drawers seal to maintain proper humidity for produce
• Replaces damaged, cracked, or missing glass that creates an unstable surface
• Common symptoms: broken/shattered pane, sagging shelf, items tipping, drawers not closing or sealing flush

• Unplug the refrigerator and clear the shelf area before starting
• Remove the crisper drawers; lift the cover if needed and slide the old glass out
• Handle glass with two hands; wear gloves if the old panel is broken
• Ensure the new glass seats fully in the cover/frame before reinstalling drawers and food

This replacement frame is the structural support piece that holds and aligns an interior component, helping keep items level and parts seated correctly. Replacing a damaged frame restores proper support, fit, and smooth operation. What it does:

• Provides rigid support for the component it houses
• Maintains alignment so parts fit and move as intended
• Helps prevent sagging, wobble, or poor seating of inserts
• Common symptoms include visible cracks, broken tabs/corners, or difficulty sliding/positioning related parts

• 1 frame

• Disconnect power (and water supply if applicable) before servicing
• Remove contents and any glass/insert from the old frame
• Transfer reusable inserts or hardware from the old frame to the new one
• Ensure all tabs and rails are fully engaged before reloading

The Center Crisper Rail is an OEM part for Whirlpool refrigerators. It serves as a support for the crisper drawer, helping to guide and stabilize the drawer as it slides in and out.

Symptoms of a bad Center Crisper Rail include:

• Difficulty in sliding the crisper drawer in or out.
• The drawer sagging or not aligning properly when closed.
• Unusual noises or resistance when moving the drawer.

Causes of a bad center crisper rail can include physical damage from overloading the drawer, wear and tear from regular use, or breakage due to brittle plastic and aging components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This crisper brace supports the crisper cover/shelf in 30-inch refrigerators, restoring rigidity so the glass doesn't sag and the drawers slide smoothly. Replace a cracked or missing brace to protect the cover and maintain proper drawer alignment. What it does

• Provides structural support for the crisper cover/shelf
• Helps prevent bowing, sagging, or cracking under load
• Keeps crisper drawers aligned for smooth opening and closing
• Common symptoms: broken/warped brace, sagging cover, drawers binding or misaligning

• 1 crisper brace

• Disconnect power before servicing; remove food from the crisper area
• Pull out crisper drawers and lift off the glass/cover
• Release or unfasten the old brace; seat the new brace fully in tabs or screw locations
• Reinstall the cover and drawers; handle glass carefully to avoid breakage

This crisper shelf trim replaces the edge piece on your refrigerator's crisper cover. It restores a secure, finished lip you can grip, supports the glass, and helps drawers open and close smoothly when the original trim is damaged or missing.

• Attaches to the edge of the crisper cover/shelf to provide a clean, finished front lip
• Helps stabilize and protect the crisper cover glass
• A worn, cracked, loose, or missing trim can cause drawers to catch or the cover to feel unstable
• Restore proper function and appearance of the crisper cover area

• Unplug the refrigerator before servicing
• Remove food, lift out the crisper cover/shelf, and handle the glass carefully
• Slide or snap the old trim off; align and press the new trim fully onto the shelf edge (check orientation)
• Reinstall the cover and drawers; ensure the trim is fully seated and drawers move freely

This freezer basket holds and organizes frozen foods inside your refrigerator freezer, keeping items accessible and preventing loose product from shifting. Durable molded construction fits into the freezer compartment for reliable storage. What it does:

• Provides a removable storage bin to organize frozen items and maximize usable freezer space
• Keeps small or loose packages contained so they don't fall behind shelves
• Makes loading and unloading faster by grouping items in one accessible tray
• Visible, open-top design helps you see contents at a glance

• One freezer basket

• Always unplug the appliance or disconnect power before servicing
• Remove all food and empty the freezer compartment before installing
• Slide basket into existing guides or supports until it seats securely; no special tools generally required
• Inspect mounting rails or supports for damage and replace if worn to ensure proper fit

This refrigerator crisper cover glass sits above the produce drawers to create a solid shelf and help the bins seal properly. Replace cracked or missing glass to restore safe storage space and consistent crisper performance.

• Forms the shelf/cover above the crisper drawers and supports stored items
• Helps the drawers seal to maintain proper humidity for produce
• Replaces damaged, cracked, or missing glass that creates an unstable surface
• Common symptoms: broken/shattered pane, sagging shelf, items tipping, drawers not closing or sealing flush

• Unplug the refrigerator and clear the shelf area before starting
• Remove the crisper drawers; lift the cover if needed and slide the old glass out
• Handle glass with two hands; wear gloves if the old panel is broken
• Ensure the new glass seats fully in the cover/frame before reinstalling drawers and food

This replacement frame is the structural support piece that holds and aligns an interior component, helping keep items level and parts seated correctly. Replacing a damaged frame restores proper support, fit, and smooth operation. What it does:

• Provides rigid support for the component it houses
• Maintains alignment so parts fit and move as intended
• Helps prevent sagging, wobble, or poor seating of inserts
• Common symptoms include visible cracks, broken tabs/corners, or difficulty sliding/positioning related parts

• 1 frame

• Disconnect power (and water supply if applicable) before servicing
• Remove contents and any glass/insert from the old frame
• Transfer reusable inserts or hardware from the old frame to the new one
• Ensure all tabs and rails are fully engaged before reloading

This crisper brace supports the crisper cover/shelf in 30-inch refrigerators, restoring rigidity so the glass doesn't sag and the drawers slide smoothly. Replace a cracked or missing brace to protect the cover and maintain proper drawer alignment. What it does

• Provides structural support for the crisper cover/shelf
• Helps prevent bowing, sagging, or cracking under load
• Keeps crisper drawers aligned for smooth opening and closing
• Common symptoms: broken/warped brace, sagging cover, drawers binding or misaligning

• 1 crisper brace

• Disconnect power before servicing; remove food from the crisper area
• Pull out crisper drawers and lift off the glass/cover
• Release or unfasten the old brace; seat the new brace fully in tabs or screw locations
• Reinstall the cover and drawers; handle glass carefully to avoid breakage

The Utility Pan is an OEM part for Whirlpool refrigerators. It is responsible for providing additional storage space in the refrigerator through a sliding drawer.

The utility pan is designed with smooth roller glides to allow for easy and quiet opening and closing of the drawer. It provides a flexible storage solution for taller or bulkier items that may not fit elsewhere in the refrigerator.

Causes of a bad utility pan can include worn glides or rollers resulting in difficult opening/closing, or damage to the assembly components themselves through heavy use over time.

Symptoms of a bad utility pan include:

• The drawer failing to fully close or open
• Items inside tipping over due to uneven motion
• Noise or scraping sounds when operating the drawer
• Physical damage or deformation of the assembly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This right-side crisper cover support mounts to the refrigerator's inner wall and holds up the crisper cover and glass. Replacing a broken support restores a level shelf and smooth crisper drawer operation.

• Supports the right side of the crisper cover/frame and glass
• Keeps the shelf level to prevent sagging and gaps
• Maintains alignment so crisper drawers open and close smoothly
• Replace if the original support is cracked, warped, or missing tabs

• Disconnect power and clear the shelf area before service
• Remove crisper drawers and the glass/cover; right-hand is as you face the fresh-food compartment
• Release the old support from the liner (tabs/fastener), position the new support, and fully seat it
• Reinstall the glass and drawers; verify the cover sits level and drawers slide properly

This left-hand crisper support mounts inside the fresh food section to hold the crisper shelf and guide the drawer. Replacing a cracked support restores a stable shelf and smooth, reliable drawer movement.

• Supports the crisper glass/shelf on the left side
• Provides the slide track/guide for the crisper drawer
• Helps keep the drawer level and aligned
• Common symptoms: shelf wobble, drawer hard to open/close, drawer drops/falls, visible cracks or missing tabs

• Unplug the refrigerator and clear the crisper area
• Remove the crisper drawers and carefully lift out the glass shelf
• Remove the fasteners securing the old support; transfer any reusable hardware
• Install on the left side as you face the compartment and verify a secure fit before reinstalling glass and drawers

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

The Ladder Hook is an OEM part for Whirlpool refrigerators. It is located on the side or back wall of the refrigerator and is responsible for holding and securing the crisper drawer covers in place. It provides stability and support to ensure that the covers remain properly aligned and securely attached to the refrigerator.

Causes of a faulty ladder hook can include wear and tear over time, damage due to excessive force or impact, or misalignment due to improper installation.

Symptoms of a bad ladder hook may include:

• Crisper drawer covers not staying securely in place
• Visible damage or deformation of the hook
• Difficulty in removing or reattaching the covers

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
