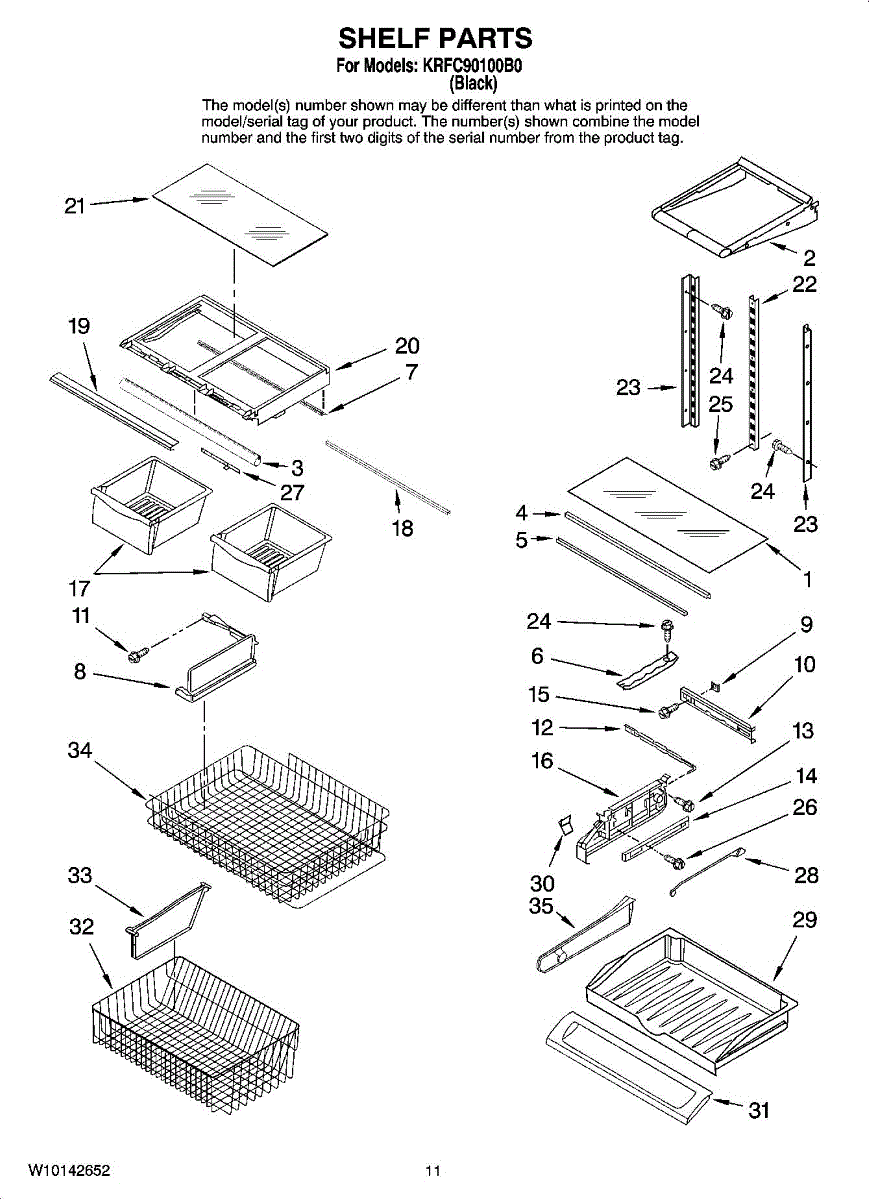

Parts for Kitchenaid KRFC90100B0: 06 - Shelf Parts

This replacement glass fits the pantry cover above the full-width deli/pantry drawer in your refrigerator, restoring a sturdy shelf surface and helping seal the bin below. Replace damaged or missing glass to keep items supported and the drawer operating as designed.

• Creates the rigid shelf surface over the pantry/deli drawer
• Helps the cover seal the bin for more consistent conditions in the drawer
• Replace if the glass is cracked, shattered, bowed, or missing
• Can resolve a wobbly shelf, poor cover support, or gaps over the pantry bin

• Disconnect power and wear cut-resistant gloves when handling glass
• Remove food items; lift/release any trim and slide the old glass out of the cover frame
• Clean the frame channels; slide the new glass fully into place without forcing
• Reinstall trim and drawer; verify the cover opens/closes and the shelf is stable

This is the front seal for the refrigerator's crisper compartment. It restores a tight barrier at the drawer's front edge so the crisper closes flush and maintains proper humidity to help keep produce fresh.

• Seals the front edge of the crisper to limit air leaks between the drawer and fresh food compartment
• Helps maintain intended humidity levels inside the crisper
• Restores smooth, flush closure of the drawer front
• Replace if the seal is torn, deformed, or missing; symptoms can include excess condensation or wilting produce

• Unplug the refrigerator and remove the crisper drawer
• Pull the worn seal off the crisper front/channel and clean the mating surface
• Warm the new seal in hot water to improve flexibility; press it evenly into place and ensure corners are fully seated
• Reinstall the drawer and verify proper alignment and closure

This exterior glass support holds the oven door's outer glass securely in place so the door stays aligned and the glass doesn't shift or rattle during use. Replaces a cracked, broken or missing support to restore proper door fit and function. What it does:

• Secures the outer oven door glass to the door frame so the glass remains stable
• Prevents glass movement, vibration, or noise when the door is opened or closed
• Helps maintain proper door alignment and a consistent seal
• Common symptom: loose, rattling or misaligned outer door glass

• One exterior glass support

• Disconnect power (and gas, if applicable) before starting any oven door repair
• Handle glass carefully; wear safety gloves and eye protection to avoid injury
• Installation usually requires removing the oven door panel and fastening the support with existing screws/clips

This pantry brace secures the pantry assembly on 36-inch refrigerator pantry units, restoring proper alignment and stability for smooth door operation. It replaces a bent or broken brace to help maintain correct pantry support and fit. What it does:

• Provides structural support for the pantry/pull-out assembly to prevent sagging or misalignment
• Helps restore smooth opening and closing when the pantry feels loose or uneven
• Replaces damaged or cracked braces that can cause rattling or binding
• Works as a direct-fit replacement for the 36-inch pantry brace used in compatible Whirlpool pantry assemblies

• One pantry brace

• Remove power to the appliance and empty the pantry/pull-out before replacing the brace
• Use appropriate hand tools and avoid overtightening fasteners to prevent damage
• Inspect surrounding hardware and tracks for wear while replacing the brace

The Deli Drawer Track supports and guides the pantry/meat drawer in the refrigerator's fresh food section. Replacing a worn or broken track restores smooth, level drawer movement and helps prevent sticking, sagging, or the drawer coming off its rails.

• Provides a smooth sliding surface and alignment for the deli/pantry drawer
• Supports the drawer weight under the shelf to prevent drooping
• Replaces cracked, warped, or missing rail to correct binding or uneven travel
• Common symptoms: drawer hard to open/close, drops on one side, misaligned, or falls out

• Disconnect power. Remove the deli drawer and shelf/cover as needed to access the track.
• Retain and reuse existing screws; transfer any stops or trim from the old track if your model uses them.
• Position the new track, secure with screws, and verify smooth operation before reloading the drawer.
• Many models use separate left and right tracks—match the side shown on your model's parts diagram.

Replace the worn rear crisper seal to restore a proper barrier at the back of the crisper assembly. This simple gasket helps reduce air leaks so your drawer can hold the right humidity and cooling for fresher produce.

• Forms a seal along the rear edge of the crisper area to limit air leaks
• Helps maintain proper airflow and humidity within the crisper
• Direct replacement for seals that are torn, compressed, or missing
• Can help address excess condensation, frost, or temperature fluctuation in the drawer

• Unplug the refrigerator before servicing
• Remove crisper drawers and lift off the crisper cover/shelf carefully
• Remove the old seal and clean the mating surfaces
• Install the new seal along the rear edge with even contact, then reassemble

This slide temperature control is the user-access interface that moves the thermostat connection to select dryer heat levels. It restores responsive, indexed temperature selection for standard slide-style dryer controls. What it does

• Moves the internal contact to select low/medium/high heat settings for the dryer
• Replaces worn or loose slider that causes inconsistent or stuck temperature selection
• Helps correct symptoms such as inability to change heat level, intermittent temperature changes, or a slider that feels loose or won't stay in position
• Works as the mechanical interface between the console knob/lever and the dryer's control assembly

• One slide temperature control (single slider assembly)

• High-level replacement for users comfortable removing control consoles; disconnect power before service
• Handle control panel clips and trim carefully to avoid cracking plastic bezels
• Verify proper seating and alignment of the slider on the control shaft before reassembly

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Pantry Drawer Rail is an OEM part for Whirlpool refrigerators. This part allows it to slide in and out smoothly for easy access to stored food items.

Causes of a bad pantry drawer rail can include repeated heavy loads, general wear and tear, or accidental damage.

Symptoms of a bad pantry drawer rail include:

• Difficulty sliding the pantry drawer in and out
• Pantry drawer not staying in place
• Uneven or wobbly drawer movement
• Visible damage or bending of the rail

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Note: Right Pantry End Cap

The Pantry END CAP is an OEM part for Whirlpool refrigerators. It functions as a structural component that helps to stabilize and support the pantry drawer, ensuring it slides smoothly and remains level within the refrigerator.

Symptoms of a bad Pantry END CAP include:

• The pantry drawer becoming difficult to open or close.
• Noticeable sagging or misalignment of the drawer, affecting its function.
• Unusual noises or resistance when moving the drawer, indicating improper support.

Causes of a bad pantry drawer support can include excessive weight in the drawer that exceeds design limits, physical impacts from loading or unloading items, or general wear and tear from frequent use.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the left-hand side Pantry Drawer Support, order part number WP12656105.

This refrigerator crisper pan is the sliding produce bin in the fresh food section. Replace a cracked or missing bin to restore smooth operation, contain spills, and keep fruits and vegetables organized.

• Stores fruits and vegetables in the fresh food compartment
• Slides along the shelf rails for easy opening and closing
• Helps contain small leaks to protect surrounding shelves and liners
• Replaces a cracked, chipped, warped, or missing drawer that sticks or falls off track

• Disconnect power to the refrigerator before servicing
• Remove contents and the shelf/cover above the drawer if needed
• Slide the old pan straight out; align the new pan with the tracks and push in until fully seated
• Confirm smooth travel before reloading items

This CRSP brace is a replacement support component that helps stabilize and align the 36-inch crisp/crisper assembly for proper drawer operation and fit. Restores secure mounting and reduces movement or vibration of the crisp area. What it does:

• Provides structural support for the crisp/crisper assembly so drawers and panels sit squarely
• Helps stop sagging, misalignment, rattling or binding of the crisp area
• Maintains correct spacing for smooth opening and closing
• Replaces worn or damaged braces that compromise stability

• One CRSP brace

• Disconnect power to the appliance before beginning work to avoid electrical or mechanical hazards
• Basic hand tools are typically required; retain original fasteners
• Follow OEM service literature for exact removal and installation steps and torque recommendations
• Support panels or drawers while removing/installing the brace to prevent damage or injury

This is the glass insert for the crisper cover in your refrigerator. It sits above the crisper drawers to provide a sturdy shelf surface and help seal the drawers, restoring safe, usable storage when the original glass is damaged.

• Fits into the crisper cover frame to create the shelf surface above the drawers
• Helps the drawers maintain proper conditions by acting as the cover/lid
• Replaces cracked, chipped, or missing glass to restore stability
• Common symptoms: broken or shattered glass, unstable or sagging shelf, items tipping through the opening

• Disconnect power and remove food from the area before servicing
• Wear cut-resistant gloves; handle glass carefully
• Remove drawers if needed, lift out old glass from the cover frame, and clean the channels
• Set the new glass evenly into the frame without forcing; reinstall drawers

This ladder side is a replacement side support that secures shelves and internal components, restoring stable shelf alignment and preventing sagging or misalignment in compatible Whirlpool refrigerators and freezers. What it does:

• Provides structural support for interior shelving assemblies
• Keeps shelves aligned to prevent tipping or uneven loads
• Replaces cracked, warped or broken side supports that allow shelves to sag
• Helps restore proper shelf engagement and safe storage of food items

• One ladder side support

• Disconnect power to the appliance before servicing to avoid electrical hazards
• Handle plastic parts carefully to avoid damage during removal/installation
• Basic hand tools (screwdriver, nut driver) may be required; retain screws and hardware from the original part

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement screw fastens appliance components securely in place to maintain proper alignment and a tight, rattle-free fit. Install it when a fastener is missing, stripped, or rusted to restore stability and prevent loosening.

• Secures brackets, panels, trim, and assemblies inside the appliance
• Helps maintain proper alignment and support of mounted parts
• Can reduce vibration, buzzing, or rattling from loose hardware
• Replace when the original screw is missing, corroded, or the head/threads are stripped

• Disconnect power; for refrigerators, also shut off the water supply before servicing
• Use the correct driver bit to avoid stripping the screw head
• Start threads by hand to prevent cross-threading, then tighten snugly without overtightening
• Reuse any original washers or spacers if required by your application

The Humidity Control Slide is an OEM part for Whirlpool refrigerators.This part regulates the humidity levels in the crisper drawers, ensuring optimal conditions for the storage of fruits and vegetables. The slide measures approximately 9 inches wide by 1-1/2 inches deep.

Causes of a bad Humidity Control Slide can include wear and tear over time, physical damage due to mishandling, or buildup of debris that hinders its movement.

Symptoms of a bad Humidity Control Slide include:

• Inability to adjust humidity settings
• Visible damage or cracks on the slide
• Excessive moisture or dryness in the crisper drawers

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Utility Pan is an OEM part for Whirlpool refrigerators. It is a storage drawer for various items in your refrigerator, such as deli meats, cheeses, and other small food items.

A bad utility drawer pan can be caused by regular use, accidental damage, or wear and tear over time. If you notice cracks, breaks, or warping in the pan, it may be time to replace it.

Symptoms of a bad utility drawer pan include:

• Cracks or breaks in the pan
• Warping or misalignment of the pan
• Difficulty in opening or closing the drawer

Replace your damaged or worn-out utility drawer pan with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Replacement control knob that restores positive, easy-to-use control of appliance settings. Installs quickly to replace a cracked, stripped or missing knob so you can accurately select cycles, temperatures or timers. What it does:

• Fits onto the appliance control shaft to turn and select settings.
• Replaces knobs that are cracked, loose, hard to turn, or have stripped splines.
• Restores secure grip and precise selection of cycles, temperatures or timers.
• Matches factory fit and appearance when installed.

• Always disconnect power (and gas if applicable) before servicing the appliance.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob fully onto the shaft.
• If the knob does not seat easily, check shaft alignment and spline orientation before applying force.

The Lid Assembly, Pantry is an OEM part for Whirlpool refrigerators. It serves as a cover for the pantry drawer, helping to maintain the proper temperature and humidity levels to keep produce fresh. The lid measures approximately 30 inches by 6 inches.

Causes of a bad Lid Assembly, Pantry can include accidental damage such as cracks or breakages, warping from the cold environment within the refrigerator, or issues with the sealing edge that prevents it from closing properly.

Symptoms of a bad Lid Assembly, Pantry include:

• Difficulty fitting the lid on the pantry drawer.
• Cracks or breaks that compromise the seal.
• Warping that prevents the lid from lying flat.
• Condensation inside the pantry drawer due to poor sealing.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace a damaged or missing freezer basket to restore organized, easy-access storage in your freezer compartment. This basket keeps items contained and properly positioned to support airflow and make loading and retrieval easier.

• Holds and organizes frozen items within the freezer compartment
• Seats on designated rails or locator tabs for secure, level placement
• Helps maintain airflow around stored packages
• Common symptoms: cracked, bent, or broken basket; won't sit level; or missing

• Empty the freezer area and remove the existing basket
• Align the new basket with the rails or locator tabs and lower into place—do not force
• Usually no tools required
• Wear gloves to protect hands from cold surfaces and sharp edges

Restore tidy storage in your refrigerator's deli/pantry drawer with this Pantry Drawer Divider. Replacing a cracked or missing divider keeps foods separated and helps the drawer slide and close properly without contents shifting or tipping.

• Separates and stabilizes items within the deli/pantry drawer for better organization
• Helps prevent contents from sliding and causing the drawer to bind
• Restores proper fit when the original divider is cracked, warped, or missing
• Typical symptoms: divider falls out or won't stay positioned; difficulty keeping foods organized

• Disconnect power to the refrigerator and remove items from the deli/pantry drawer
• Fully extend and lift out the drawer as directed in your user manual
• Align the divider with the molded slots/grooves and press or slide into place until secure
• Reinstall the drawer and verify smooth operation; do not force parts
