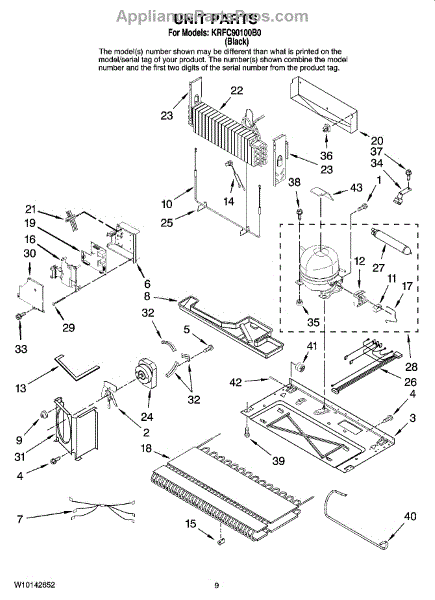

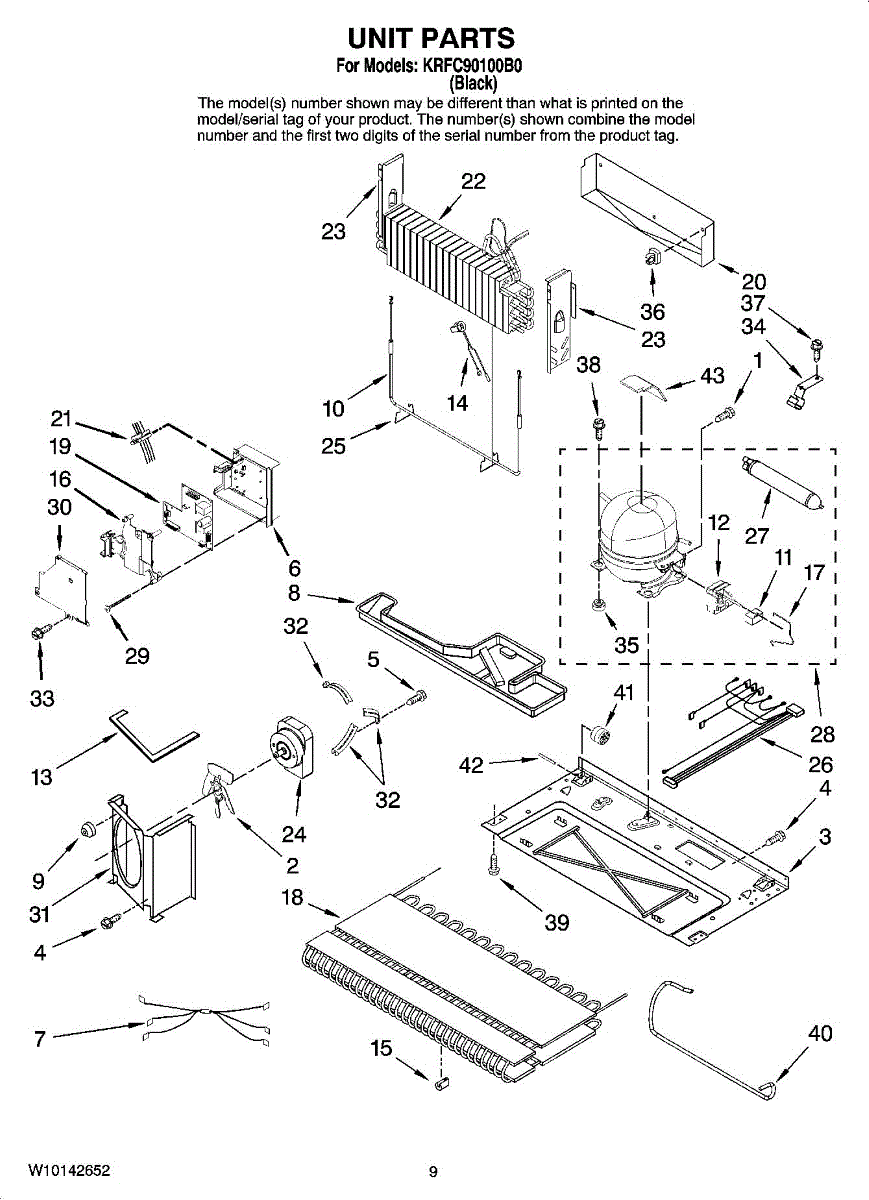

Parts for Kitchenaid KRFC90100B0: 05 - Unit Parts

Fix a refrigerator that's not cooling properly with a new condenser fan blade. Restores airflow across condenser coils for consistent temperatures.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Fix a refrigerator that's not cooling properly or running constantly. This condenser coil dissipates heat to keep your fridge at the right temperature.

Fix a refrigerator that won't cool or has a humming compressor with this running capacitor. Restores smooth motor operation and prevents overheating.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Rubber grommet that cushions and secures the refrigerator condenser assembly. Replace if cracked, worn, or missing to reduce vibration and noise.

Refrigerator not cooling properly? This 36-inch condenser coil removes heat from your fridge. Common fix for warm temps and overheating compressors.

36-inch drip tray for refrigerators. Collects water and condensation beneath the appliance. Replace if cracked, warped, or missing to prevent leaks.

This genuine replacement part is an evaporator used in refrigerators. The evaporator is the part that exchanges heat to cool the refrigerator. It is the component of the refrigerator that absorbs the heat from the air inside, turning it cool through absorption. If the refrigerator is no longer cooling properly, this could mean it's time for a new evaporator. This is a genuine replacement evaporator compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

This is a filter drier installed in the sealed refrigeration system that removes moisture and contaminants from the refrigerant as it circulates. It protects the compressor and other components from damage caused by moisture or debris in the refrigerant lines. Replace this filter drier if the refrigerator or ice machine is not cooling properly, the compressor is struggling, or during any sealed system repair where the refrigerant lines have been opened.

Fix a refrigerator that won't cool or has stopped running. This compressor is the heart of your cooling system. Professional repair recommended.

This condenser shroud is the molded plastic housing that directs airflow across the refrigerator condenser coils to help the cooling system run efficiently. Replaces a cracked or broken shroud to restore proper airflow and fit. What it does:

• Directs and channels airflow across the condenser coils for effective heat dissipation
• Protects condenser coils and fan from debris and accidental contact
• Restores correct clearance and alignment when damaged tabs or mounting points fail
• Can reduce excessive run-time or higher temperatures caused by obstructed airflow

• One condenser shroud

• Always unplug the appliance before beginning repairs
• Access typically requires moving the fridge and removing the rear access panel; remove condenser fan or related fasteners as needed
• Handle edges and the condenser coil area carefully to avoid cuts or coil damage
• Replace any broken mounting clips or hardware as necessary

This replacement screw fastens internal components and panels so parts stay secure and quiet. It's a direct-fit fastener used where the original mounting screw is missing or damaged to restore proper assembly. What it does:

• Secures panels, brackets or components to prevent movement and vibration
• Restores proper alignment for covers and access panels
• Stops rattling or loose-fitting parts caused by a missing or stripped screw
• Works as the factory-specified fastener for the original mounting point

• The screw location and type before installing; use the original hole and thread
• Power off and disconnect the appliance before accessing internal components
• Start the screw by hand to avoid cross-threading, then snug with the appropriate screwdriver
• Do not overtighten — stop once the part is secure to avoid stripping or cracking

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Short machine screw that secures refrigerator panels, trim pieces, and brackets. Replace when lost, stripped, or damaged to keep assemblies stable.

This is a discharge tube used in the refrigerator's sealed refrigeration system, connecting the compressor output to the condenser. It carries high-pressure refrigerant as part of the cooling cycle. Replace this tube if it shows signs of damage, kinking, or refrigerant leaks that cause the refrigerator to stop cooling properly.

Supports and enables smooth movement of your refrigerator cabinet. Replace if cracked, broken, or crumbled to restore stable positioning and mobility.

This small metal fastener secures the roller assembly to the refrigerator's bottom panel, allowing smooth door movement. Located underneath the appliance, it needs replacement if the refrigerator rocks, tilts, or has difficulty rolling when moved.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
