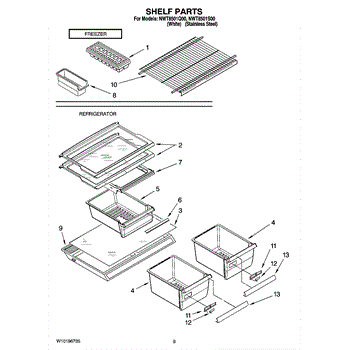

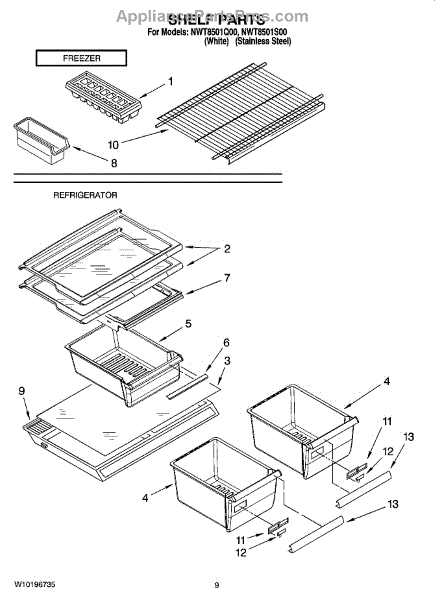

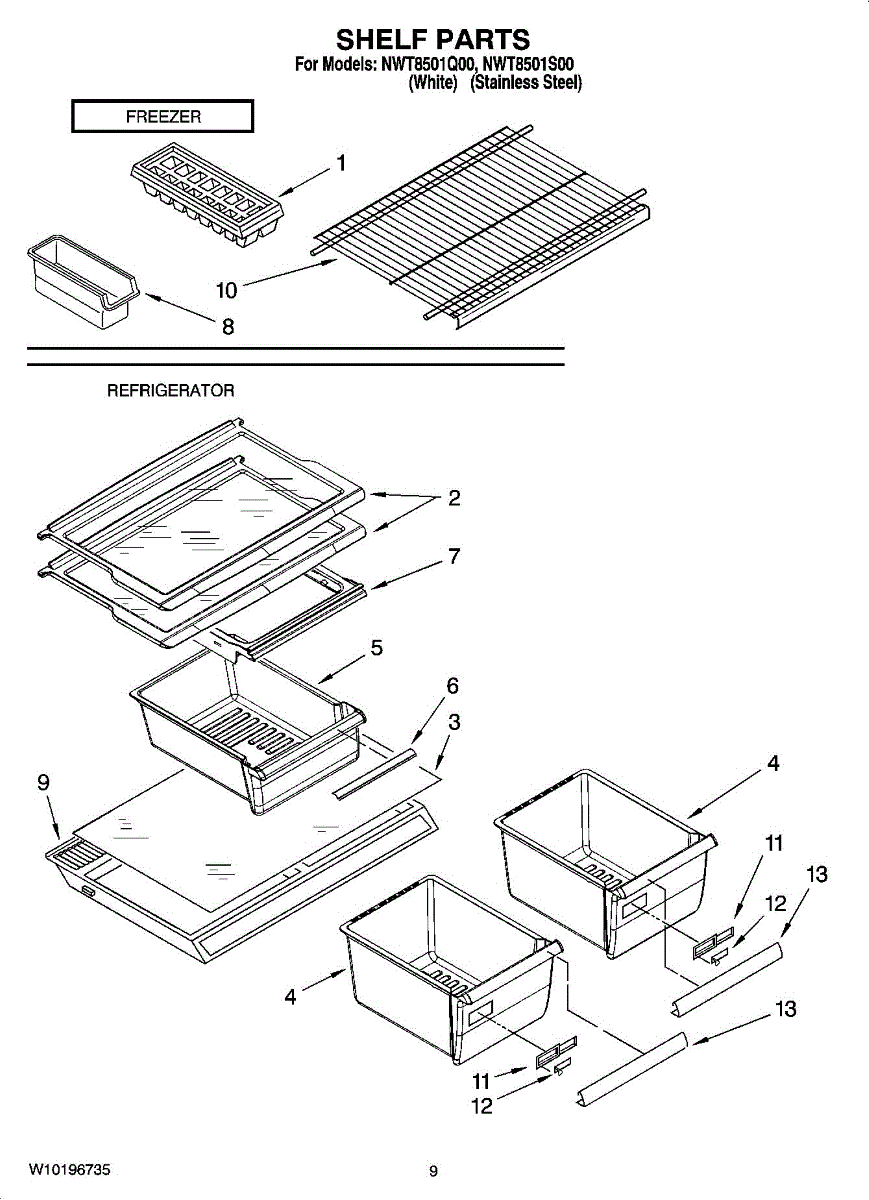

Parts for Whirlpool NWT8501S00: 05 - Shelf Parts, Optional Parts

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface for storing food items, allowing for efficient organization and easy visibility within the refrigerator. The glass measures approximately: 21.6" X 16.8"

Causes of a bad glass shelf can include cracks or breaks due to heavy loads or accidental impacts, edge chipping from repeated use, or wear and tear over time. These issues can compromise the integrity and safety of the shelf.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This component, often referred to as a crisper drawer, is designed to store fruits and vegetables at optimal humidity levels, helping to keep produce fresh for longer periods. It fits into the refrigerator's designated crisper area, providing an organized space for fresh food items. The pan measures approximately 13 inches by 10 inches at the base.

Symptoms of a failing Crisper Pan include:

• Cracks or damage to the plastic, which can cause spills or make the drawer difficult to slide in and out
• The pan not fitting properly into its designated slot, leading to a loose or wobbly fit
• Reduced ability to maintain optimal humidity levels, causing produce to spoil faster
• Difficulty in opening or closing the drawer smoothly

Causes of a bad crisper pan can include regular wear and tear from frequent use, physical damage from heavy items or impacts, and exposure to extreme temperatures or cleaning chemicals that can degrade the plastic over time.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Meat Pan is an OEM part for Whirlpool refrigerators. This pan stores meat and other perishable items, maintaining an optimal environment to keep them fresh for longer periods.

Over time, wear and tear, cracking from overloading, or warping due to temperature changes can affect the pan’s performance.

Symptoms of a bad meat pan include:

• Visible cracks or damage to the pan
• Difficulty sliding the pan in and out of its compartment
• Spills or leaks within the refrigerator
• Food not staying fresh as long as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Ice cube/utility container.

The Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as a protective cover for the crisper drawers, helping to maintain optimal humidity levels to keep fruits and vegetables fresh.

Causes of a bad crisper cover can include normal wear and tear, cracks or breaks from heavy items being placed on it, and damage from accidental impacts.

Symptoms of a bad crisper cover include:

• Visible cracks or breaks in the cover
• Difficulty in sliding the crisper drawers in and out
• Reduced freshness of stored fruits and vegetables due to improper humidity control
• Items falling through or not staying properly on top of the crisper cover

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Epoxy repair kit - aluminum tubing.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Complete Add-On Kit is an OEM replacement part for Whirlpool side-by-side refrigerators. The kit includes the icemaker head, auger motor assembly, wire harness, installation hardware, and more. These allow ice production capability to be added to older refrigerators that were not initially equipped with icemaking.

Causes of a bad icemaker can include wear and tear from regular use, mineral buildup from hard water, and electrical issues that affect the ice production cycle.

Symptoms of a bad icemaker include:

• No ice production or slow ice-making
• Ice cubes that are irregularly shaped or smaller than usual
• Leaks or water pooling in the ice maker area
• Unusual noises during the ice-making process

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
