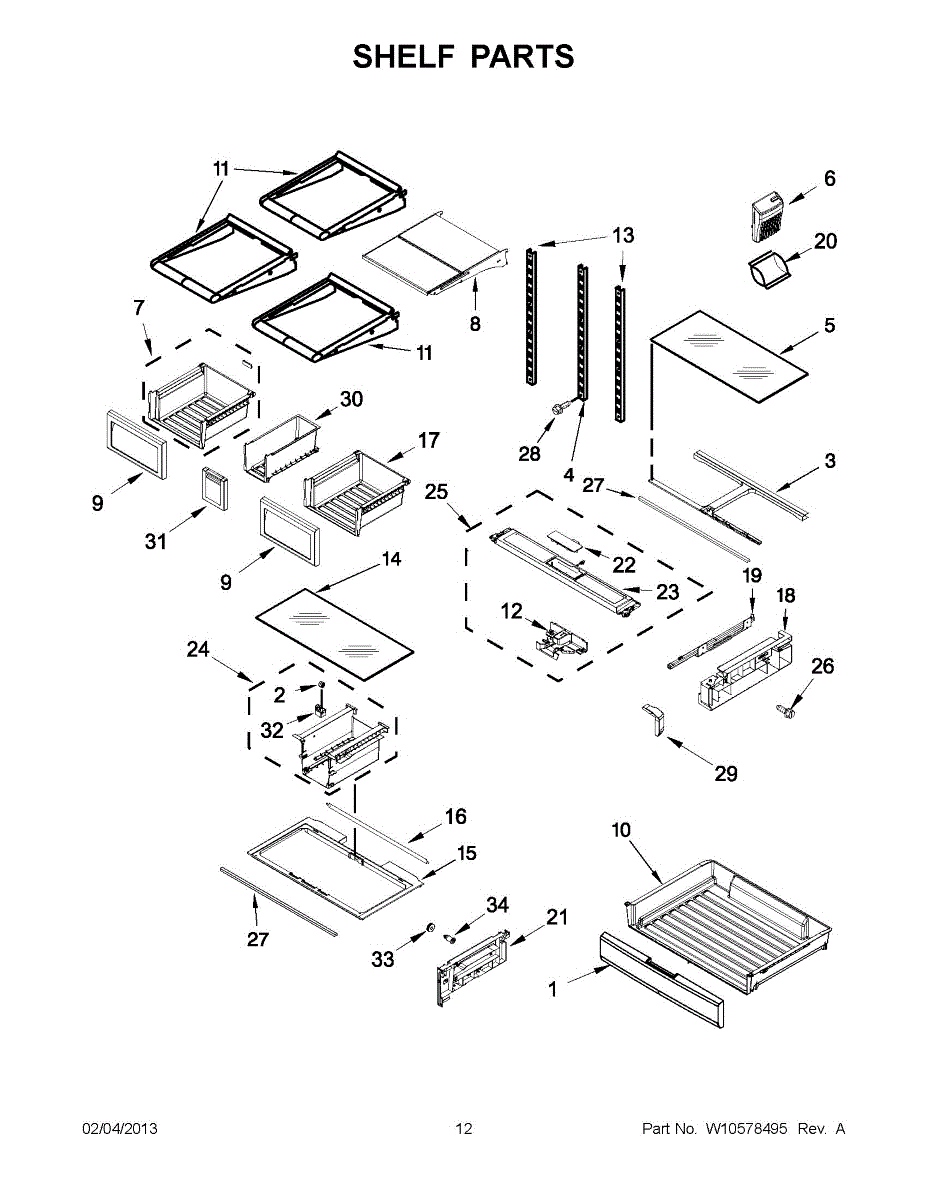

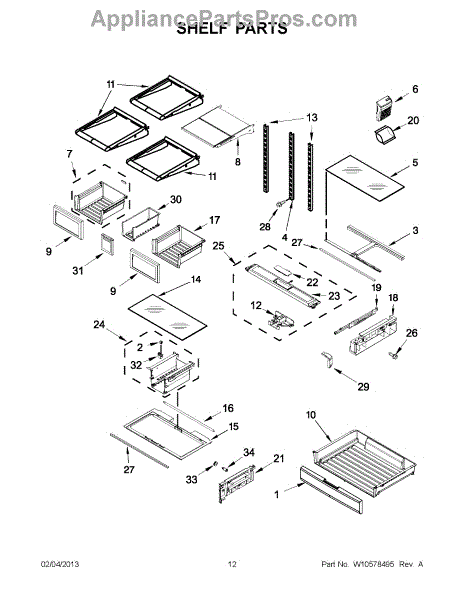

Parts for Whirlpool WRF736SDAW10: 06 - Shelf Parts

Replace a cracked or loose front on your refrigerator's full-width pantry/deli drawer. This pantry drawer front restores a secure handle and clean look so the drawer operates smoothly and keeps contents organized. What it does:

• Serves as the front panel and handle for the refrigerator's pantry/deli drawer
• Replaces broken, cracked, warped, or missing fronts
• Helps the drawer align, slide, and close properly
• Common symptoms: loose or missing front, difficulty opening/closing, visible damage

• Includes 1 pantry drawer front

• Empty and remove the pantry/deli drawer from the refrigerator
• Release retaining tabs or screws to separate the old front from the bin; transfer any hardware if reused
• Snap or screw the new front into place, ensuring full engagement on both sides
• Disconnect power and wear gloves to protect hands from sharp plastic edges

Replacement drum support roller that helps the dryer drum rotate smoothly and quietly. Installs where the drum rests to reduce noise and uneven rotation caused by worn or damaged rollers. What it does:

• Supports and guides the tumble/drum as it spins to maintain proper alignment.
• Reduces squeaks, rumbling, and scraping noises from worn or seized rollers.
• Prevents excessive belt wear and uneven drum movement that can lead to vibration.
• Restores smoother rotation when original rollers are cracked, worn, or binding.

• Disconnect power (and gas, if applicable) before beginning any repair.
• Access the roller by removing the dryer access panel or drum per your model's service instructions; support the drum to prevent it from falling.
• Inspect adjacent parts (idler, rollers, shaft, and belt) and replace if worn to avoid repeated failures.

This sachet holder housing assembly secures single-use detergent or cleaning sachets inside the dispenser so they stay in place and release correctly during cycles. Replacing a cracked or broken holder restores reliable sachet positioning and dispensing. What it does:

• Holds detergent/cleaning sachets in the dispenser so they don't shift or drop into the tub.
• Ensures sachets stay aligned for proper release during the wash or cleaning cycle.
• Helps prevent sachets from rupturing or blocking the dispenser area.
• Common symptoms of a bad holder: sachets falling out, sachets not dispensing properly, or poor wash/cleaning results.

• Disconnect power (and water, if required) before servicing the dispenser area.
• Access the dispenser per the owner's manual; the holder typically snaps into place or secures with a small fastener.
• Handle plastic clips and tabs gently to avoid breakage; use a non-marring pry tool if needed.

Note: The pan does not come with the Axle WPW10257246 and Roller WPW10248544. Order quantity needed.

The Crisper Drawer Front is an OEM part for Whirlpool refrigerators. This maintains the appearance and functionality of the refrigerator's crisper drawer, where fruits and vegetables are stored. It attaches to the crisper drawer to enclose and preserve the freshness of its contents by maintaining optimal humidity levels.

Common causes of damage include regular wear and tear from frequent use, accidental impact, or pressure from overloading the drawer. A compromised drawer front can hinder the drawer’s functionality and aesthetic

Symptoms of a bad Crisper Drawer Front include:

• Cracks or breaks that compromise the seal of the drawer
• Discoloration or fogging that reduces visibility
• Difficulty in sliding the drawer in and out due to misalignment

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Storage Drawer is an OEM replacement part for Whirlpool refrigerators. It provides customizable organization for items like snack foods, beverages, and condiments inside the refrigerator cabinet. The drawer measures approximately 27"x 20"x 6".

Causes of a bad storage drawer can include broken mounting slides, making it difficult to open or close securely. Overpacking may also cause cracks in the plastic construction over time.

Symptoms of a bad storage drawer include:

• Will not stay fully closed when loaded
• Mounting brackets crack or break off from vibration
• Contents spill out easily due to loose fit

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This stationary half-width refrigerator shelf replaces a damaged or missing shelf to restore usable storage and organization. It provides a stable surface for food containers and helps keep items from shifting or stacking into other compartments. What it does:

• Replaces a cracked, broken, missing or warped half-width shelf inside the fridge
• Restores a flat, stable surface for holding food containers, jars and small items
• Helps improve interior organization and prevents items from sliding into drawers or other shelves
• Designed to sit in existing shelf support slots or brackets for a secure fit

• Remove food and nearby shelves or items before installation to avoid spills
• Handle carefully and wear cut-resistant gloves if the shelf is glass or has sharp edges
• Slide the shelf into the existing support rails or snap it into place per the fridge's shelf design
• Replace shelf supports or brackets if damaged before installing this shelf

This tempered glass crisper shelf replaces a broken or missing refrigerator crisper shelf to restore stable storage for produce and deli items. It provides a flat, easy-to-clean surface that fits into crisper compartment supports. What it does:

• Replaces cracked, chipped or missing crisper shelf glass that can no longer support food
• Restores a level surface for drawers and stored items to prevent tipping or spills
• Provides an easy-to-clean barrier that helps contain drips and messes
• Maintains proper shelving layout so drawers and bins slide and sit correctly

• One tempered glass crisper shelf

• Remove all food and drawers from the crisper area before installing
• Handle glass carefully and wear gloves to avoid cuts; place glass into shelf supports and gently set until seated
• Do not force the glass into warped or damaged supports; inspect supports and replace if needed

This refrigerator crisper cover is the frame that supports the glass shelf above the produce bins and forms the tracks the drawers slide on. Replace it to restore a sturdy shelf and smooth, reliable drawer movement.

• Supports the crisper cover glass to create the shelf over the drawers
• Provides rails/support so crisper drawers open and close properly
• Replace if the frame is cracked, bowed, or has broken corners/tabs
• Common symptoms: sagging or broken shelf, drawers binding or falling, visible damage

• Disconnect power and clear the crisper area before starting
• Remove crisper drawers and, if applicable, lift out the glass insert before removing the old cover
• Seat the new cover on the interior supports; reinstall glass and drawers
• Ensure the shelf is level and drawers slide smoothly

This rear crisper drawer support secures and aligns the refrigerator crisper, keeping the drawer stable and allowing smooth sliding. Replace a worn or broken rear support to restore proper drawer fit and prevent sagging or misalignment. What it does:

• Holds the rear of the crisper drawer on its track so the drawer stays level during use
• Guides and stabilizes drawer movement to prevent sticking or uneven travel
• Prevents the crisper from tilting, falling, or binding when opening and closing
• Works with the existing front support and drawer components to maintain fit

• One rear crisper drawer support (quantity: 1)

• Remove food and the crisper drawer before replacing the support
• Most repairs are simple and require only basic hand tools; handle plastic parts gently to avoid damage
• Disconnect power to the appliance before servicing if you need to move or access electrical components

Note: The pan does not come with the Axle WPW10257246 and Roller WPW10248544. Order quantity needed.

This replacement plate is a small mounting component that secures or supports nearby parts and helps maintain proper alignment and clearance inside the appliance. It restores stable fit and prevents rubbing or movement of adjacent components. What it does

• Provides a firm mounting surface to secure fasteners or assemblies
• Keeps parts aligned to reduce wear and noise
• Helps maintain proper spacing and clearance for moving parts
• Addresses symptoms like loose trim, rattling, or misaligned components

• One replacement plate as shown

• Recommended for technicians or experienced DIYers; verify orientation before removing original
• Disconnect power to the appliance before starting work to avoid shock or injury
• Keep all fasteners and clips; reuse original hardware unless replacements are provided
• Tighten screws to snug only—avoid overtightening which can warp the plate or strip threads

This is a factory replacement plate used as a structural mounting/support piece within the appliance. Replacing a damaged or missing plate restores a secure, correctly aligned connection between parts and helps eliminate looseness or vibration.

• Provides a rigid surface to mount or support related components
• Maintains alignment and spacing within the assembly
• Helps prevent rattling, looseness, or shifting when secured properly
• Replace if bent, cracked, corroded, threads stripped, or missing

• Disconnect power (and shut off gas/water if applicable) before service
• Note hardware locations and orientation; take photos during disassembly
• Transfer any clips or fasteners from the original plate if reused
• Align and level the plate, then tighten fasteners to manufacturer guidance

The Crisper Drawer Support is an OEM part for Whirlpool bottom-mount refrigerators. It is a hidden component that provides structural reinforcement for crisper drawers located on the bottom shelf.

Symptoms of a faulty crisper drawer support include:

• Drawers that do not fully close or aligned improperly
• Excessive movement or noise when opening/closing drawers
• Visible sagging or warping of drawer bottoms over time

Causes can be normal wear under repetitive use or damage from overloading drawers with heavy items. This puts undue stress on support leading to failures.

This OEM replacement fits various Whirlpool, KitchenAid, and Kenmore bottom-mount refrigerator models.

This pantry top cover is the molded interior trim piece that fits above the refrigerator pantry/produce area, restoring a finished look and protecting the pantry opening from wear and debris. It replaces cracked, warped or missing covers. What it does:

• Covers the top of the pantry/produce opening to keep the interior tidy and prevent items from catching on exposed edges
• Restores proper interior trim and appearance after damage or loss
• Helps maintain proper airflow pattern in the pantry area by replacing a missing or damaged cover
• Common symptom: cover is cracked, broken, loose or missing, leaving the pantry edge exposed

• High-level snap-in or screw-in installation; verify fasteners before reassembly
• Remove food and close the door while working; handle gently to avoid scratching the finish
• Unplug or disconnect power to the appliance only if required by your model before accessing internal components

This replacement support helps secure and stabilize its matching component inside your appliance, restoring proper alignment and a solid fit. A worn or broken support can lead to looseness, misalignment, or vibration and noise during use. What it does

• Provides structural support and correct positioning for the associated part or assembly
• Maintains alignment to help ensure smooth operation and proper fit
• Replaces cracked, warped, or missing supports
• Common symptoms: sagging or wobbling component, rubbing/scraping, rattling or vibration, visible damage

• 1 support

• Disconnect power; shut off gas/water if applicable before servicing
• Note the original orientation and mounting points; take a photo for reference
• Transfer any reusable clips/screws from the old part to the new support
• After installation, verify a secure fit and test operation

This replacement cover protects and conceals the appliance's control panel components, restoring a finished appearance and helping keep wiring and switches safe from dust and spills. It's a simple cosmetic and protective part. What it does:

• Covers and protects control panel electronics and switches from dirt and moisture
• Restores the appliance's finished look when the original cover is cracked, warped, or missing
• Helps prevent accidental contact with controls and wiring
• Compatible with standard fasteners used on the control assembly

• Always disconnect power (unplug the appliance or shut off the breaker) before starting work.
• Typical installation requires removing the existing cover and fastening the replacement with common hand tools (screwdriver); keep track of screws and small parts.
• Handle plastic parts gently to avoid scratches or cracks during installation.

A small replacement screw used to secure appliance components and panels. This genuine-style fastener restores proper fit and function when original screws are missing, loose, or damaged. What it does:

• Secures panels, brackets, or small components in place
• Restores proper alignment and prevents rattling or movement
• Replaces stripped, corroded, or lost fasteners
• Works where the appliance design calls for this specific screw size and thread

• Use the matching driver size and apply firm, even pressure to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Disconnect power or move appliance away from utilities when working near electrical or gas components
• Inspect and repair the threaded hole before installing the new screw

This front crisper drawer support secures the refrigerator's front crisper drawer for smooth sliding and correct alignment, reducing sagging and sticking so stored items stay accessible and the drawer operates reliably. What it does:

• Holds the front corner of the crisper drawer in place so the drawer slides and aligns properly.
• Prevents drawer sagging, catching, or uneven movement that can make the drawer hard to open or close.
• Helps maintain proper drawer positioning to protect stored produce and prevent rubbing on the cabinet.
• Works with the existing drawer track and rear support.

• Unplug the appliance or disconnect power before starting any service to reduce electrical risk.
• Empty and remove the crisper drawer before replacing the support; follow the refrigerator's parts diagram for correct orientation.
• Inspect the drawer track and rear support for wear; replace any damaged components to restore smooth operation.

A small mounting screw used to secure appliance panels and components. This genuine replacement restores proper fit and reduces vibration or loose parts when a missing or stripped fastener causes fit issues. What it does:

• Secures panels, trim, or internal components to the appliance frame
• Helps stop rattling or movement caused by a missing or loose screw
• Restores correct alignment where a fastener is lost or damaged
• Works as a direct-fit replacement when the original screw is worn or stripped

• The screw shown/listed

• Disconnect power (and gas if applicable) before any repair
• Use the matching screwdriver or driver bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage
• Keep small parts away from children and store removed hardware for reference

This outer door trim is a factory-style replacement that restores the oven or range's finished appearance and helps seal the control-panel/door gap. It replaces a cracked, bent, or missing trim piece for a clean, factory look. What it does:

• Covers the outer edge of the oven/control opening to improve appearance and finish
• Helps maintain a consistent fit between the door and surrounding cabinet/console
• Prevents debris buildup in the seam and reduces visible gaps or drafts
• Restores proper mounting points if original trim is damaged or warped

• One outer trim piece as pictured

• Turn off and disconnect power (and gas if applicable) before beginning repairs
• Handle trim carefully to avoid scratching the finish; use manufacturer instructions for door/panel removal if required
• Use existing fasteners unless replacements are specified by the manufacturer

This small crisper pan is the replacement plastic tray that sits under the crisper drawer to support produce and catch spills, helping keep the refrigerator interior clean and organized. What it does:

• Supports the crisper drawer and helps keep stored produce level
• Catches moisture and small leaks to protect the refrigerator floor
• Helps contain spills for easier cleanup and prevents mess spreading
• Restores proper fit and function when the original pan is cracked or warped

• Remove all food from the crisper area before replacing the pan
• Slide the crisper drawer out to access the pan; lift out the old pan and set the new pan into the same position
• Inspect surrounding rails and seals for damage while installing
• No special tools required; handle plastic parts gently to avoid cracking

This Whirlpool Front Pan is an OEM part for select Whirlpool refrigerator models. Specifically designed for the interior storage section of the refrigerator, this front pan provides a durable and convenient space for organizing and storing food items.

The front pan in a refrigerator can experience wear or damage over time due to regular use, heavy storage items, or accidental impacts. Common issues include cracking, warping, or breaking, which can reduce the usability of the refrigerator's storage space and affect its overall aesthetic.

Symptoms of a damaged fridge front pan include:

• Visible cracks or breaks in the pan.
• Difficulty in sliding the pan in and out or fitting it securely.
• Sagging or warping, especially under the weight of stored items.
• The pan becomes loose or dislodges easily.
• Reduced effectiveness in organizing and storing food items.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


Replacement housing assembly that secures internal components and restores structural support and alignment. Installs in the appliance to protect parts from debris and damage while helping reduce vibration and rattling caused by loose or broken housings. What it does:

• Provides a mounting surface and enclosure for internal components to keep them properly aligned.
• Protects parts from debris and accidental contact that can cause damage or electrical shorts.
• Helps reduce noise and vibration by stabilizing moving parts and maintaining correct clearances.
• A cracked or damaged housing can cause rattling, loose or misaligned components, and decreased performance.

• Disconnect power (and water/gas if applicable) before beginning any repair.
• Handle carefully; edges may be sharp. Use basic hand tools and keep fasteners organized.
• Follow the appliance manufacturer's service instructions for removal and replacement.

This crisper drawer roller guide mounts to the refrigerator shelf/frame and forms the track the drawer's roller rides in. Replacing a worn guide restores smooth, aligned drawer movement and helps prevent the crisper from sticking or coming off track.

• Guides and supports the crisper drawer roller to keep the drawer on its track
• Helps the drawer open and close smoothly and evenly
• Common symptoms of a failed guide: drawer sticks, tilts, wobbles, or pops off track
• Physical damage or wear to the guide can impede drawer travel

• Disconnect power and remove the crisper drawer and shelf/glass for access.
• Locate the damaged guide; release its locking tabs or remove the retaining screw(s).
• Align the new guide in the same orientation and secure it without overtightening.
• Reinstall the shelf and drawer; verify smooth drawer operation.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation
